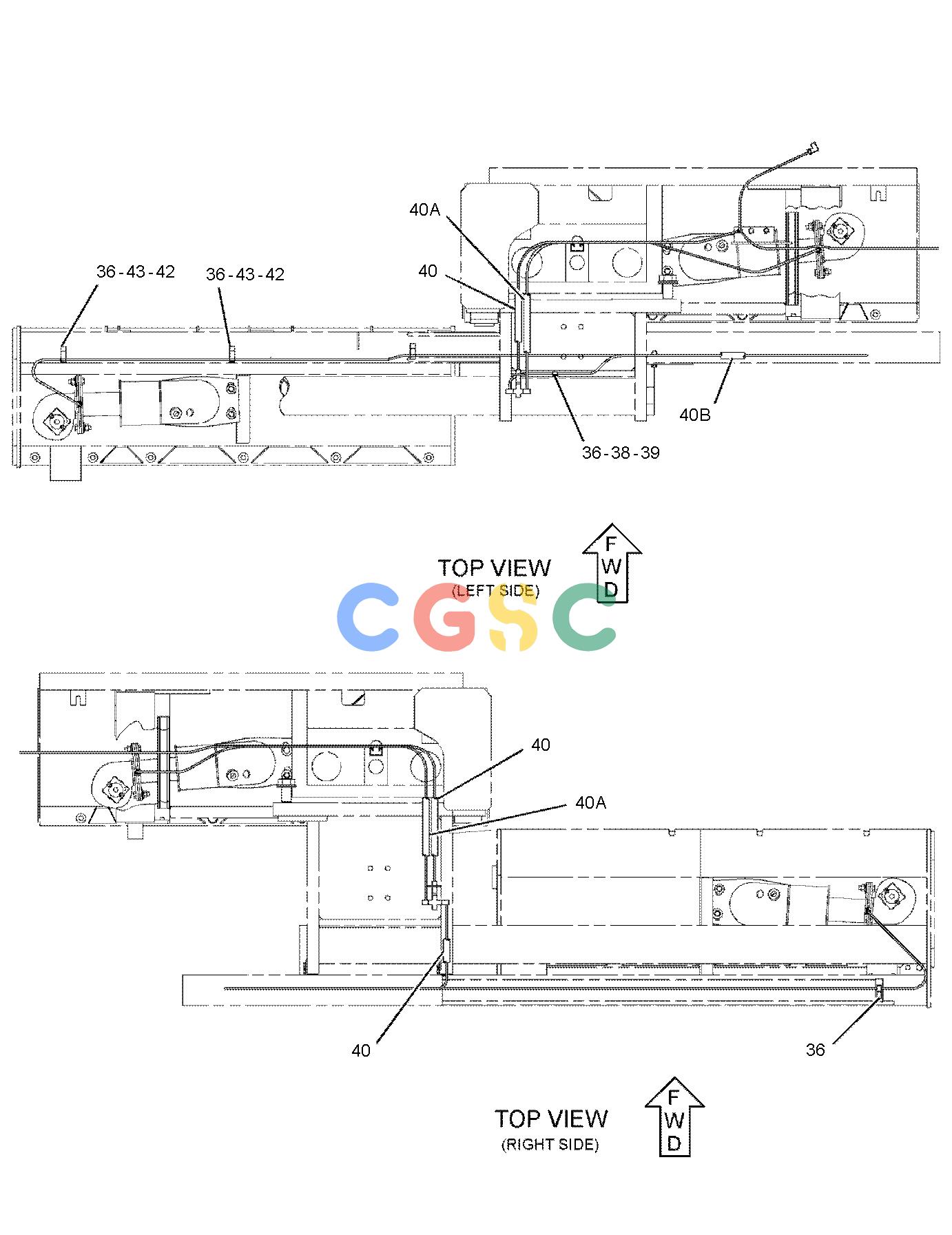

卡特零件查询（8） 103-0757: LINES GP-BURNER
广数供应链运营团队, 17 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5R-6307 | [1] | COUPLER AS-QUICK DISCONNECT(FEMALE) | |
| | 1H-8171 | [1] | SEAL-O-RING | |
| | 5R-6859 | [1] | RETAINER | |
| 2. | 5R-6301 | [1] | PLUG-DUST | |
| 3. | 3K-0360 | [3] | SEAL-O-RING | |
| 4. | 6V-8634 | [1] | CONNECTOR | |
| 5. | 6V-8397 | [21] | SEAL-O-RING | |
| 6. | 116-8208I | [1] | HOSE AS | |
| 7. | 7X-0820 | [1] | TEE | |
| 8. | 6V-9168 | [3] | NUT(11/16-16-THD) | |
| 9. | 8I-0709I | [2] | HOSE AS | |
| 10. | 8I-0710I | [1] | HOSE AS | |
| 11. | 5P-4653 | [2] | CONNECTOR | |
| 12. | 2P-1279 | [2] | LOCKNUT(9/16-18-THD) | |
| 13. | 5P-8998 | [6] | FITTING | |
| 14. | 7B-0192 | [2] | CONNECTOR | |
| 15. | 8I-0400 | [2] | ADAPTER | |
| 16. | 5P-4317 | [2] | CONNECTOR | |
| 17. | 3J-1907 | [2] | SEAL-O-RING | |
| 18. | 5P-6944 | [2] | ADAPTER | |
| 19. | 5R-6306 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| 20. | 5R-6302 | [2] | CAP-DUST | |
| 21. | 7J-8611 | [4] | ELBOW-PIPE | |
| 22. | 129-3078 | [4] | VALVE AS-SHUTOFF(BURNER) | |
| 23. | 8C-6868 | [6] | CONNECTOR | |
| 24. | 2T-2305 | [2] | ELBOW | |
| 25. | 6V-9850 | [2] | ELBOW | |
| 26. | 8I-0704I | [2] | HOSE AS | |
| 27. | 8I-0705I | [1] | HOSE AS | |
| 28. | 3S-2093 | [3] | STRAP-CABLE | |
| 29. | 6V-8994 | [1] | UNION(STRAIGHT) | |
| 30. | 6V-8980 | [1] | ELBOW | |
| 31. | 8S-7169 | [2] | COUPLING | |
| 32. | 8I-0712I | [1] | HOSE AS | |
| 33. | 8I-0713I | [1] | HOSE AS | |
| 34. | 003-8747 | [2] | ELBOW | |
| 35. | 8C-8988 | [1] | ELBOW | |
| 36. | 8M-2773 | [5] | CLIP(LOOP) | |
| 37. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| 38. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 39. | 6V-8189 | [3] | NUT(5/16-18-THD) | |
| 40. | 160-2244G | | SLEEVE-ABRASION(17.5-IN EACH) | |
| 40A. | 160-2244G | | SLEEVE-ABRASION(21-IN EACH) | |
| 40B. | 160-2244G | | SLEEVE-ABRASION(24-IN) | |
| 40C. | 160-2244G | | SLEEVE-ABRASION(12-IN) | |
| 41. | 077-8184 | [8] | CLAMP | |
| 42. | 6V-8918 | [1] | BOLT(5/16-18X1.25-IN) | |
| 43. | 8T-4122 | [2] | WASHER-HARD(17X32X3.5-MM THK) | |
| 44. | 8T-4994 | [3] | WASHER-HARD(20X36.5X3.5-MM THK) | |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
