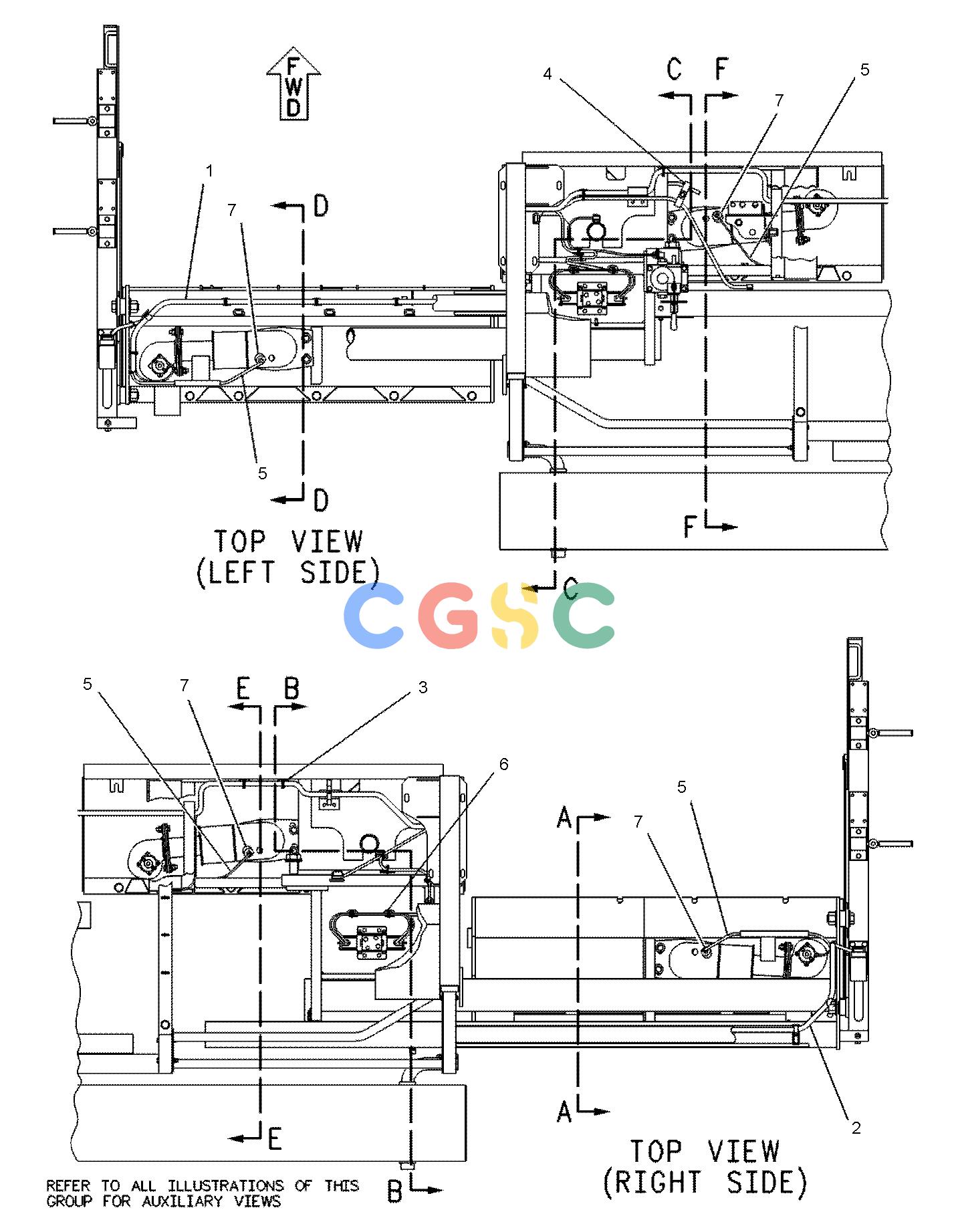

卡特零件查询（8） 106-3439: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
710 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 106-3463 | [1] | CABLE AS | |
| 2. | 106-3465 | [1] | CABLE AS | |
| 3. | 7K-1181B | [33] | STRAP-CABLE | |
| 4. | 8M-2773 | [2] | CLIP(LOOP) | |
| | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 5. | 103-7346 | [4] | WIRE AS | |
| 6. | 3S-2093B | [36] | STRAP-CABLE | |
| 7. | 8T-8013 | [4] | GLOW PLUG(12-VOLT) | |
| 8. | 106-3447 | [1] | HARNESS AS | |
| 9. | 106-3440Y | [1] | BOX GP-SCREED CONTROL(LH) | |
| 10. | 106-3442Y | [1] | BOX GP-SCREED CONTROL(RH) | |
| 11. | 106-3443Y | [2] | BOX GP-EXTENSION | |
| 12. | 7S-1197 | [8] | SCREW-MACHINE(8-32X0.5-IN) | |
| | 4B-4863 | [8] | WASHER(4.7X11X1.2-MM THK) | |
| 13. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| | 2D-6235 | [8] | LOCKNUT(1/4-20-THD) | |
| 14. | 8J-1256 | [5] | CLIP | |
| 15. | 8M-2773 | [10] | CLIP(LOOP) | |
| 16. | 077-8184 | [2] | CLAMP | |
| 17. | 106-3467 | [1] | CABLE AS | |
| 18. | 103-3555 | [1] | CABLE AS | |
| 19. | 103-6163 | [1] | BRACKET AS | |
| 20. | 103-6164 | [1] | BRACKET AS | |
| 21. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 22. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 23. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 24. | 4M-5281 | [4] | BOLT(1/4-20X0.75-IN) | |
| 25. | 7T-0635 | [1] | HORN AS(12-VOLT) | |
| | 6V-5210M | [2] | SCREW-MACHINE(M4X0.7X10-MM) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| 26. | 5M-3062 | [2] | BOLT(3/8-16X0.75-IN) | |
| 27. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 28. | 8T-4012 | [4] | SCREW-HEX SOCKET(1/2-13X1.5-IN) | |
| 29. | 5S-7349 | [2] | BOLT(1/4-20X0.5-IN) | |
| 30. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| 31. | 8T-4896 | [3] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
