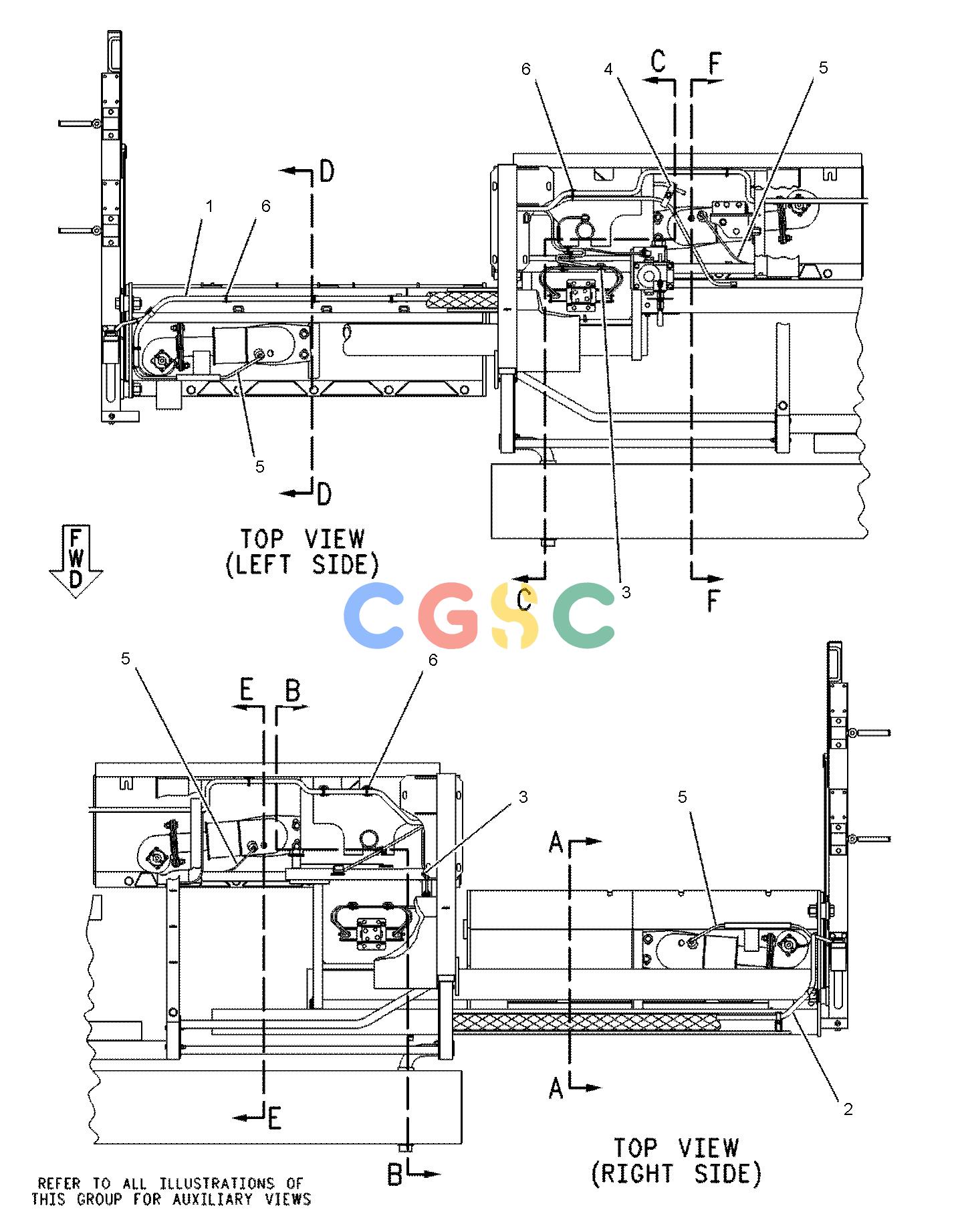

卡特零件查询（8） 8I-0594: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
745 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 103-3568 | [1] | CABLE AS | |
| 2. | 103-3569 | [1] | CABLE AS | |
| 3. | 3S-2093 | [26] | STRAP-CABLE | |
| 4. | 8M-2773 | [2] | CLIP(LOOP)(17.5MM ID) | |
| | 4M-0061 | [1] | BOLT(5/16-18X0.75-IN) | |
| | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 5. | 103-7346 | [4] | WIRE AS | |
| 6. | 7K-1181 | [11] | STRAP-CABLE(4IN DIA) | |
| 7. | 103-3567 | [1] | HARNESS AS-POWER | |
| 8. | 103-3559Y | [1] | BOX GP-SCREED CONTROL(LH) | |
| 9. | 103-3560Y | [1] | BOX GP-SCREED CONTROL(RH) | |
| 10. | 103-3561Y | [1] | BOX GP-EXTENSION | |
| 11. | 103-3562Y | [1] | BOX GP-EXTENSION | |
| 12. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| 13. | 2D-6235 | [8] | LOCKNUT(1/4-20-THD) | |
| 14. | 8T-4205 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 15. | 7S-1197 | [8] | SCREW-MACHINE(8-32X0.5-IN) | |
| 16. | 4B-4863 | [8] | WASHER(4.7X11X1.2-MM THK) | |
| 17. | 8J-1256 | [5] | CLIP | |
| 18. | 8M-2773 | [10] | CLIP(LOOP)(17.5MM ID) | |
| 19. | 077-8184 | [2] | CLAMP | |
| 20. | 103-3556 | [1] | CABLE AS | |
| 21. | 103-3555 | [1] | CABLE AS | |
| 22. | 103-6163 | [1] | BRACKET AS | |
| | 5M-3062 | [1] | BOLT(3/8-16X0.75-IN) | |
| 23. | 103-6164 | [1] | BRACKET AS | |
| 24. | 4M-0061 | [4] | BOLT(5/16-18X0.75-IN) | |
| 25. | 8T-4224 | [6] | WASHER-HARD(8.8X16X2-MM THK) | |
| 26. | 8T-4205 | [6] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 27. | 4M-5281 | [4] | BOLT(1/4-20X0.75-IN) | |
| 28. | 7T-0635 | [1] | HORN AS(12-VOLT) | |
| | 8C-7581M | [2] | SCREW-MACHINE(M4X0.7X8-MM) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| | 8T-4896 | [3] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 29. | 8T-4012 | [2] | SCREW-HEX SOCKET(1/2-13X1.5-IN) | |
| 30. | 7K-1181 | [22] | STRAP-CABLE | |
| 31. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 32. | 5S-7349 | [2] | BOLT(1/4-20X0.5-IN)(1/4-20X.5IN) | |
| 33. | 5M-3062 | [2] | BOLT(3/8-16X0.75-IN) | |
| 34. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
