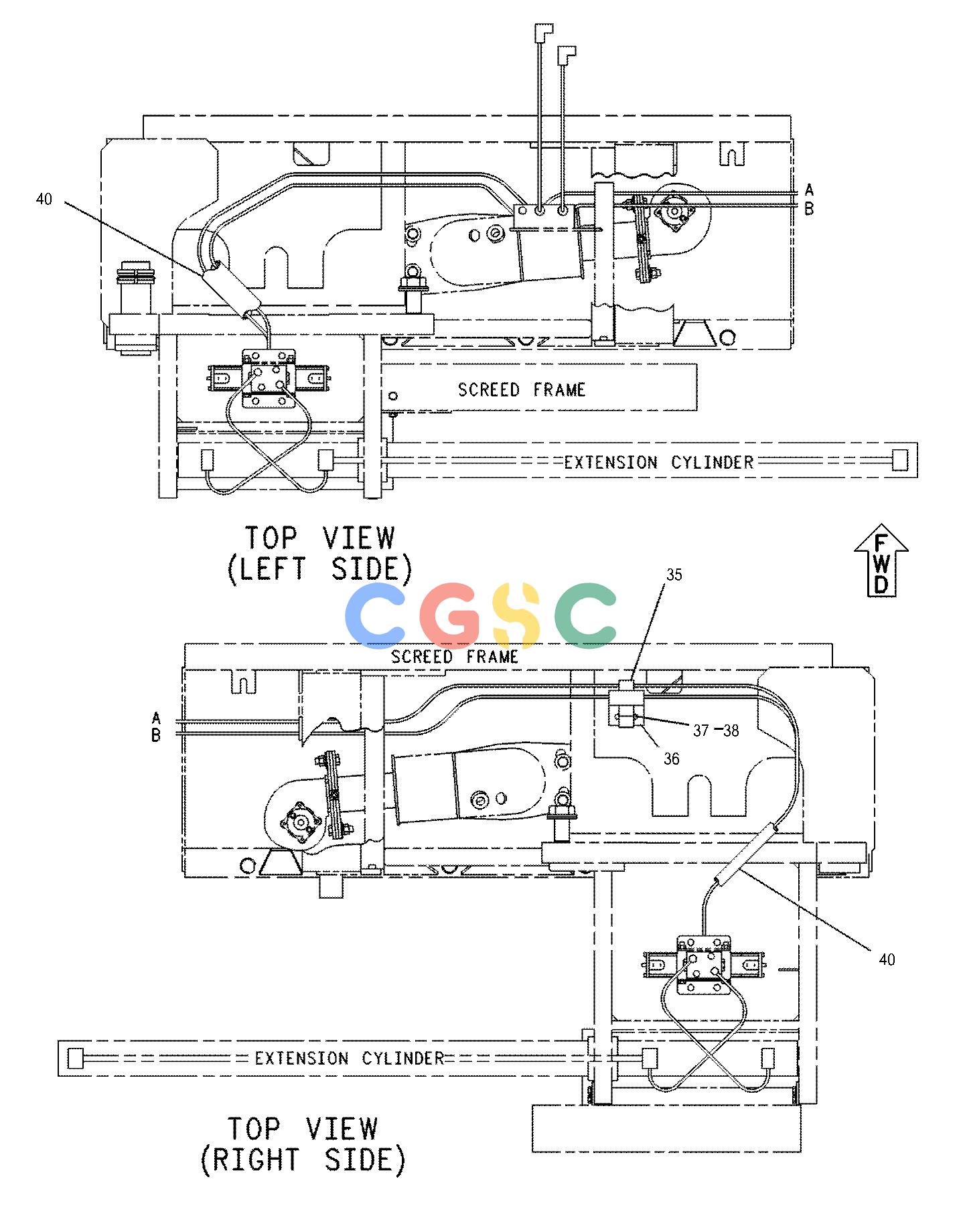

卡特零件查询（8） 8I-0604: LINES GP-EXTENSION
广数供应链运营团队, 17 02月, 2025，浏览：
272 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0400 | [2] | ADAPTER | |
| 2. | 3J-1907 | [8] | SEAL-O-RING | |
| 3. | 6V-8398 | [11] | SEAL-O-RING | |
| 4. | 105-4880I | [2] | HOSE AS | |
| 5. | 8C-8989 | [2] | ELBOW | |
| 6. | 6V-8995 | [2] | UNION(STRAIGHT) | |
| 7. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 8. | 8I-0687I | [1] | HOSE AS | |
| 9. | 8I-0688I | [1] | HOSE AS | |
| 10. | 8I-0699Y | [2] | VALVE GP-SOLENOID(EXTENDER) | |
| 11. | 5P-2228 | [8] | BOLT(1/2-13X1-IN) | |
| 12. | 6V-9851 | [1] | ELBOW | |
| 13. | 6V-8625 | [4] | ELBOW | |
| 14. | 6V-8723 | [4] | ELBOW | |
| 15. | 3K-0360 | [8] | SEAL-O-RING | |
| 16. | 9S-4191 | [4] | PLUG(9/16-18-THD) | |
| 17. | 8I-0684I | [4] | HOSE AS | |
| 18. | 6V-8724 | [4] | ELBOW | |
| 19. | 6V-8397 | [10] | SEAL-O-RING | |
| 20. | 8I-0700Y | [2] | CYLINDER GP-HYDRAULIC | |
| 21. | 8I-0693 | [2] | SUPPORT | |
| 22. | 5P-2566 | [4] | BOLT(1/2-13X1.5-IN) | |
| 23. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 24. | 8I-0694 | [2] | BRACKET AS | |
| 25. | 8I-0695 | [2] | SHIM(6.4-MM THK) | |
| 26. | 8I-0696 | [4] | SHIM(1.5-MM THK) | |
| 27. | 8T-6871 | [6] | BOLT(5/8-11X2.5-IN) | |
| 28. | 8T-4122 | [6] | WASHER-HARD(17X32X3.5-MM THK) | |
| 29. | 7X-0448 | [6] | NUT(5/8-11-THD) | |
| 30. | 8C-8844 | [2] | BOLT(1-8X5-IN) | |
| 31. | 8T-5361 | [2] | WASHER-HARD(28X49X5-MM THK) | |
| 32. | 6V-8190 | [2] | NUT(1-8-THD) | |
| 33. | 8I-0689I | [1] | HOSE AS | |
| 34. | 077-8184 | [4] | CLAMP | |
| 35. | 7R-7907 | [4] | CLAMP | |
| 36. | 7V-5628 | [1] | PLATE | |
| 37. | 7X-0268 | [2] | BOLT(1/4-20X3.5-IN) | |
| 38. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 39. | 160-2244BG | | SLEEVE-ABRASION | |
| 40. | 160-2248BE | | SLEEVE-ABRASION | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
