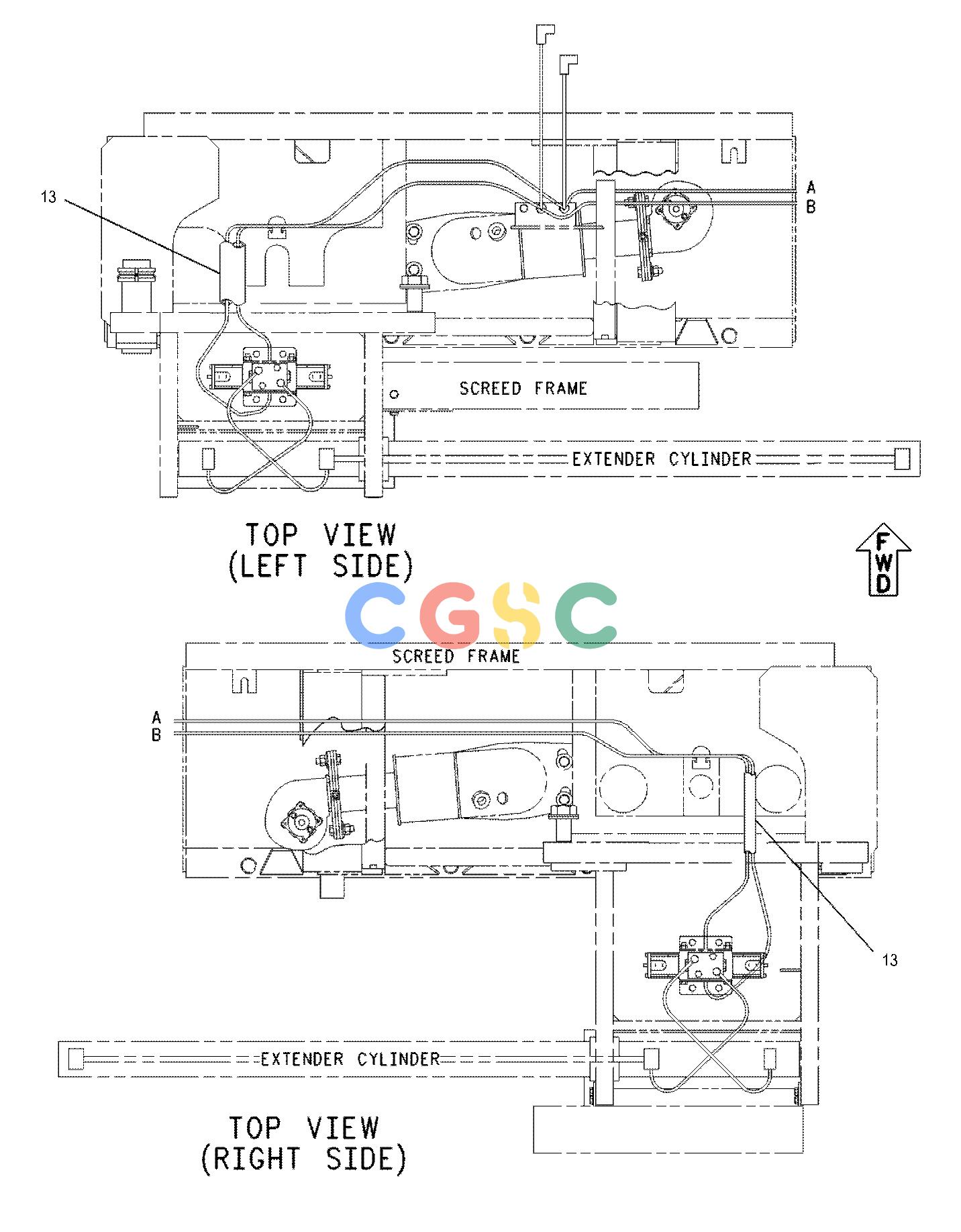

卡特零件查询（8） 8I-0606: LINES GP-EXTENSION
广数供应链运营团队, 17 02月, 2025，浏览：
337 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0400 | [2] | ADAPTER | |
| 2. | 3J-1907 | [12] | SEAL-O-RING | |
| 3. | 6V-8398 | [14] | SEAL-O-RING | |
| 4. | 105-4880I | [2] | HOSE AS | |
| 5. | 8C-8989 | [4] | ELBOW | |
| 6. | 8I-0697 | [4] | SLEEVE-NYLON | |
| 7. | 6V-9169 | [2] | NUT(13/16-16-THD) | |
| 8. | 8T-6895 | [2] | TEE-UNION | |
| 9. | 8I-0687I | [2] | HOSE AS | |
| 10. | 8I-0688I | [2] | HOSE AS | |
| 11. | 8I-0690Y | [2] | VALVE GP-SOLENOID(EXTENDER) | |
| 12. | 5P-2228 | [8] | BOLT(1/2-13X1-IN) | |
| 13. | 105-6609BE | [2] | SLEEVE-NYLON | |
| 14. | 8T-6876 | [2] | ELBOW | |
| 15. | 8C-6987 | [2] | ELBOW AS | |
| 16. | 6V-8723 | [4] | ELBOW | |
| 17. | 3K-0360 | [8] | SEAL-O-RING | |
| 18. | 9S-4185 | [2] | PLUG(3/4-16-THD) | |
| 19. | 9S-4191 | [6] | PLUG(9/16-18-THD) | |
| 20. | 8I-0684I | [4] | HOSE AS | |
| 21. | 6V-8724 | [4] | ELBOW | |
| 22. | 6V-8397 | [10] | SEAL-O-RING | |
| 23. | 8I-0691 | [4] | BRACKET | |
| 24. | 8T-8915 | [4] | BOLT(3/8-16X3.25-IN) | |
| 25. | 8T-4896 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 26. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 27. | 8I-0700Y | [2] | CYLINDER GP-HYDRAULIC | |
| 28. | 8I-0693 | [2] | SUPPORT | |
| 29. | 5P-2566 | [4] | BOLT(1/2-13X1.5-IN) | |
| 30. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 31. | 8I-0694 | [2] | BRACKET AS | |
| 32. | 8I-0695B | [2] | SHIM(6.4-MM THK) | |
| 33. | 8I-0696B | [4] | SHIM(1.5-MM THK) | |
| 34. | 8T-6871 | [6] | BOLT(5/8-11X2.5-IN) | |
| 35. | 8T-4122 | [6] | WASHER-HARD(17X32X3.5-MM THK) | |
| 36. | 7X-0448 | [6] | NUT(5/8-11-THD) | |
| 37. | 8C-8844 | [2] | BOLT(1-8X5-IN) | |
| 38. | 8T-5361 | [2] | WASHER-HARD(28X49X5-MM THK) | |
| 39. | 6V-8190 | [2] | NUT(1-8-THD) | |
| 40. | 077-8184 | [8] | CLAMP | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
