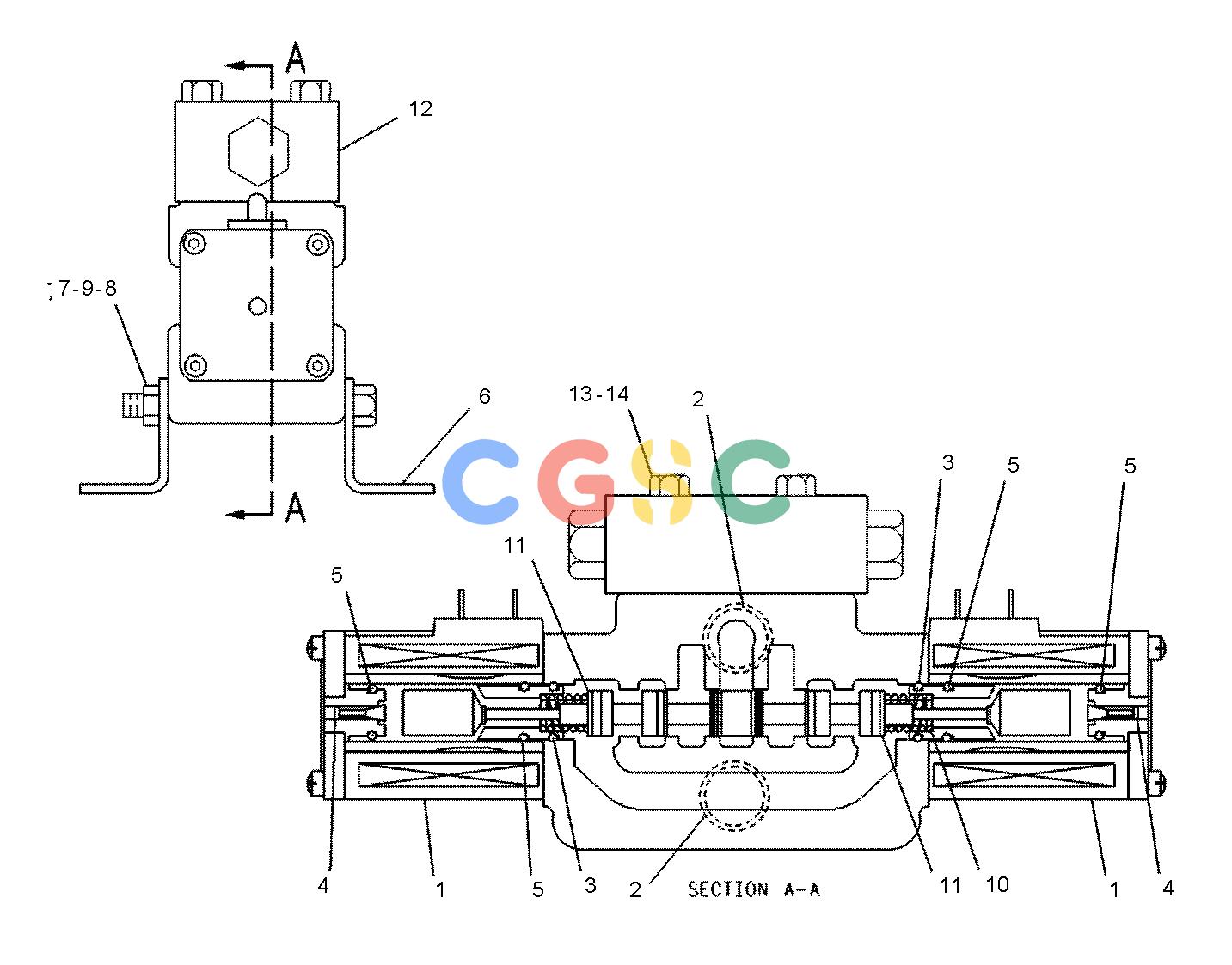

卡特零件查询（8） 8I-0690: VALVE GP-SOLENOID
广数供应链运营团队, 17 02月, 2025，浏览：
294 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 077-4042 | [2] | COIL | |
| 2. | 6V-8399 | [2] | SEAL-O-RING | |
| 3. | 7J-9108 | [2] | SEAL-O-RING | |
| 4. | 9X-7453 | [2] | SEAL-QUAD RING | |
| 5. | 095-1751 | [4] | SEAL-O-RING | |
| 6. | 8I-0691 | [2] | BRACKET | |
| 7. | 8T-9101 | [2] | BOLT(3/8-16X2.75-IN) | |
| 8. | 6V-8801 | [2] | NUT(3/8-16-THD) | |
| 9. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 10. | 106-1503 | [2] | SPRING | |
| 11. | 106-1502 | [2] | WASHER | |
| 12. | 1G-6319Y | [1] | VALVE GP-SOLENOID | |
| 13. | 8C-3121 | [2] | BOLT(5/16-18X1.5-IN) | |
| 14. | 6V-8398 | [2] | SEAL-O-RING | |
| | Y | | SEPARATE ILLUSTRATION |
