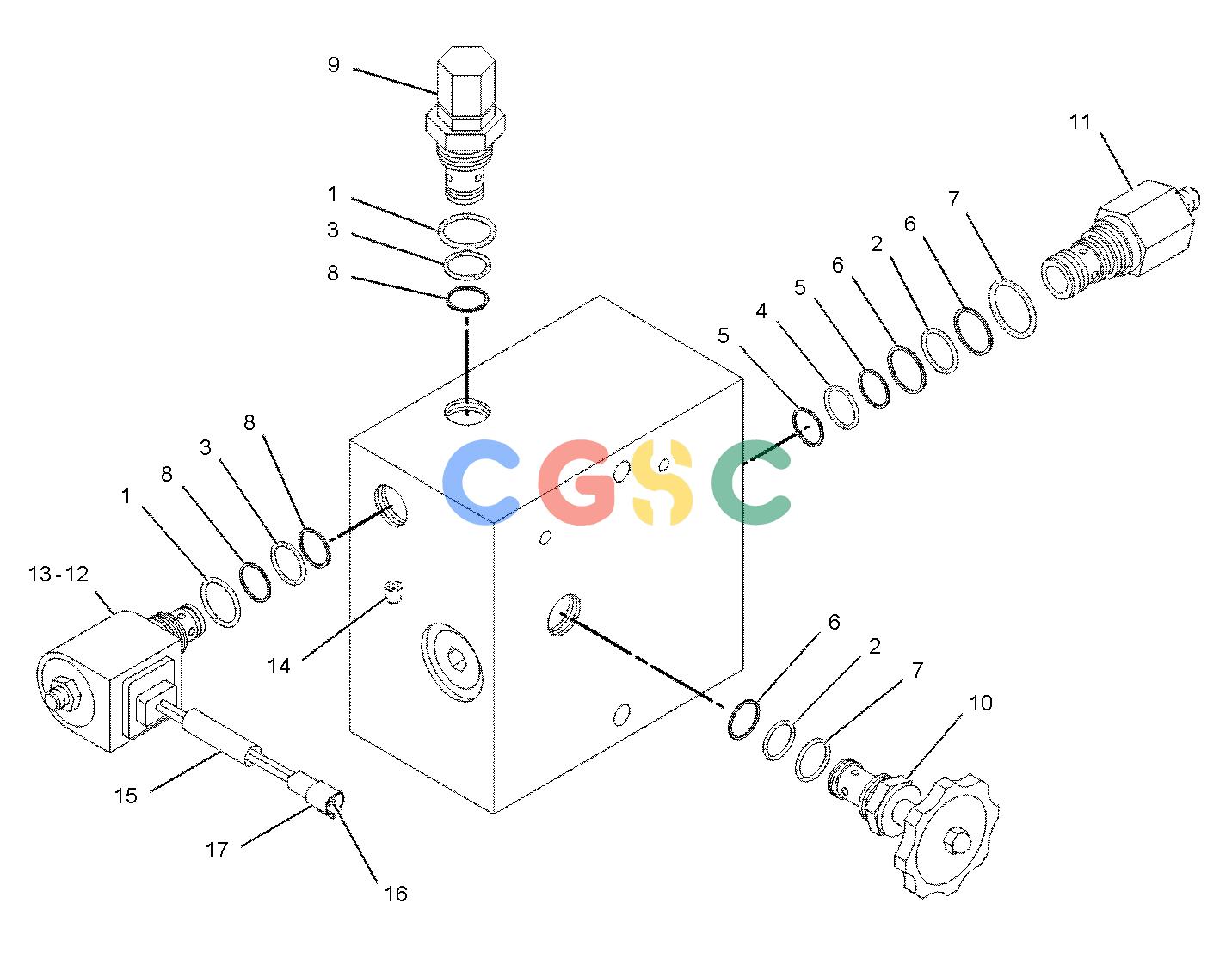

卡特零件查询（8） 130-5123: VALVE GP-VIBRATORY
广数供应链运营团队, 17 02月, 2025，浏览：
915 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2M-9780 | [2] | SEAL-O-RING | |
| 2. | 4D-9986 | [2] | SEAL-O-RING | |
| 3. | 4K-2039 | [2] | SEAL-O-RING | |
| 4. | 4M-8303 | [1] | SEAL-O-RING | |
| 5. | 5P-7857 | [2] | RING-BACKUP | |
| 6. | 5P-7858 | [3] | RING-BACKUP | |
| 7. | 7M-8485 | [2] | SEAL-O-RING | |
| 8. | 7X-4776 | [3] | RING-BACKUP | |
| 9. | 105-6598 | [1] | VALVE-RELIEF | |
| 10. | 105-6599 | [1] | VALVE-FLOW CONTROL(NEEDLE) | |
| 11. | 105-6601 | [1] | VALVE GP-PRESSURE REDUCING | |
| | 155-4649 | [1] | KIT-SEAL(PRESSURE REDUCING VALVE) | |
| 12. | 105-6602 | [1] | VALVE-SOLENOID | |
| 13. | 105-6603 | [1] | COIL | |
| 14. | 102-7521 | [1] | PLUG | |
| 15. | 9X-1813BE | | SLEEVE | |
| 16. | 9W-0852 | [2] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 17. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
