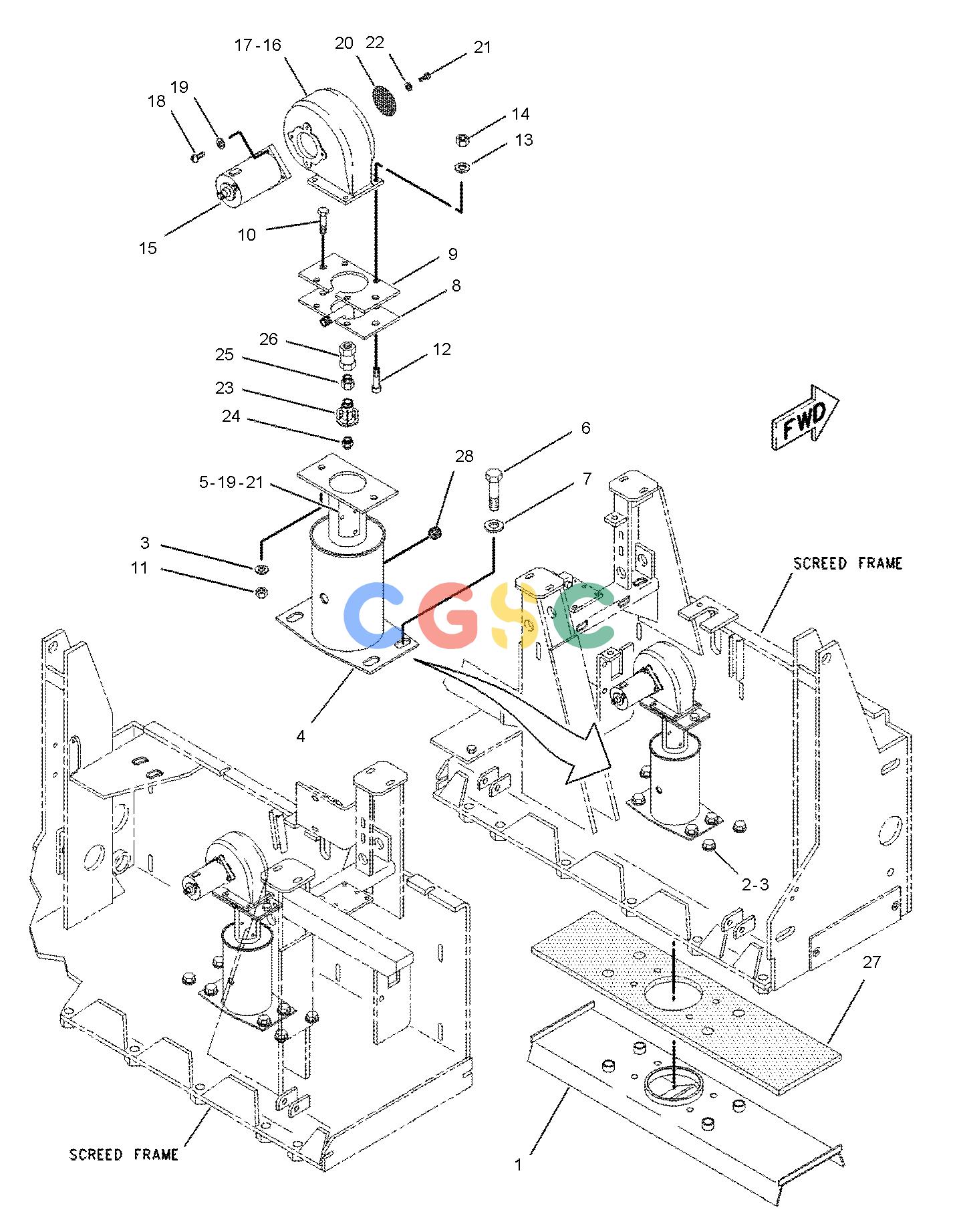

卡特零件查询（8） 110-0999: BURNER GP
广数供应链运营团队, 17 02月, 2025，浏览：
479 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0155 | [2] | CHAMBER AS (LOWER) | |
| 2. | 8T-4835 | [8] | BOLT (1/2-13X2-IN) | |
| 3. | 8T-4223 | [12] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 4. | 110-6218 | [2] | CHAMBER AS-UPPER BURNER | |
| 5. | 8T-8013 | [2] | GLOW PLUG (12-VOLT) | |
| 6. | 8T-8917 | [8] | BOLT (1/2-13X1.25-IN) | |
| 7. | 5P-1076 | [8] | WASHER-HARD (13.5X30X4-MM THK) | |
| 8. | 8I-0997 | [2] | CONNECTOR AS | |
| 9. | 8I-0998 | [2] | BRACKET-MOUNTING | |
| 10. | 5P-2566 | [4] | BOLT (1/2-13X1.5-IN) | |
| 11. | 6V-8188 | [4] | NUT (1/2-13-THD) | |
| 12. | 8M-6802 | [8] | SCREW-HEX SOCKET (1/4-20X1-IN) | |
| 13. | 8T-4205 | [8] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 14. | 6V-8185 | [8] | NUT (1/4-20-THD) | |
| 15. | 103-7347 | [2] | MOTOR AS | |
| 16. | 102-2697 | [2] | WHEEL-BLOWER | |
| 17. | 102-2698 | [2] | HOUSING-BLOWER | |
| 18. | 045-4065 | [8] | SCREW-MACHINE (10-32X0.75-IN) | |
| 19. | 9F-8125 | [8] | LOCKWASHER (EXTERNAL TOOTH) | |
| 20. | 102-2736 | [2] | SCREEN-INLET | |
| 21. | 030-9612 | [4] | SCREW-FORMING (10-24X0.5-IN) | |
| 22. | 4B-4274 | [4] | WASHER (5.5X13X1.2-MM THK) | |
| 23. | 102-2706 | [2] | RING-FLAME | |
| 24. | 102-2688 | [2] | NOZZLE | |
| 25. | 102-2725 | [2] | ADAPTER | |
| 26. | 111-8140 | [2] | VALVE-CHECK | |
| 27. | 8I-0164 | [2] | INSULATION | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH AND RH SIDES |
| | | | |
