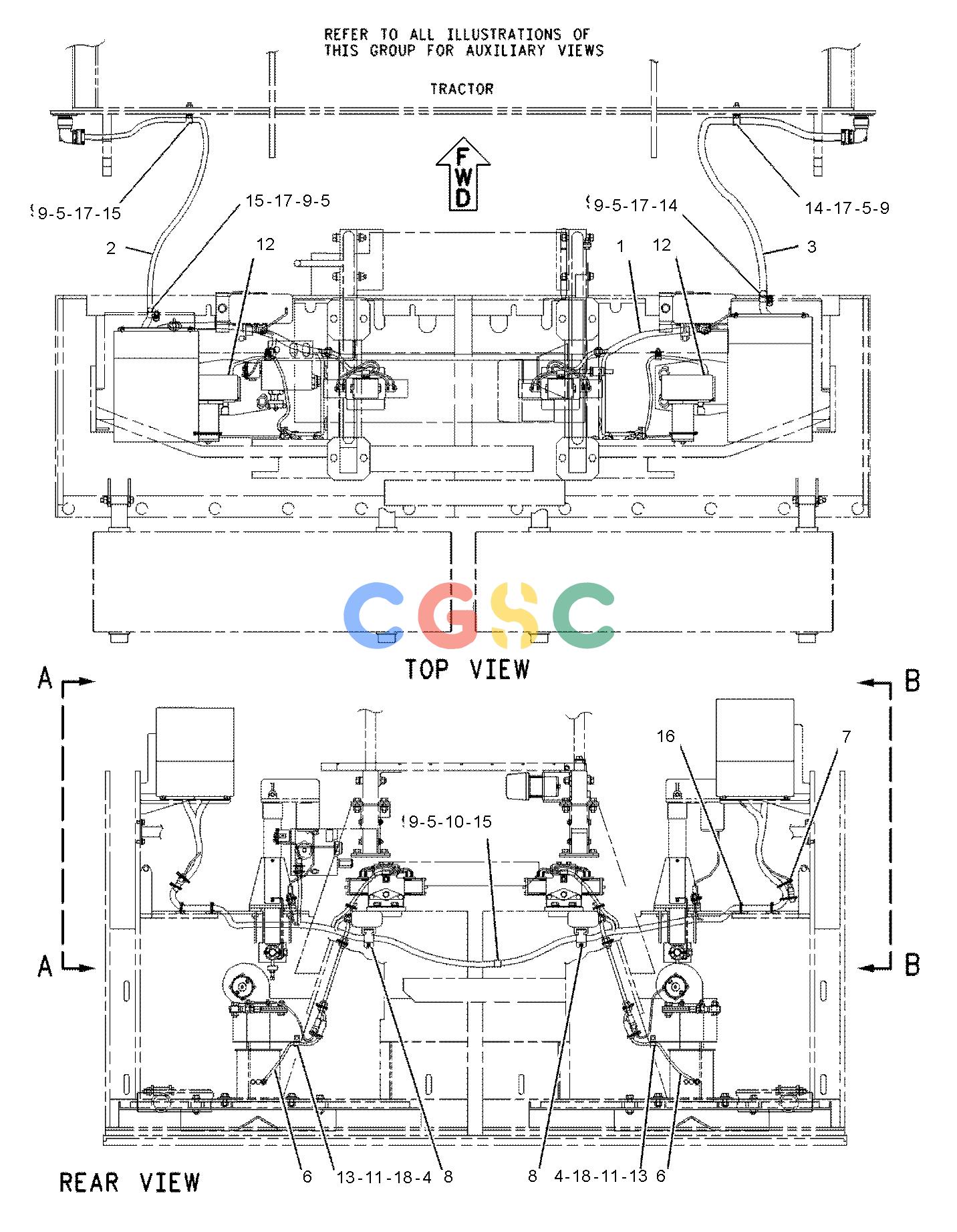

卡特零件查询（8） 110-1536: WIRING GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
521 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 115-5871 | [1] | HARNESS AS-POWER | |
| | 9X-1813BE | | SLEEVE | |
| | 102-8802 | [5] | KIT-RECEPTACLE (2-PIN) | |
| | 155-2270 | [8] | KIT-CONNECTING PLUG (2-PIN) | |
| | 3T-0203 | [2] | PLUG AS-CONNECTOR (20-PIN) | |
| | 6R-0146 | [2] | SEAL-TERMINAL | |
| | 7G-7917 | [11] | PLUG-SEAL | |
| | 7G-7918 | [2] | PLUG-SEAL | |
| | 7G-8238 | [2] | PLUG AS-CONNECTOR | |
| | 7K-1181 | [4] | STRAP-CABLE | |
| | 8N-1535 | [4] | BELL AS-END | |
| | 8T-8737 | [10] | PLUG-SEAL | |
| 2. | 103-3555 | [1] | CABLE AS | |
| 3. | 103-3556 | [1] | CABLE AS | |
| 4. | 4M-5281 | [2] | BOLT (1/4-20X0.75-IN) | |
| 5. | 6V-8189 | [6] | NUT (5/16-18-THD) | |
| 6. | 103-7346 | [2] | WIRE AS | |
| 7. | 3S-2093 | [33] | STRAP-CABLE | |
| 8. | 077-8184 | [2] | CLAMP | |
| 9. | 8T-4224 | [7] | WASHER-HARD (8.8X16X2-MM THK) | |
| 10. | 4M-6425 | [1] | BOLT (5/16-18X1-IN) | |
| 11. | 8T-4205 | [14] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 12. | 8T-8013 | [2] | GLOW PLUG (12-VOLT) | |
| 13. | 2V-3216 | [4] | CLIP | |
| 14. | 7C-4354 | [2] | CLIP | |
| 15. | 8M-2773 | [4] | CLIP | |
| 16. | 7K-1181 | [12] | STRAP-CABLE | |
| 17. | 6V-8918 | [4] | BOLT (5/16-18X1.25-IN) | |
| 18. | 2D-6235 | [10] | LOCKNUT (1/4-20-THD) | |
| 19. | 129-5092Y | [1] | BOX GP-SCREED CONTROL (LH) | |
| 20. | 129-5093Y | [1] | BOX GP-SCREED CONTROL (RH) | |
| 21. | 3V-4694 | [6] | PLUG-BUTTON | |
| 22. | 7T-0635 | [1] | HORN AS (12-VOLT) | |
| | 8C-7581 M | [2] | SCREW-MACHINE (M4X0.7X8-MM) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 23. | 8T-8908 | [8] | BOLT (1/4-20X1-IN) | |
| 24. | 6V-8185 | [2] | NUT (1/4-20-THD) | |
| 25. | 7X-0268 | [2] | BOLT (1/4-20X3.5-IN) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
