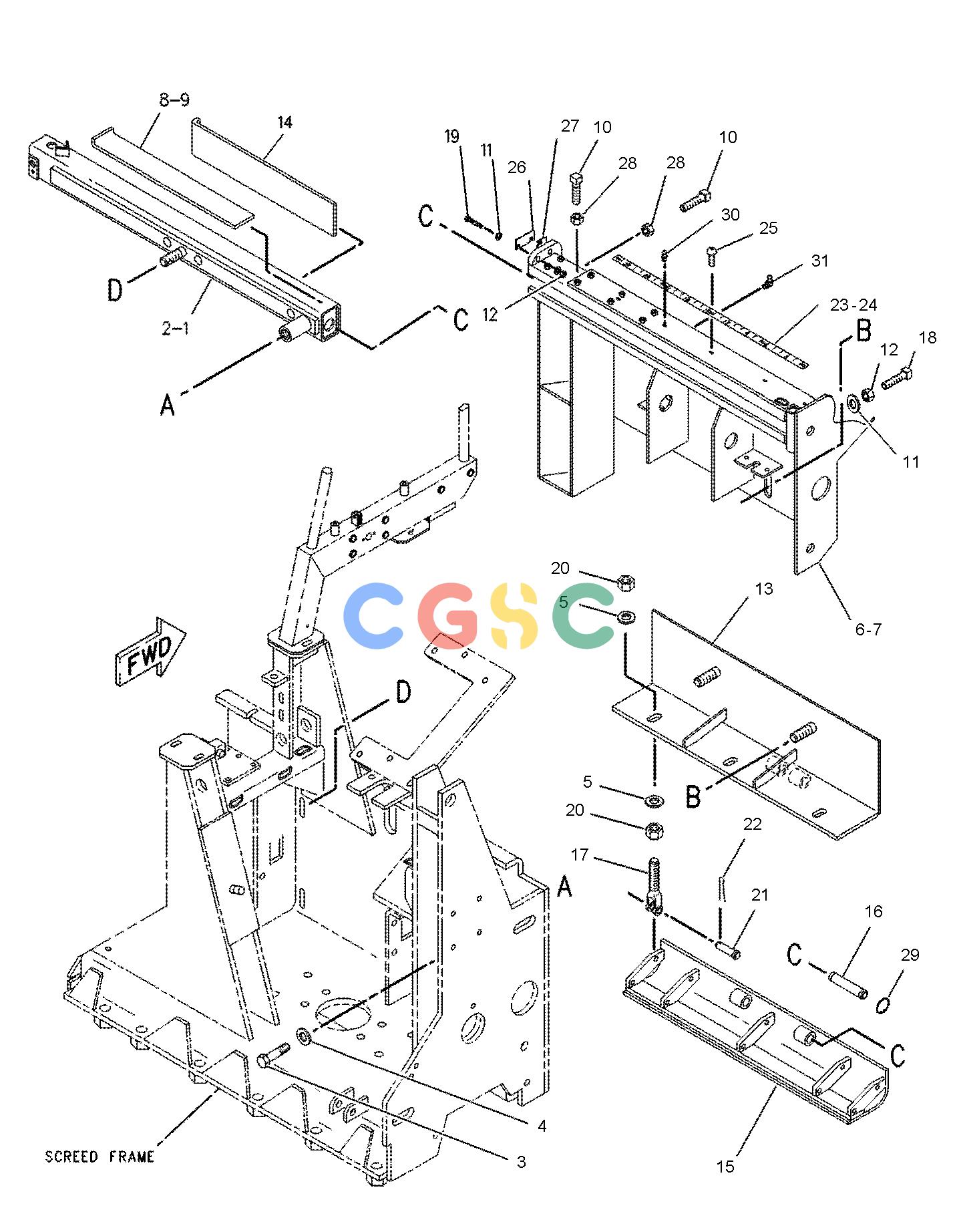

卡特零件查询（8） 115-4475: FRAME GP-STRIKE-OFF
广数供应链运营团队, 17 02月, 2025，浏览：
140 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 140-0338C | [1] | SUPPORT AS (RH) | |
| 2. | 140-0339C | [1] | SUPPORT AS (LH) | |
| 3. | 8T-9397 | [2] | BOLT (3/4-10X1.25-IN) | |
| 4. | 8T-4994 | [2] | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 5. | 5P-1076 | [12] | WASHER-HARD (13.5X30X4-MM THK) | |
| 6. | 133-0417C | [1] | SUPPORT AS (RH) | |
| 7. | 133-0418C | [1] | SUPPORT AS (LH) | |
| 8. | 133-7365C | [1] | PLATE-WEAR (RH) | |
| 9. | 133-7366C | [1] | PLATE-WEAR (LH) | |
| 10. | C | [64] | SETSCREW-SQUARE HEAD |
| 11. | 8T-4896 | [20] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 12. | 6V-8801C | [12] | NUT (3/8-16-THD) | |
| 13. | 121-2946 | [2] | SUPPORT AS | |
| 14. | 133-7367C | [2] | PLATE-WEAR | |
| 15. | 121-2948 | [2] | PLATE AS-STRIKE-OFF | |
| 16. | 112-5304 | [4] | PIN | |
| 17. | 4B-8523 | [6] | ROD-BRAKE CONTROL | |
| 18. | 4L-9337C | [4] | BOLT (3/8-16X1.5-IN) | |
| 19. | 5S-7383C | [8] | BOLT (3/8-16X1.75-IN) | |
| 20. | 1B-4430 | [12] | NUT-JAM (1/2-20-THD) | |
| 21. | 0S-0175 | [6] | PIN-CLEVIS | |
| 22. | 3B-4617 | [6] | PIN-COTTER | |
| 23. | 8I-0323 | [1] | SCALE (29-IN) | |
| 24. | 8I-0325 | [1] | SCALE (29-IN) | |
| 25. | 5D-8412 | [10] | SCREW-ROUND HEAD (8-32X0.5-IN) | |
| 26. | 133-6428C | [2] | PLATE | |
| 27. | 133-6429C | [2] | PLATE | |
| 28. | 1B-2578C | [64] | NUT (3/8-16-THD) | |
| 29. | 5P-6261 | [8] | RING-RETAINING | |
| 30. | 3B-8489 | [2] | FITTING-GREASE | |
| 31. | 3B-8488 | [2] | FITTING-GREASE | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH AND RH SIDES |
| | | | |
| | C | | CHANGE FROM PREVIOUS TYPE |
