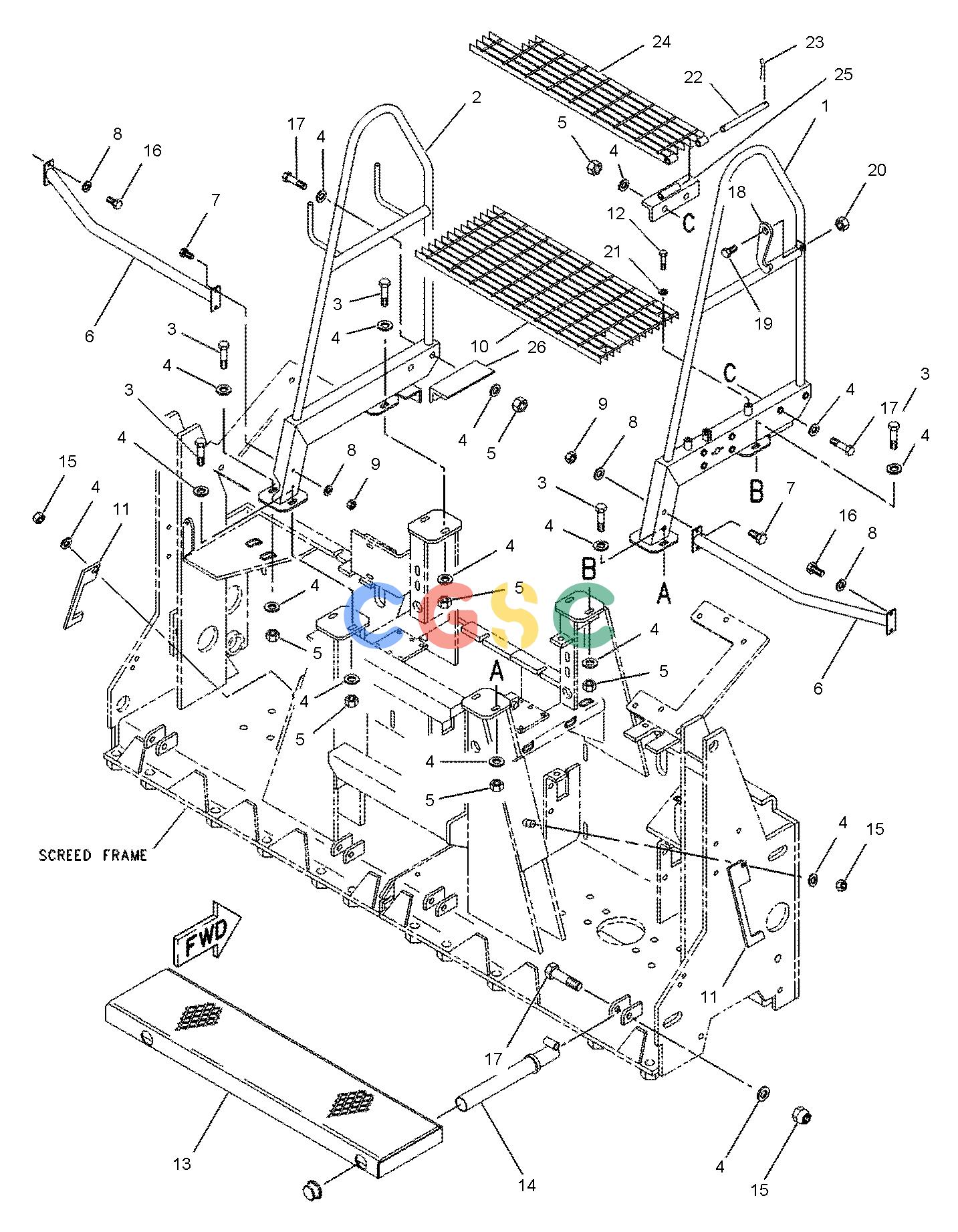

卡特零件查询（8） 110-1527: PLATFORM GP
广数供应链运营团队, 17 02月, 2025，浏览：
193 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 111-3846 | [1] | SUPPORT AS | |
| 2. | 111-3847 | [1] | SUPPORT AS | |
| 3. | 8T-8919 | [8] | BOLT (1/2-13X1.75-IN) | |
| 4. | 8T-4223 | [30] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 5. | 6V-8188 | [12] | NUT (1/2-13-THD) | |
| 6. | 114-4637 | [2] | HANDRAIL AS | |
| 7. | 8T-9101 | [4] | BOLT (3/8-16X2.75-IN) | |
| 8. | 8T-4896 | [8] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 9. | 6V-8801 | [4] | NUT (3/8-16-THD) | |
| 10. | 110-9235 | [1] | PLATFORM AS-TOP | |
| 11. | 119-1756 | [2] | PLATE | |
| 12. | 8T-9383 | [2] | BOLT (1/2-13X0.75-IN) | |
| 13. | 114-4638 | [2] | PLATFORM AS | |
| 14. | 110-6224 | [4] | SUPPORT AS | |
| 15. | 1K-6872 | [6] | LOCKNUT (1/2-13-THD) | |
| 16. | 5M-3062 | [4] | BOLT (3/8-16X0.75-IN) | |
| 17. | 7X-0328 | [8] | BOLT (1/2-13X3.5-IN) | |
| 18. | 8I-0458 | [1] | LOCKOUT | |
| 19. | 4L-6454 | [1] | BOLT (3/8-16X1-IN) | |
| 20. | 2K-4973 | [1] | LOCKNUT (3/8-16-THD) | |
| 21. | 5P-1076 | [2] | WASHER-HARD (13.5X30X4-MM THK) | |
| 22. | 8I-0438 | [1] | PIN | |
| 23. | 3B-4617 | [2] | PIN-COTTER | |
| 24. | 8I-0417 | [1] | PLATFORM AS-TOP | |
| 25. | 8I-0421 | [1] | SUPPORT AS-PLATFORM (RH) | |
| 26. | 8I-0463 | [1] | SUPPORT-PLATFORM (LH) | |
