卡特零件查询（8） 110-0997: VIBRATORY GP
广数供应链运营团队, 17 02月, 2025，浏览：
751 次

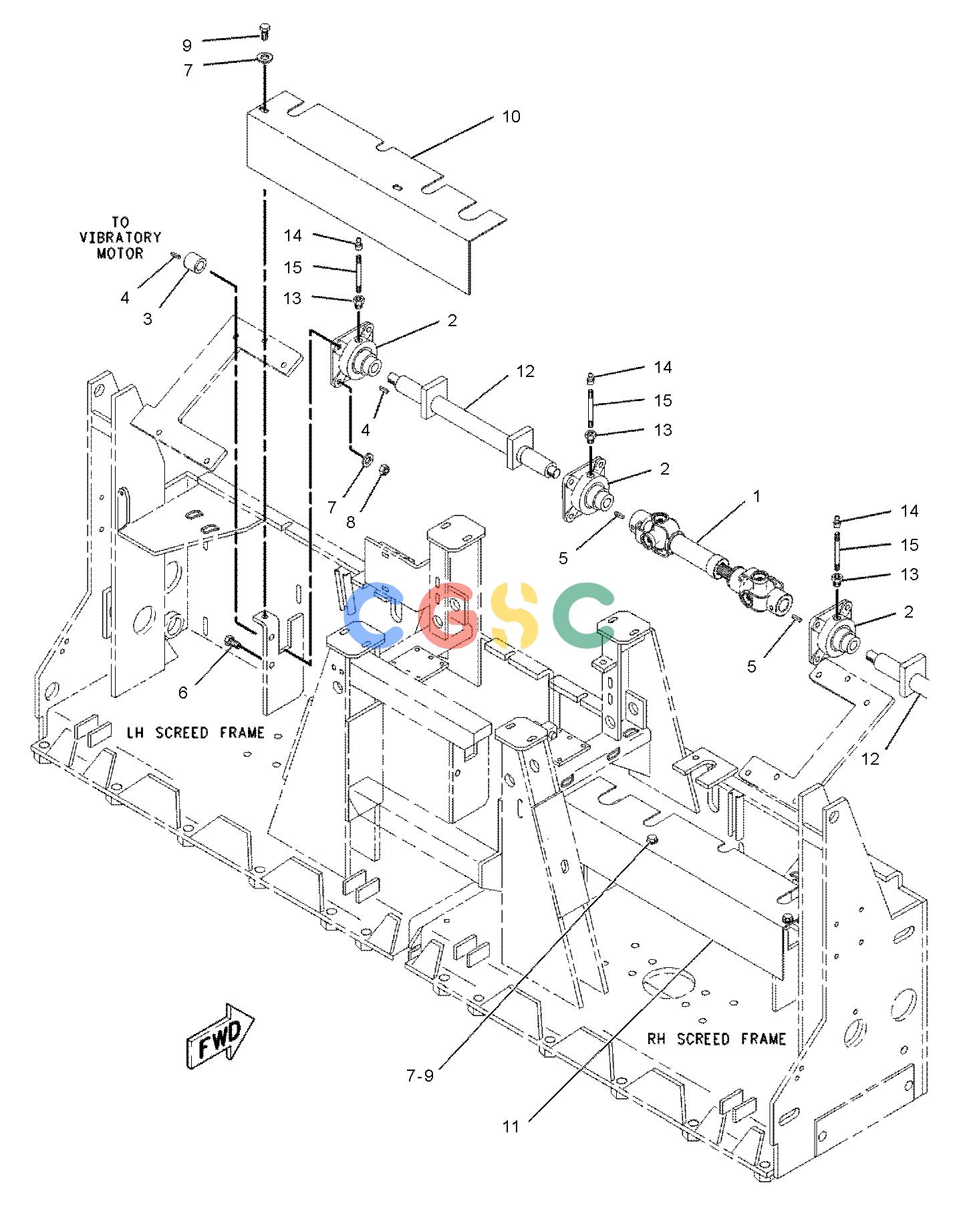

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 112-1276 | [1] | SHAFT GP-DRIVE | |
| 2. | 102-2695 | [4] | BEARING | |
| 3. | 139-2372 | [1] | COUPLING | |
| 4. | 105-1533 | [2] | KEY-SQUARE | |
| 5. | 102-2735 | [2] | KEY-SQUARE | |
| 6. | 5P-2566 | [16] | BOLT (1/2-13X1.5-IN) | |
| 7. | 8T-4223 | [20] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 8. | 6V-8188 | [16] | NUT (1/2-13-THD) | |
| 9. | 5P-2228 | [4] | BOLT (1/2-13X1-IN) | |
| 10. | 8I-0150 | [1] | COVER | |
| 11. | 8I-0151 | [1] | COVER | |
| 12. | 8I-0144 | [2] | SHAFT AS-VIBRATORY | |
| 13. | 8I-0720 | [4] | CONNECTOR | |
| 14. | 5P-9982 | [4] | FITTING-GREASE | |
| 15. | 9S-1812 | [4] | FITTING (NIPPLE-PIPE) | |
