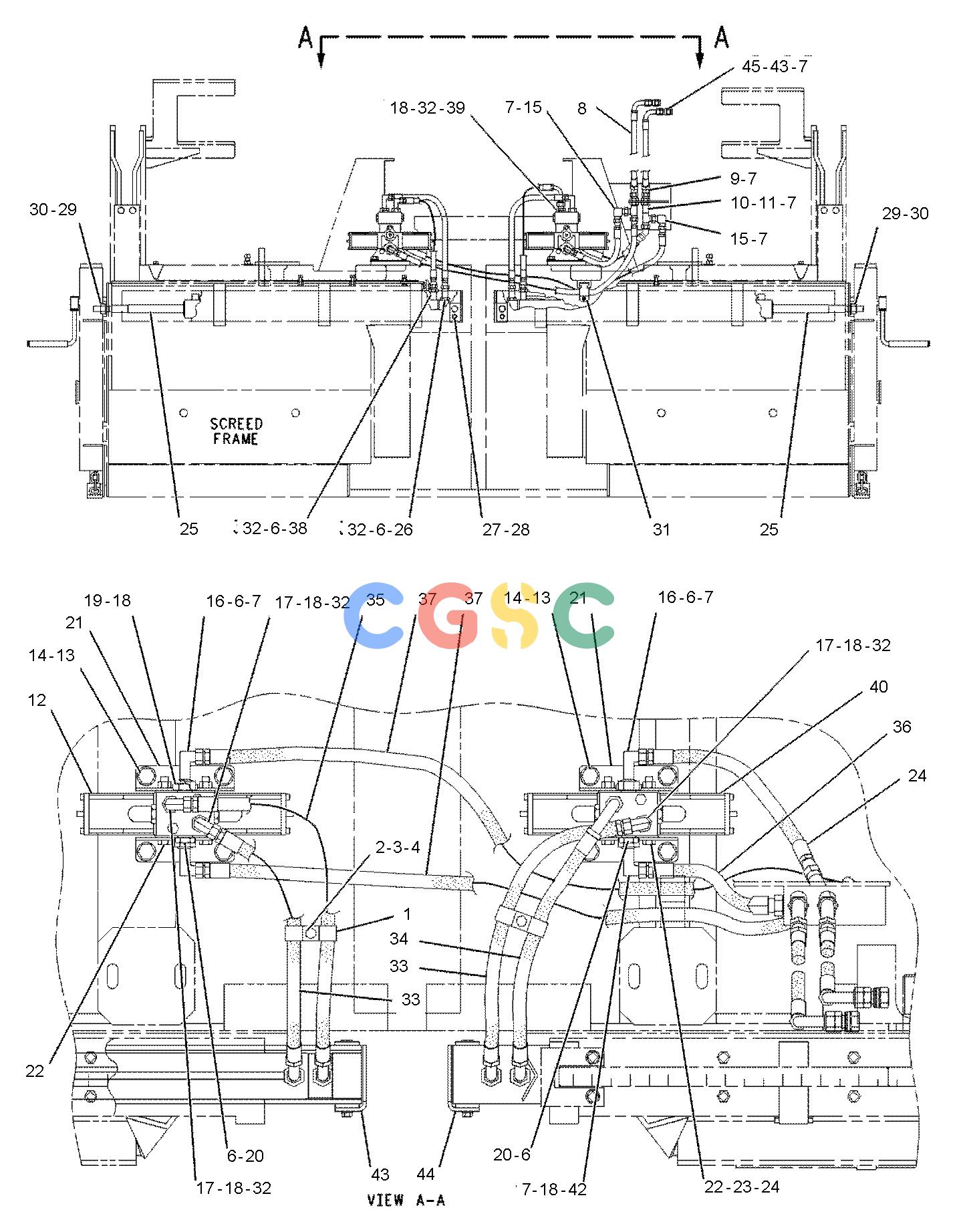

卡特零件查询（8） 115-5735: LINES GP-STRIKE-OFF
广数供应链运营团队, 17 02月, 2025，浏览：
604 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8M-2773 | [4] | CLIP | |
| 2. | 4M-6425 | [2] | BOLT (5/16-18X1-IN) | |
| 3. | 8T-4224 | [4] | WASHER-HARD (8.8X16X2-MM THK) | |
| 4. | 6V-8189 | [2] | NUT (5/16-18-THD) | |
| 5. | 127-6287 | [2] | ELBOW | |
| 6. | 3J-1907 | [8] | SEAL-O-RING | |
| 7. | 6V-8398 | [17] | SEAL-O-RING | |
| 8. | 105-4880 I | [2] | HOSE AS | |
| 9. | 8C-8989 | [3] | ELBOW | |
| 10. | 8T-6895 | [2] | TEE-UNION | |
| 11. | 6V-9169 | [2] | NUT (13/16-16-THD) | |
| 12. | 8I-0690Y | [1] | VALVE GP-SOLENOID (STRIKEOFF-EXHAUST) | |
| 13. | 8T-9383 | [8] | BOLT (1/2-13X0.75-IN) | |
| 14. | 8T-4223 | [8] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 15. | 6V-9851 | [2] | ELBOW | |
| 16. | 8T-6876 | [2] | ELBOW | |
| 17. | 6V-8723 | [5] | ELBOW | |
| 18. | 3K-0360 | [8] | SEAL-O-RING | |
| 19. | 9S-4185 | [2] | PLUG-O-RING | |
| 20. | 9S-4191 | [2] | PLUG-O-RING | |
| 21. | 8I-0691 | [4] | BRACKET | |
| 22. | 8T-8915 | [4] | BOLT (3/8-16X3.25-IN) | |
| 23. | 8T-4896 | [4] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 24. | 6V-8801 | [4] | NUT (3/8-16-THD) | |
| 25. | 115-4480 | [2] | CYLINDER | |
| 26. | 9X-2297 | [2] | CONNECTOR | |
| 27. | 4M-5281 | [2] | BOLT (1/4-20X0.75-IN) | |
| 28. | 8T-4205 | [2] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 29. | 8T-4994 | [2] | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 30. | 6V-8182 | [2] | NUT (3/4-10-THD) | |
| 31. | 077-8184 | [2] | CLAMP | |
| 32. | 6V-8397 | [8] | SEAL-O-RING | |
| 33. | 154-6782 I | [2] | HOSE AS | |
| 34. | 154-6783 I | [1] | HOSE AS | |
| 35. | 154-6784 I | [1] | HOSE AS | |
| 36. | 154-6785 I | [1] | HOSE AS | |
| 37. | 154-6786 I | [2] | HOSE AS | |
| 38. | 6V-8636 | [2] | CONNECTOR | |
| 39. | 6V-8634 | [1] | CONNECTOR | |
| 40. | 8I-0690Y | [1] | VALVE GP-SOLENOID (STRIKEOFF PRESS) | |
| 41. | 9S-8927 | [2] | PLUG | |
| 42. | 154-6787 I | [1] | HOSE AS | |
| 43. | 116-6983 | [1] | COVER AS | |
| 44. | 116-6982 | [1] | COVER AS | |
| 45. | 8I-0400 | [2] | ADAPTER | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
