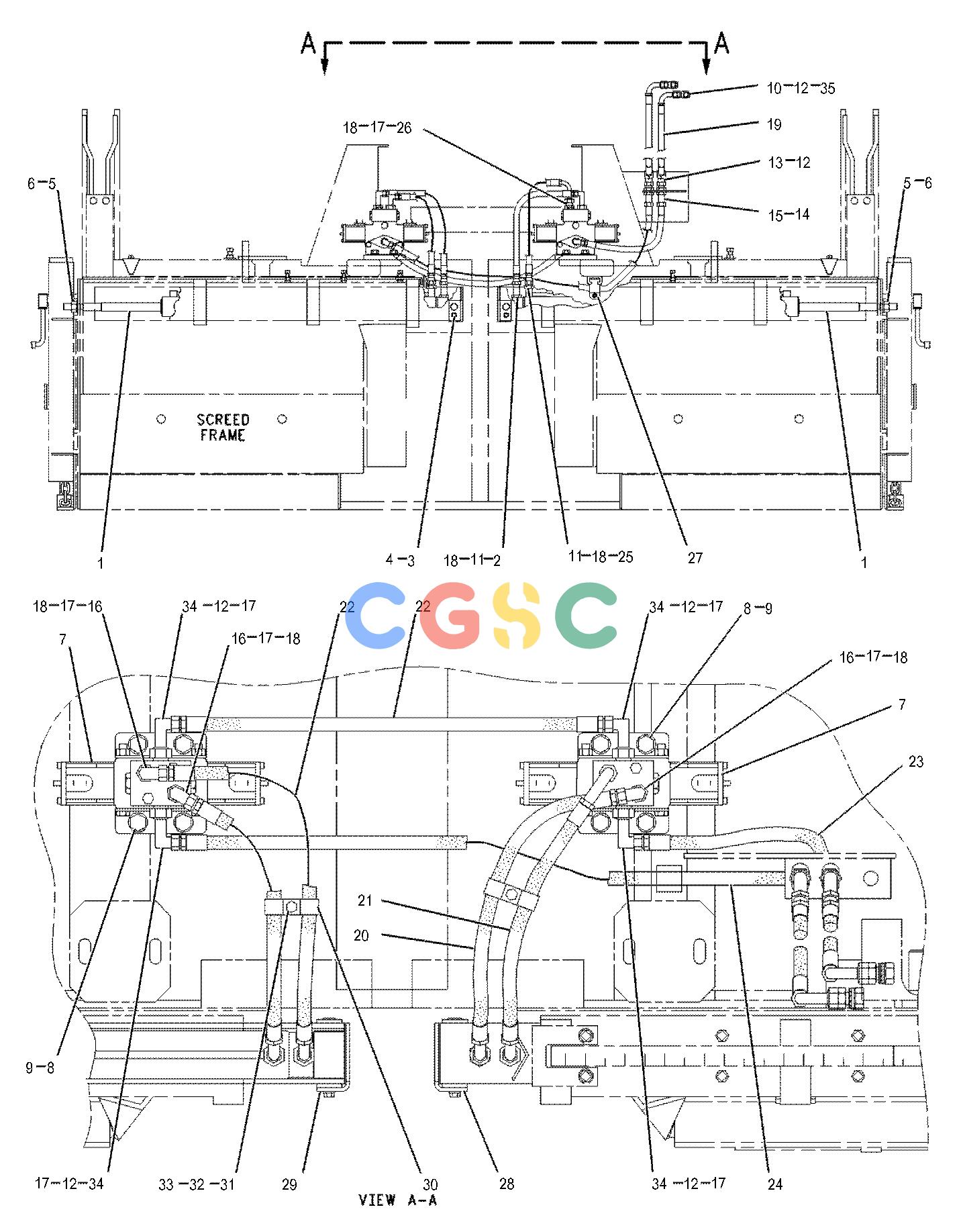

卡特零件查询（8） 115-5736: LINES GP-STRIKE-OFF
广数供应链运营团队, 17 02月, 2025，浏览：
516 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 162-9212C | [2] | CYLINDER GP-HYDRAULIC | |
| 2. | 9X-2297 | [2] | CONNECTOR | |
| 3. | 4M-5281 | [2] | BOLT (1/4-20X0.75-IN) | |
| 4. | 8T-4205 | [2] | WASHER-HARD (7.2X14.5X2-MM THK) | |
| 5. | 8T-4994 | [2] | WASHER-HARD (20X36.5X3.5-MM THK) | |
| 6. | 1K-6870 | [2] | LOCKNUT (3/4-10-THD) | |
| 7. | 128-7011Y | [2] | VALVE GP-SOLENOID (STRIKEOFF EXHAUST) | |
| 8. | 5P-2566 | [8] | BOLT (1/2-13X1.5-IN) | |
| 9. | 8T-4223 | [8] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 10. | 8I-0400 | [2] | ADAPTER | |
| 11. | 3J-1907 | [4] | SEAL-O-RING | |
| 12. | 6V-8398 | [8] | SEAL-O-RING | |
| 13. | 8C-8989 | [2] | ELBOW | |
| 14. | 6V-8995 | [2] | UNION | |
| 15. | 6V-9169 | [2] | NUT (13/16-16-THD) | |
| 16. | 6V-8723 | [3] | ELBOW | |
| 17. | 3K-0360 | [8] | SEAL-O-RING | |
| 18. | 6V-8397 | [8] | SEAL-O-RING | |
| 19. | 154-6775 I | [2] | HOSE AS | |
| 20. | 154-6782 I | [2] | HOSE AS | |
| 21. | 154-6783 I | [1] | HOSE AS | |
| 22. | 154-6784 I | [2] | HOSE AS | |
| 23. | 154-6785 I | [1] | HOSE AS | |
| 24. | 154-6786 I | [1] | HOSE AS | |
| 25. | 6V-8636 | [2] | CONNECTOR | |
| 26. | 6V-8634 | [1] | CONNECTOR | |
| 27. | 5E-9375 | [1] | CLAMP | |
| 28. | 116-6982 | [1] | COVER AS | |
| 29. | 116-6983 | [1] | COVER AS | |
| 30. | 8M-2773 | [4] | CLIP | |
| 31. | 4M-6425 | [2] | BOLT (5/16-18X1-IN) | |
| 32. | 8T-4224 | [4] | WASHER-HARD (8.8X16X2-MM THK) | |
| 33. | 6V-8189 | [2] | NUT (5/16-18-THD) | |
| 34. | 6V-8625 | [4] | ELBOW | |
| 35. | 9S-8927 | [2] | PLUG | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | Y | | SEPARATE ILLUSTRATION |
