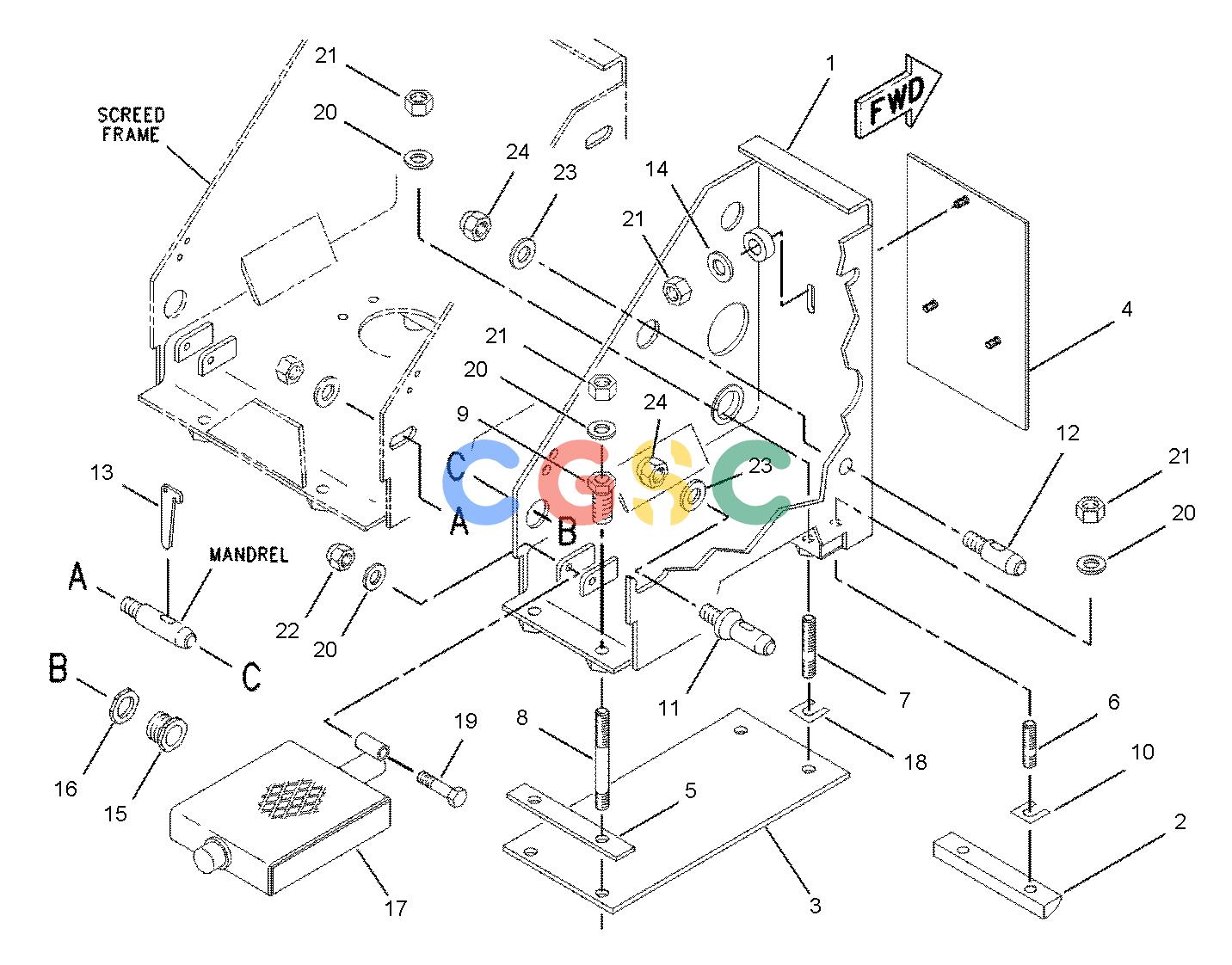

卡特零件查询（8） 154-6709: EXTENSION GP-SCREED
广数供应链运营团队, 17 02月, 2025，浏览：
1021 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 154-6710 | [1] | FRAME AS | |
| | 1A-4168 | [2] | NUT (1-1/4-12-THD) | |
| | 8I-0130 | [2] | SPACER | |
| 2. | 8I-0182 | [1] | BAR-NOSE | |
| 3. | 102-2722 | [1] | PLATE | |
| 4. | 131-7181 | [1] | PLATE AS-DEFLECT | |
| | 5P-0495 | [3] | STUD-WELD (1/2-13X1.375-IN) | |
| 5. | 102-2732 | [1] | BAR-SPACER | |
| 6. | 8I-0189 | [2] | STUD (1/2-13X1.75-IN) | |
| 7. | 8I-0185 | [2] | STUD (1/2-13X2.75-IN) | |
| 8. | 8I-0212 | [2] | STUD (1/2-13X5-IN) | |
| 9. | 8I-0184 | [2] | NUT-ADJUSTMENT (1-1/4-12-THD) | |
| 10. | 8I-0889BG | | SHIM (0.02-IN THK) | |
| 11. | 8C-7099 | [2] | MANDREL | |
| 12. | 8C-7100 | [1] | MANDREL | |
| 13. | 8C-7215 | [3] | PIN | |
| 14. | 5P-1076 | [3] | WASHER-HARD (13.5X30X4-MM THK) | |
| 15. | 8C-7102 | [2] | NUT (ECCENTRIC) | |
| 16. | 8C-7103 | [2] | NUT-JAM (2.350-18-THD) | |
| 17. | 117-8345 | [1] | PLATFORM AS-EXTENSION | |
| | 8F-7800 | [1] | CAP-PIPE | |
| | 102-2838 | [1] | COLLAR | |
| 18. | 129-8817BG | | SHIM (0.02-IN THK) | |
| 19. | 7X-0328 | [1] | BOLT (1/2-13X3.5-IN) | |
| 20. | 8T-4223 | [7] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 21. | 6V-8188 | [9] | NUT (1/2-13-THD) | |
| 22. | 1K-6872 | [1] | LOCKNUT (1/2-13-THD) | |
| 23. | 8T-5361 | [3] | WASHER-HARD (28X49X5-MM THK) | |
| 24. | 6K-3632 | [3] | LOCKNUT (1-8-THD) | |
| | B | | USE AS REQUIRED |
| | G | | ORDER BY THE INCH |
