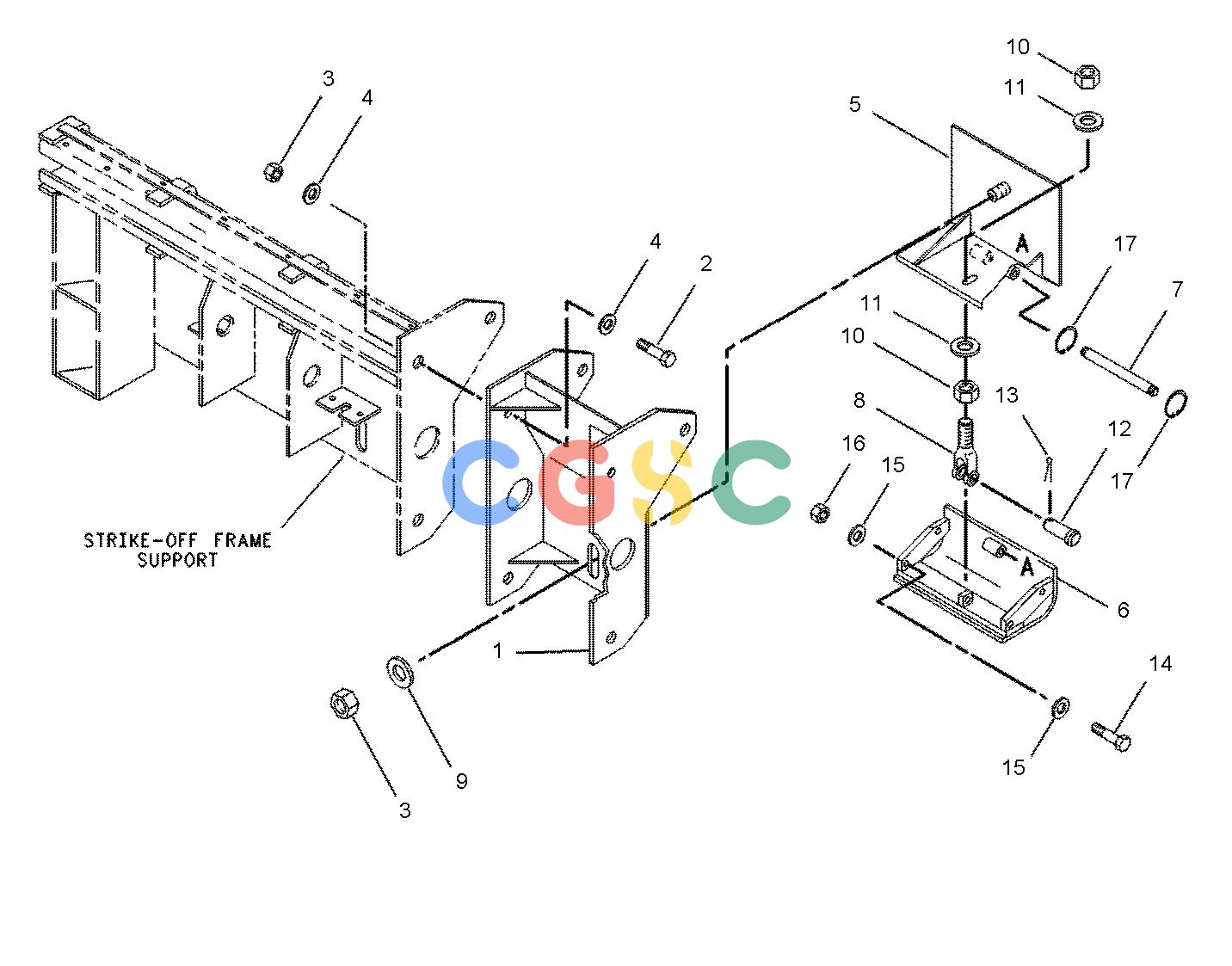

卡特零件查询（8） 114-3455: EXTENSION GP-STRIKE-OFF
广数供应链运营团队, 17 02月, 2025，浏览：
335 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 114-3452 | [2] | SUPPORT AS-EXTENSION | |
| 2. | 7X-0404 | [4] | BOLT (1-8X2.5-IN) | |
| 3. | 6K-3632 | [6] | LOCKNUT (1-8-THD) | |
| 4. | 8T-5361 | [8] | WASHER-HARD (28X49X5-MM THK) | |
| 5. | 114-3449 | [2] | SUPPORT AS-EXTENSION | |
| 6. | 114-3446 | [2] | PLATE AS-EXTENSION | |
| 7. | 112-5304 | [2] | PIN | |
| 8. | 4B-8523 | [2] | ROD-BRAKE CONTROL | |
| 9. | 7X-0616 | [2] | WASHER-HARD (28X57X6-MM THK) | |
| 10. | 1B-4430 | [4] | NUT-JAM (1/2-20-THD) | |
| 11. | 5P-1076 | [4] | WASHER-HARD (13.5X30X4-MM THK) | |
| 12. | 0S-0175 | [2] | PIN-CLEVIS | |
| 13. | 3B-4617 | [2] | PIN-COTTER | |
| 14. | 5S-7383 | [4] | BOLT (3/8-16X1.75-IN) | |
| 15. | 8T-4896 | [8] | WASHER-HARD (10.2X18.5X2.5-MM THK) | |
| 16. | 6V-8801 | [4] | NUT (3/8-16 THD) | |
| 17. | 5P-6261 | [4] | RING-RETAINING | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH AND RH SIDES |
| | | | |
