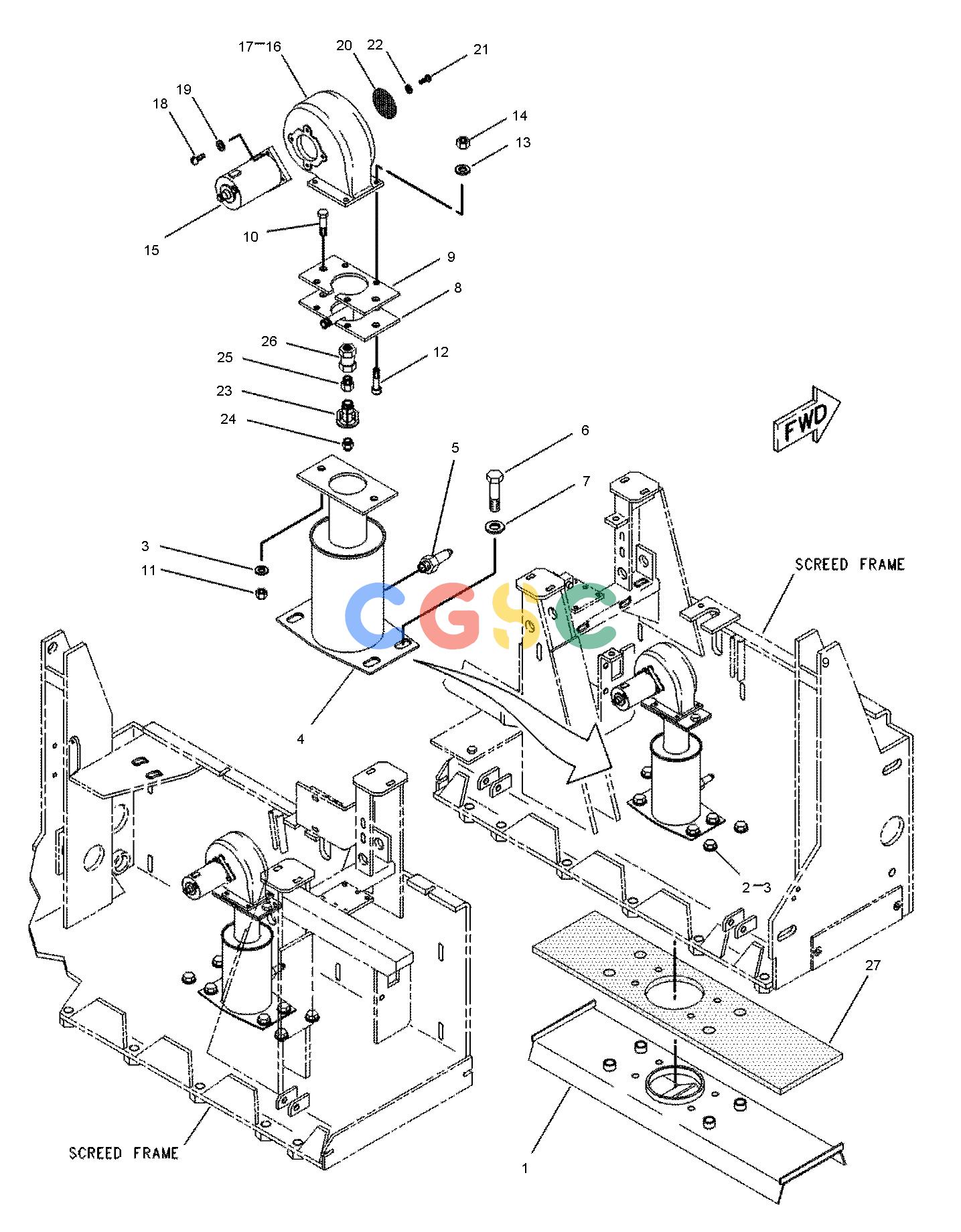

卡特零件查询（8） 109-7067: SCREED AR-FIXED
广数供应链运营团队, 17 02月, 2025，浏览：
294 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | 119-7094Y | [1] | ARM GP-DROP | |
| | | | -OR- |
| | 134-1722Y | [1] | ARM GP-DROP | |
| | 117-5239Y | [1] | BURNER GP | |
| | 110-1531Y | [1] | CROWN GP | |
| | 110-1529Y | [1] | DEFLECTOR GP | |
| | 110-1534Y | [1] | FINISH GP | |
| | 110-0993Y | [1] | FRAME GP-SCREED(8-FT) | |
| | | | -OR- |
| | 133-7370Y | [1] | FRAME GP-SCREED(8-FT) | |
| | 110-1533Y | [1] | GATE GP-END | |
| | 110-1547Y | [1] | LINES GP-BURNER | |
| | 110-1544Y | [1] | LINES GP-VIBRATORY | |
| | 110-0995Y | [1] | PLATE GP-SCREED | |
| | 110-1527Y | [1] | PLATFORM GP | |
| | 110-0997Y | [1] | VIBRATORY GP | |
| | 110-1538Y | [1] | WIRING GP-SCREED | |
| | Y | | SEPARATE ILLUSTRATION |
