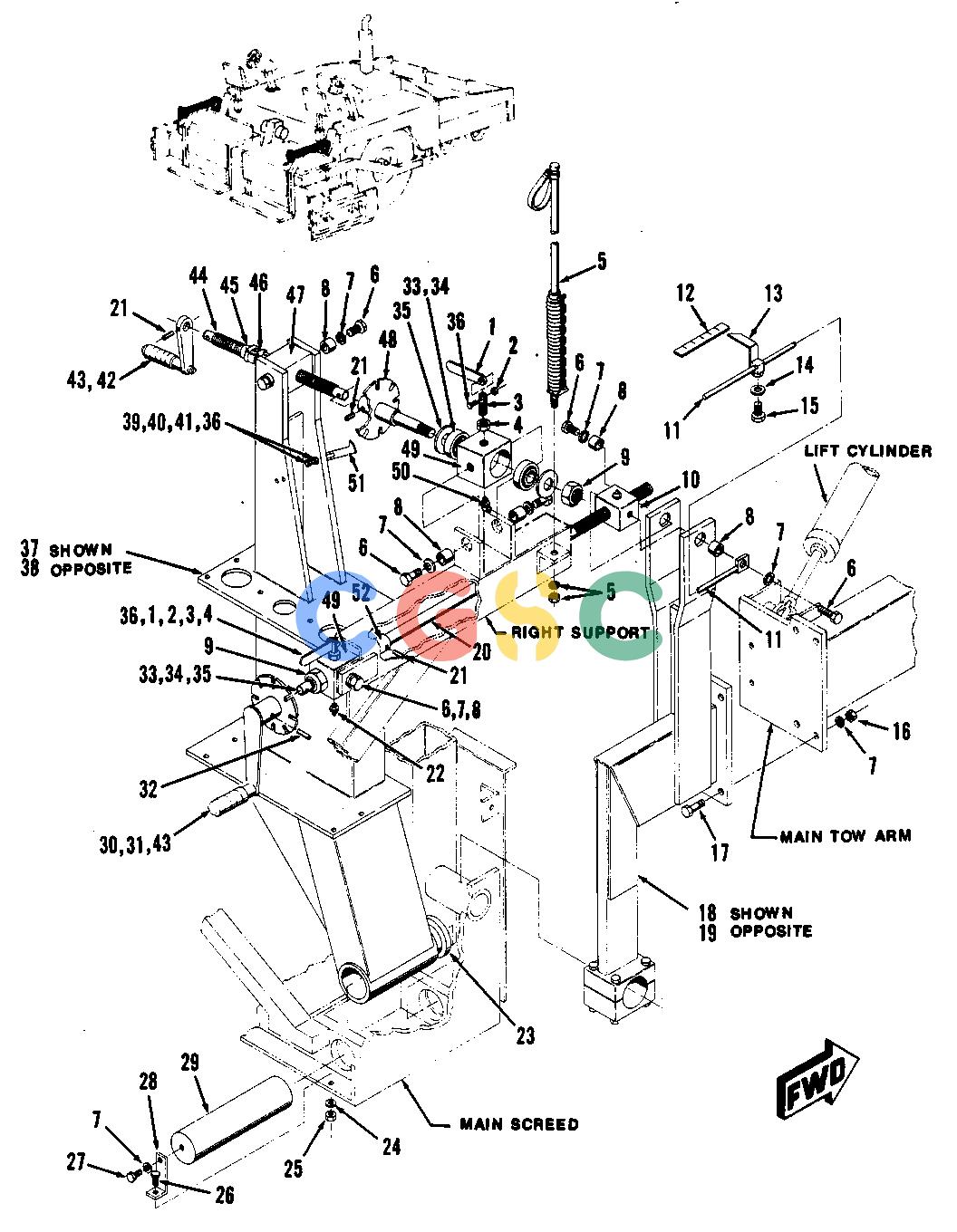

卡特零件查询（8） ADJUSTMENT ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
381 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | | [4] | LOCK |
| 2. | 031-0250 | [4] | LOCKNUT, HEX., 1/4IN.-20 N.C. | |
| 3. | | [4] | LOCK BOLT |
| 4. | | [4] | JAM NUT, HEX., 3/4IN.-10 N.C. |
| 5. | | [2] | POGO-STICK HOSE CARRIER |
| 6. | 0L-1178 | [16] | BOLT, HEX. HD., 3/4IN.-10 N.C. X 2IN. | |
| 7. | 3B-4512 | [26] | LOCKWASHER, 3/4IN. | |
| 8. | | [16] | SPACER |
| 9. | 2H-3791 | [4] | LOCKNUT, HEX., 1IN.-8 N.C. | |
| 10. | | [2] | ADJUSTMENT BLOCK |
| 11. | | [2] | ROD, INDICATOR |
| 12. | | [2] | SCALE |
| 13. | | [2] | BLOCK, INDICATOR |
| 14. | 3B-4506 | [2] | LOCKWASHER, 3/8IN. | |
| 15. | 0S-1594 | [2] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1IN. | |
| 16. | 1B-4331 | [8] | NUT, HEX., 3/4IN.-10 N.C. | |
| 17. | 2A-1538 | [8] | BOLT, HEX. HD., 3/4IN.-10 N.C. X 2 1/4IN. | |
| 18. | | [1] | TOW ARM, RIGHT SIDE |
| 19. | | [1] | TOW ARM, LEFT SIDE |
| 20. | | [2] | SHAFT |
| 21. | | [6] | ROLLED PIN, 3/8IN. DIA. X 1 1/2IN. LG. |
| 22. | | [4] | GREASE FITTING, STR., 1/8IN. N.P.T. |
| 23. | | [2] | SPACER |
| 24. | 3B-4508 | [2] | LOCKWASHER, 1/2IN. | |
| 25. | 1D-4719 | [2] | NUT, HEX., 1/2IN.-13 N.C. | |
| 26. | 0S-1595 | [2] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/4IN. | |
