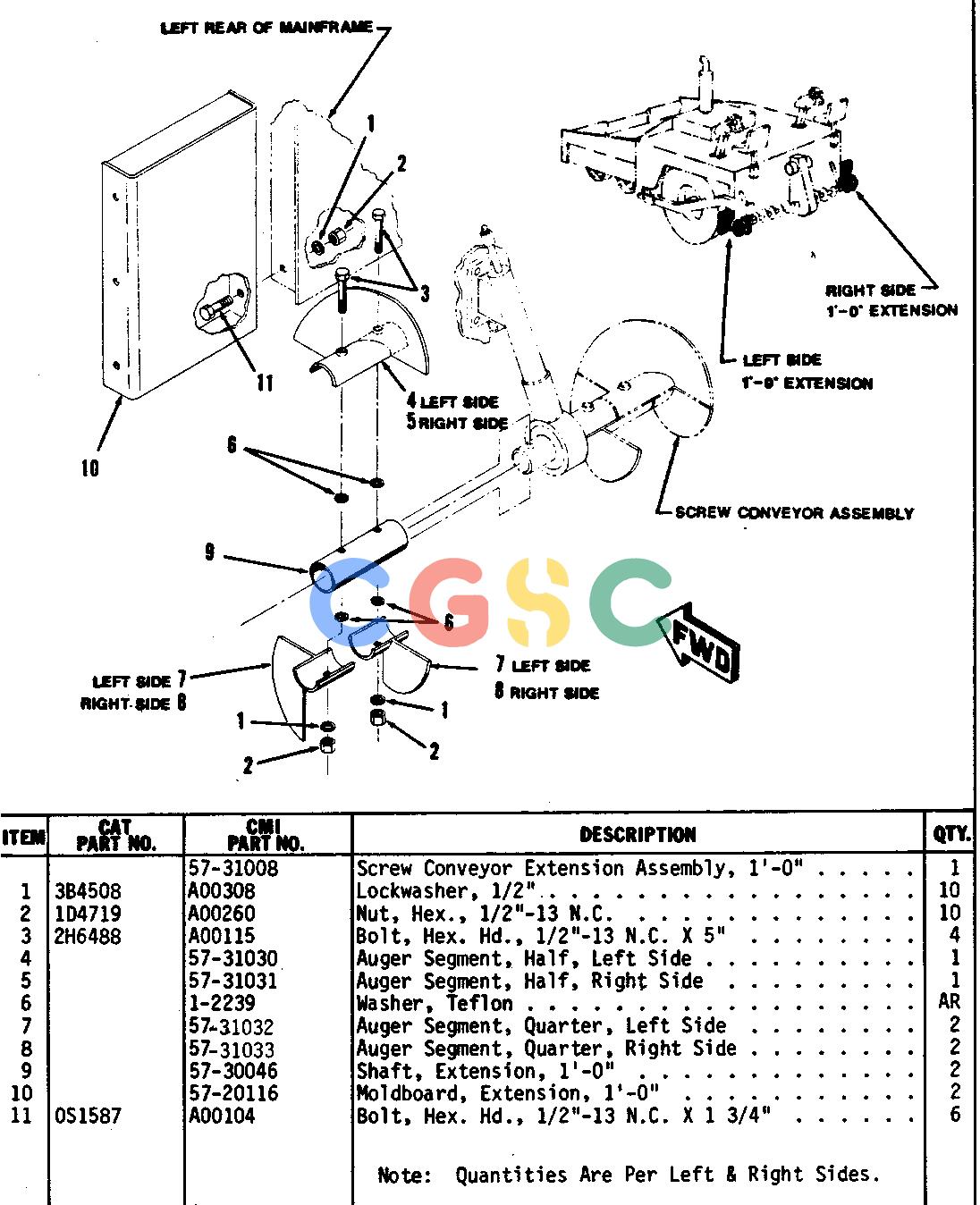

卡特零件查询（8） SCREW CONVEYOR EXTENSION ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
997 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | SCREW CONVEYOR EXTENSION ASSEMBLY, 1FT.-0IN. |
| 1. | 3B-4508 | [10] | LOCKWASHER, 1/2IN. | |
| 2. | 1D-4719 | [10] | NUT, HEX., 1/2IN.-13 N.C. | |
| 3. | 2H-6488 | [4] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 5IN. | |
| 4. | | [1] | AUGER SEGMENT, HALF, LEFT SIDE |
| 5. | | [1] | AUGER SEGMENT, HALF, RIGHT SIDE |
| 6. | B | | WASHER, TEFLON |
| 7. | | [2] | AUGER SEGMENT, QUARTER, LEFT SIDE |
| 8. | | [2] | AUGER SEGMENT, QUARTER, RIGHT SIDE |
| 9. | | [2] | SHAFT, EXTENSION, 1FT.-0IN. |
| 10. | | [2] | MOLDBOARD, EXTENSION, 1FT.-0IN. |
| 11. | 0S-1587 | [6] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 3/4IN. | |
| | B | | USE AS REQUIRED |
