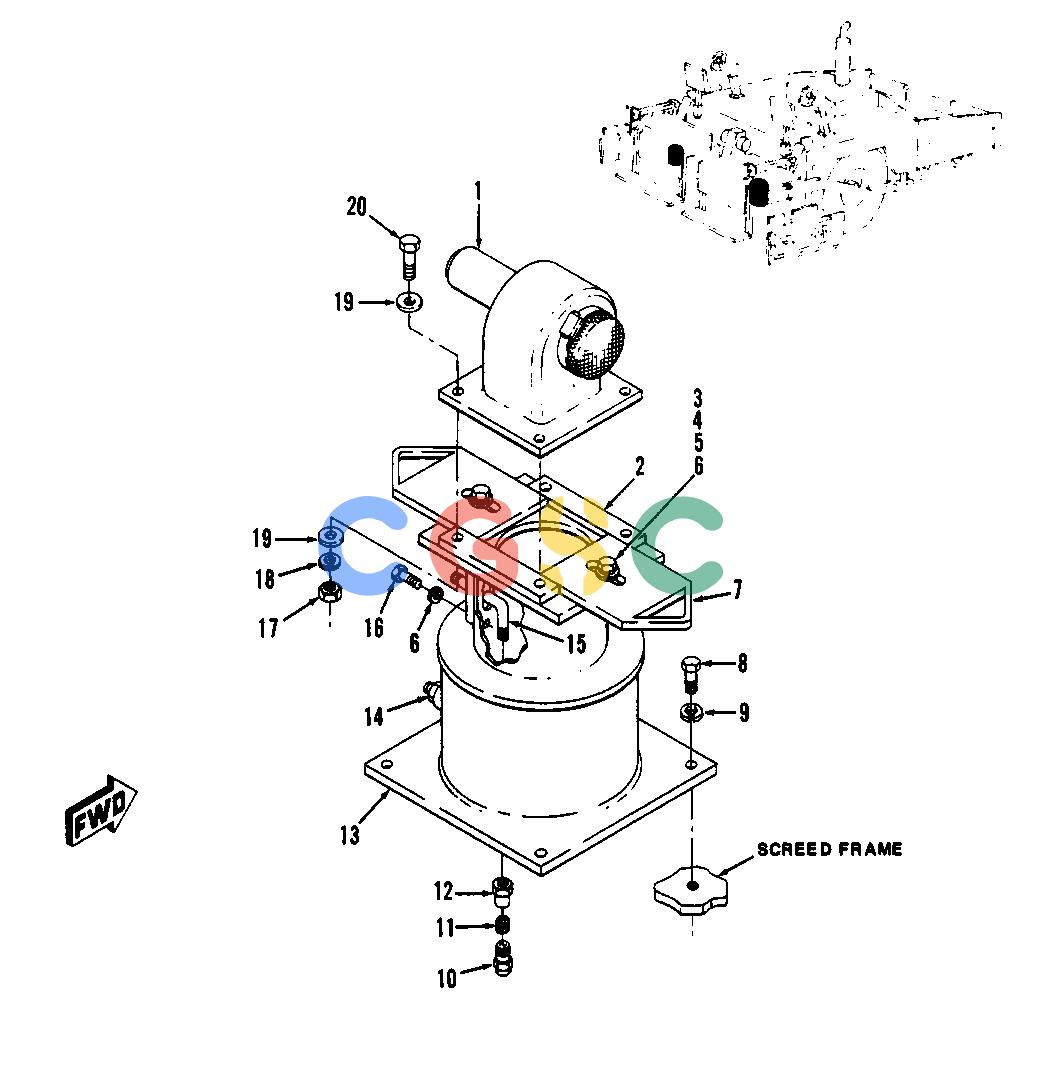

卡特零件查询（8） MAIN SCREED BLOWER ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
162 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | | [2] | BLOWER MOTOR ASSEMBLY |
| 2. | | [4] | SPACER |
| 3. | | [4] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1 1/2IN. |
| 4. | 1D-4717 | [4] | NUT, HEX., 3/8IN.-16 N.C. | |
| 5. | 4B-4278 | [4] | FLATWASHER, 3/8IN. | |
| 6. | 3B-4506 | [6] | LOCKWASHER, 3/8IN. | |
| 7. | | [4] | BAFFLE |
| 8. | 0S-1585 | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/2IN. | |
| 9. | 3B-4508 | [8] | LOCKWASHER, 1/2IN. | |
| 10. | | [2] | NOZZLE |
| 11. | | [2] | FILTER |
| 12. | | [2] | ADAPTER |
| 13. | | [2] | MOUNT, BLOWER |
| 14. | | [2] | GLOW PLUG, 12 VOLT |
| 15. | | [2] | ELBOW |
| 16. | 0S-1594 | [4] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1IN. | |
| 17. | 1B-4330 | [8] | NUT, HEX., 1/4IN.-20 N.C. | |
| 18. | 3B-4504 | [8] | LOCKWASHER, 1/4IN. | |
| 19. | 4B-4276 | [16] | FLATWASHER, 1/4IN. | |
| 20. | 7B-2742 | [8] | BOLT, HEX. HD., 1/4IN.-20 N.C. X 1 1/4IN. | |
