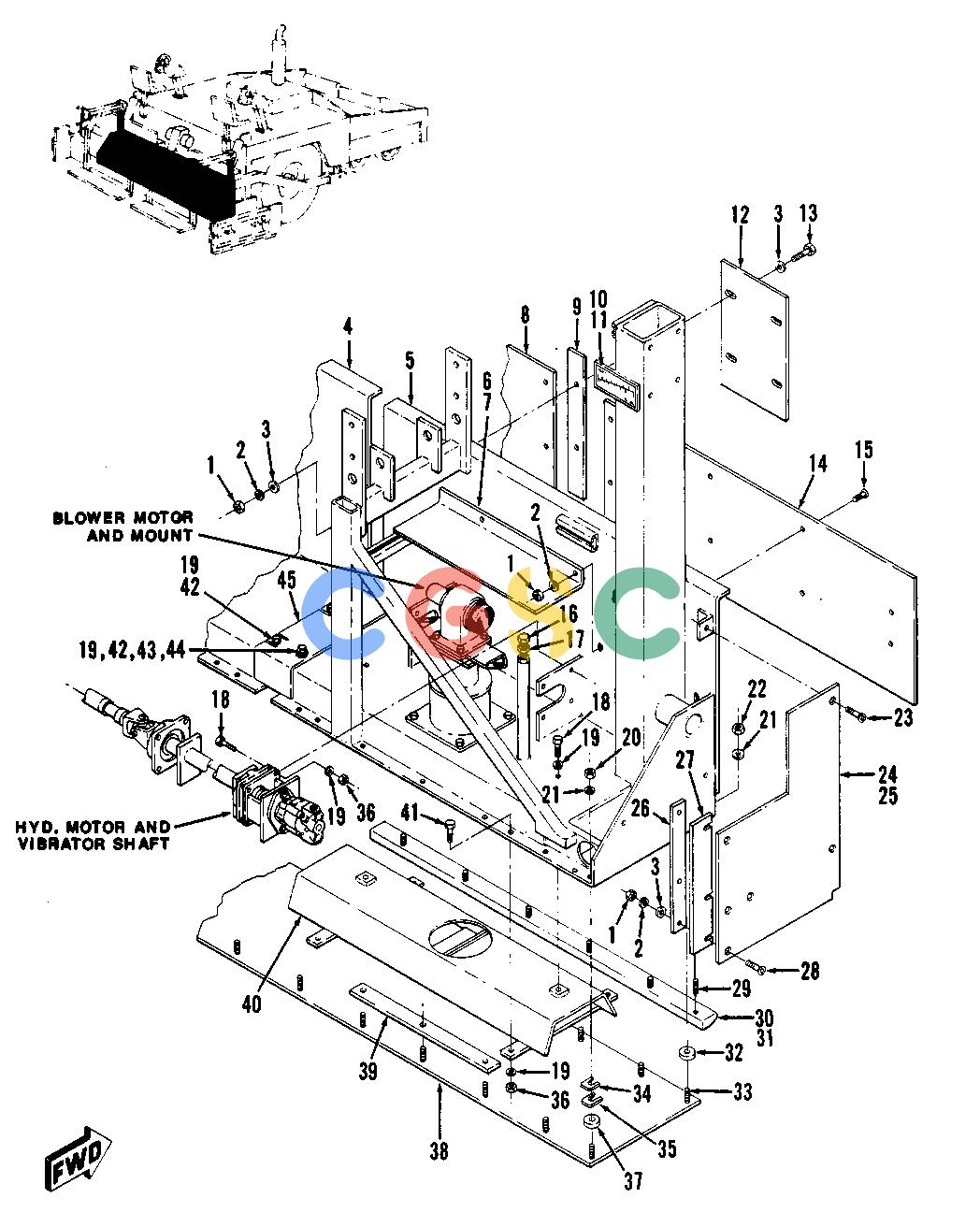

| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | 1D-4717 | [16] | NUT, HEX. HD., 3/8IN.-16 N.C. | |
| 2. | 3B-4506 | [22] | LOCKWASHER, 3/8IN. | |
| 3. | 4B-4278 | [22] | FLATWASHER, 3/8IN. | |
| 4. | | [1] | FRAME, MAIN SCREED, LEFT SIDE (OPPOSITE) |
| 5. | | [1] | FRAME, MAIN SCREED, RIGHT SIDE (SHOWN) |
| 6. | | [1] | GUARD, VIBRATOR, RIGHT SIDE (SHOWN) |
| 7. | | [1] | GUARD, VIBRATOR, LEFT SIDE (OPPOSITE) |
| 8. | | [1] | WEAR PLATE, LEFT SIDE |
| 9. | | [1] | SPACER |
| 10. | | [1] | DECAL, SLOPE, RIGHT SIDE (SHOWN) |
| 11. | | [1] | DECAL, SLOPE, LEFT SIDE (OPPOSITE) |
| 12. | | [1] | PLATE |
| 13. | | [6] | BOLT, HEX. HD., 3/8IN.-16 N.C. X 1 1/2IN. |
| 14. | | [1] | WEAR PLATE, RIGHT SIDE |
| 15. | 067-7897 | [16] | CAPSCREW, CSK. HD., 3/8IN.-16 N.C. X 1 1/4IN. | |
| 16. | | [2] | BOLT, ADJUSTMENT |
| 17. | | [2] | NUT, JAM, 5/8IN.-11 N.C. |
| 18. | 0S-1587 | [12] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 3/4IN. | |
| 19. | 3B-4508 | [52] | LOCKWASHER, 1/2IN. | |
| 20. | | [24] | LOCKNUT, HEX., 1/2IN.-20 N.F. |
| 21. | | [36] | FLATWASHER, HARDENED, 1/2IN. |
| 22. | | [12] | LOCKNUT, HEX. HD., 1/2IN.-13 N.C. |
| 23. | 030-7571 | [6] | CAPSCREW, CSK. HD., 3/8IN.-16 N.C. X 1IN. | |
| 24. | | [1] | WEAR PLATE, RIGHT END (SHOWN) |
| 25. | | [1] | WEAR PLATE, LEFT END (OPPOSITE) |
| 26. | | [2] | STRAP |
| 27. | | [2] | SEAL, RUBBER |
| 28. | | [6] | BOLT, CSK. HD., 3/8IN.-16 N.C. X 1 3/4IN. |
| 29. | | [12] | STUD, 1/2IN.-13 N.C. X 2 3/8IN. |
| 30. | | [1] | NOSE BAR, RIGHT SIDE (SHOWN) |
| 31. | | [1] | NOSE BAR, LEFT SIDE (OPPOSITE) |
| 32. | | [6] | SPACER |
| 33. | | [24] | STUD, 1/2IN.-13 N.C. X 1/2IN.-20 N.F. X 2 3/4IN. |
| 34. | B | | SHIM, 16 GA. |
| 35. | B | | SHIM, 24 GA. |
| 36. | 1D-4719 | [4] | NUT, HEX., 1/2IN.-13 N.C. | |
| 37. | | [12] | SPACER |
| 38. | | [1] | WEAR PLATE, BOTTOM |
| 39. | | [2] | BAR, SPACER |
| 40. | | [2] | BAFFLE |
| 41. | 0S-1595 | [8] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/4IN. | |
| 42. | 0S-1585 | [4] | BOLT, HEX. HD., 1/2IN.-13 N.C. X 1 1/2IN. | |
| 43. | 4B-4280 | [2] | FLATWASHER, 1/2IN. | |
| 44. | 4B-4281 | [2] | FLATWASHER, 5/8IN. | |
| 45. | | [1] | COVER |
| | B | | USE AS REQUIRED |
