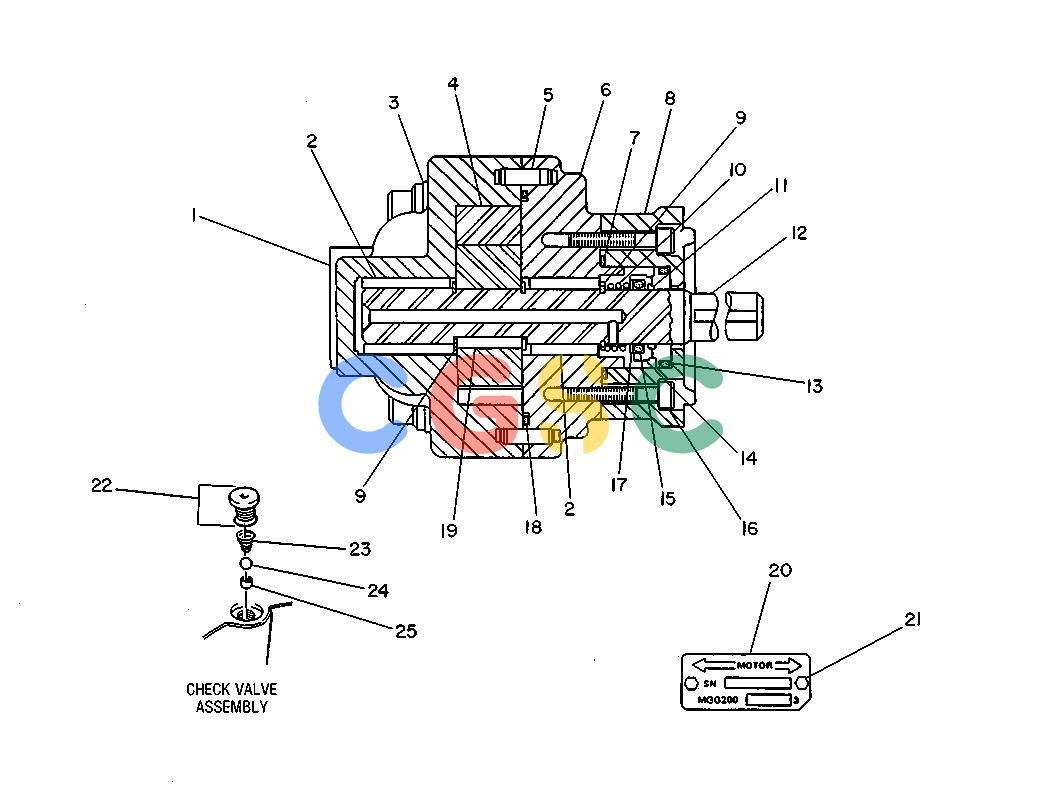

卡特零件查询（8） 8C-7167: MOTOR GP-HYDRAULIC
广数供应链运营团队, 17 02月, 2025，浏览：
350 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7054 | [1] | BODY | |
| 2. | 7R-7055 | [2] | BEARING | |
| 3. | 7R-7056 | [4] | SCREW | |
| 4. | 7R-7057 | [1] | ELEMENT | |
| 5. | 7R-7058 | [2] | PIN | |
| 6. | 7R-7059 | [1] | COVER | |
| 7. | 7R-7060J | [1] | SEAL-O-RING | |
| 8. | 7R-7061 | [1] | PLATE | |
| 9. | 7R-5055 | [3] | RING | |
| 10. | 7R-5061 | [1] | SPRING | |
| 11. | 7R-5062J | [1] | SEAT | |
| 12. | 7R-7062 | [1] | SHAFT | |
| 13. | 7R-5056J | [1] | SEAL-O-RING | |
| 14. | 7R-5057J | [1] | SEAL | |
| 15. | 7R-7064J | [1] | SEAL-O-RING | |
| 16. | 7R-5063 | [4] | SCREW | |
| 17. | 7R-5059 | [1] | WASHER | |
| 18. | 7R-5060J | [1] | SEAL-O-RING | |
| 19. | 7R-7065 | [1] | PIN | |
| 20. | 7R-7066 | [1] | PLATE | |
| 21. | 7R-7067 | [2] | SCREW | |
| 22. | 7R-7071 | [2] | PLUG | |
| 23. | 7R-7068 | [2] | SPRING | |
| 24. | 7R-7069 | [2] | BALL | |
| 25. | 7R-7070 | [2] | SEAT | |
| | | | |
| | | | THE FOLLOWING REPAIR |
| | | | KIT IS AVAILABLE: |
| | 7R-7116 | [1] | KIT-SEAL | |
| | | | (INCL PARTS MARKED J) |
