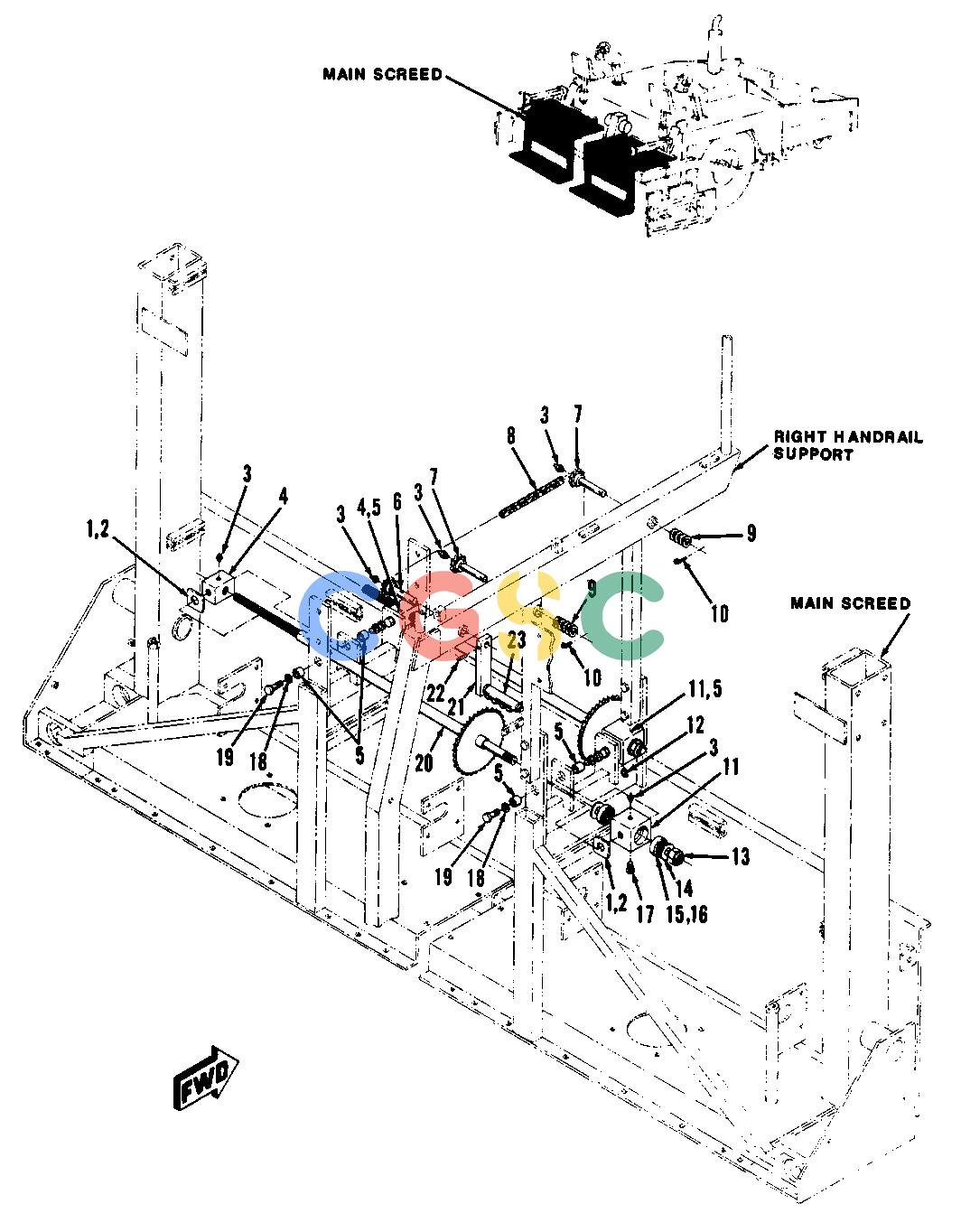

卡特零件查询（8） CROWNING ASSEMBLY
广数供应链运营团队, 17 02月, 2025，浏览：
168 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| | | [1] | ATTACHMENT: SCREED ASSEMBLY, 8 FT. EXTENDABLE |
| 1. | | [8] | FLATWASHER, 1 1/4IN. |
| 2. | | [12] | SHIM |
| 3. | | [5] | GREASE FITTING, STR. 1/8IN. N.P.T. |
| 4. | | [2] | ADJUSTMENT BLOCK |
| 5. | | [8] | SPACER |
| 6. | | [1] | SHAFT, CRANK |
| 7. | | [2] | SHAFT, SPROCKET |
| 8. | | [1] | CHAIN ASSEMBLY |
| 9. | 4B-4280 | [9] | FLATWASHER, 1/2IN. | |
| 10. | | [2] | PIN, COTTER, 1/8IN. DIA. X 1IN. LG. |
| 11. | | [2] | HOUSING, BEARING |
| 12. | | [2] | GREASE FITTING, 90DEGREES, 1/8IN. N.P.T. |
| 13. | 2H-3791 | [2] | LOCKNUT, HEX., 1IN.-8 N.C. | |
| 14. | 5P-8250 | [4] | FLATWASHER, 1IN. (SPECIAL) | |
| 15. | | [4] | CUP, BEARING |
| 16. | | [4] | CONE, BEARING |
| 17. | | [2] | BOLT, HEX. HD., 3/4IN.-10 N.C. X 1IN. |
| 18. | 3B-4512 | [8] | LOCKWASHER, 3/4IN. | |
| 19. | 0L-1178 | [8] | BOLT, HEX. HD., 3/4IN.-10 N.C. X 2IN. | |
| 20. | | [2] | SHAFT, CROWNING ADJUSTMENT |
| 21. | | [1] | CRANK |
| 22. | | [1] | PIN, ROLLED, 3/8IN. DIA. X 1 1/2IN. LG. |
| 23. | | [1] | GRIP, HANDLE |
