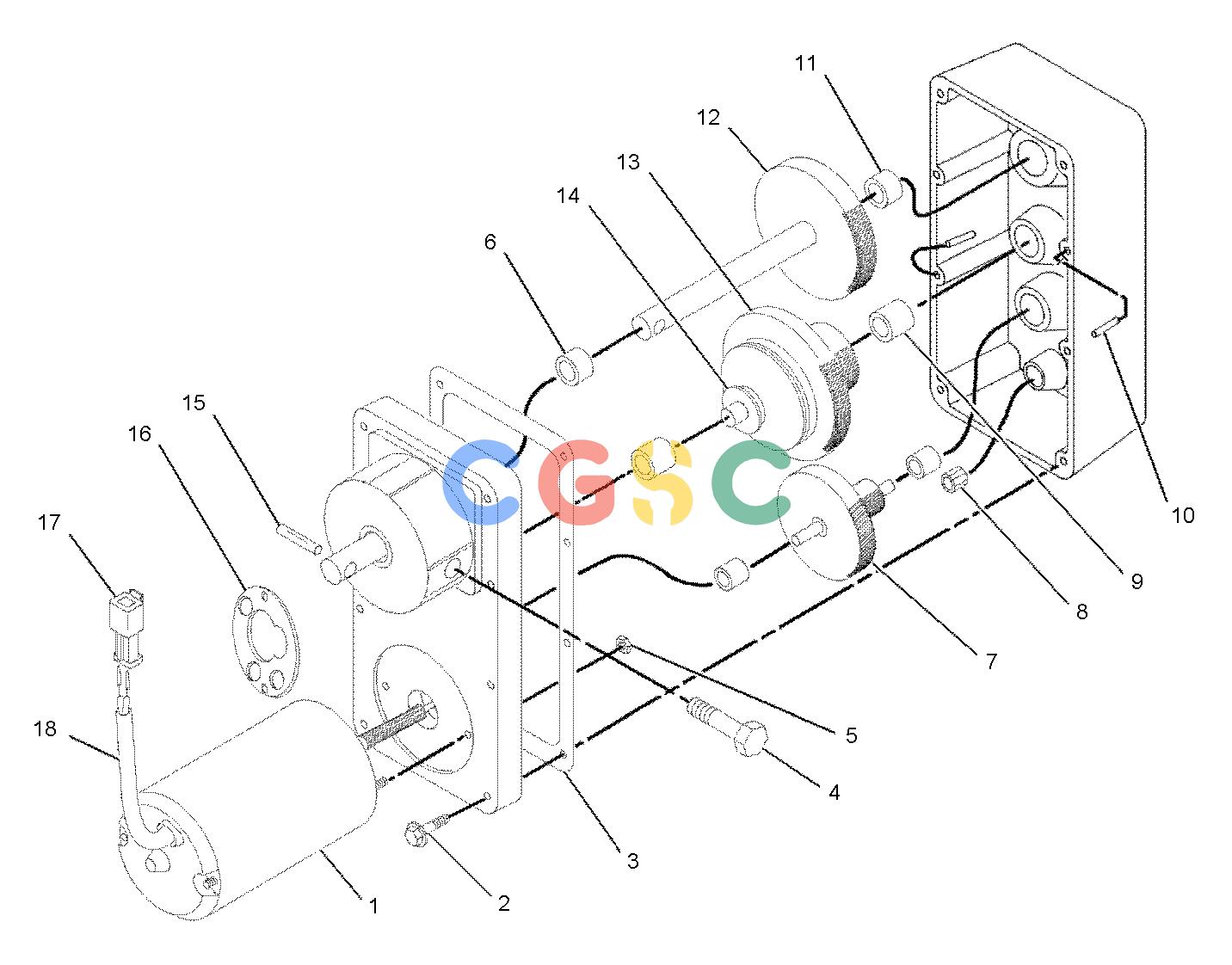

卡特零件查询（8-16B） 165-3728: MOTOR GP-POWER ADJUSTER
广数供应链运营团队, 17 02月, 2025，浏览：
585 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 171-6592 | [1] | MOTOR AS | |
| 2. | 122-8707 | [6] | SCREW-HEX(10-16X1-IN) | |
| 3. | 171-3716 | [1] | GASKET-COVER | |
| 4. | 5M-3062 | [1] | BOLT(3/8-16X0.75-IN) | |
| 5. | 179-4324M | [2] | LOCKNUT(M5X0.8-THD) | |
| 6. | 077-5077 | [2] | BUSHING-TERMINAL | |
| 7. | 171-3715 | [1] | SHAFT-IDLER | |
| 8. | 1L-0834 | [1] | BEARING AS-NEEDLE | |
| 9. | 123-3683 | [2] | BUSHING-BRONZE | |
| 10. | 171-6787 | [2] | DOWEL | |
| 11. | 123-3684 | [2] | BUSHING-BRONZE | |
| 12. | 171-3711 | [1] | SHAFT-GEAR | |
| 13. | 107-2074 | [1] | LIMITER-TORQUE | |
| 14. | 7M-7193 | [1] | RACE-THRUST BEARING | |
| 15. | 171-6788 | [1] | PIN | |
| 16. | 168-2166 | [1] | GASKET-MOTOR | |
| 17. | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 18. | 9X-1813E | | SLEEVE(23-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
