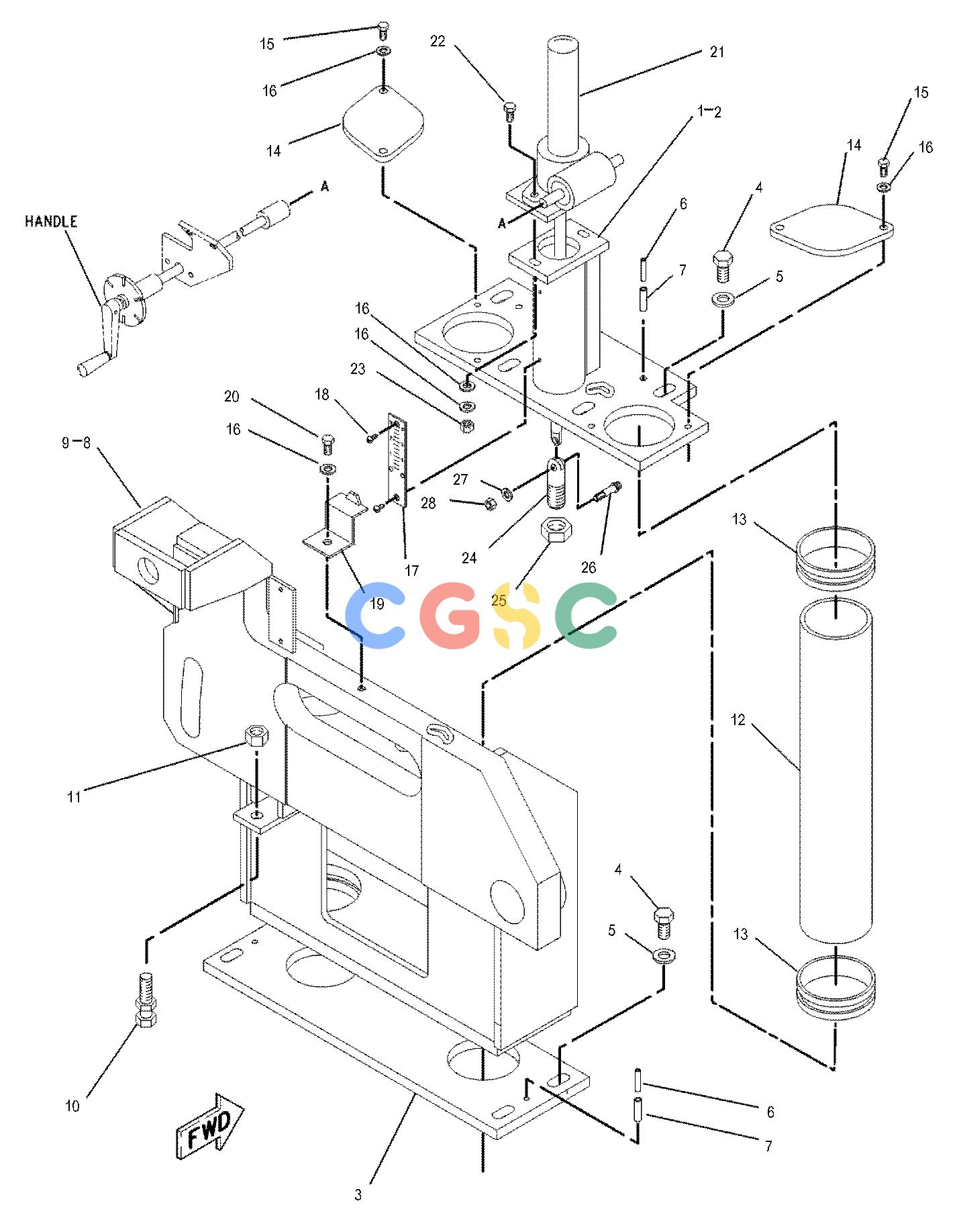

卡特零件查询（8-16B） 8I-0257: ADJUSTER GP-HEIGHT
广数供应链运营团队, 17 02月, 2025，浏览：
525 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8I-0258 | [1] | PLATE AS(RH) | |
| 2. | 8I-0259 | [1] | PLATE AS(LH) | |
| | | | (EACH PLATE AS INCLUDES) |
| | 5E-9146E | | CHANNEL(20-CM) | |
| | 7T-1099 | [1] | LINK | |
| 3. | 8I-0273 | [2] | PLATE-BOTTOM | |
| 4. | 8T-9393 | [18] | BOLT(5/8-11X1.5-IN) | |
| 5. | 8T-4122 | [18] | WASHER-HARD(17X32X3.5-MM THK) | |
| 6. | 253-8866 | [8] | PIN-SPRING | |
| 7. | 5J-3941 | [8] | PIN-SPRING | |
| 8. | 8I-0261 | [1] | FRAME AS(RH) | |
| 9. | 8I-0262 | [1] | FRAME AS(LH) | |
| | | | (EACH FRAME AS INCLUDES) |
| | 7T-1099 | [2] | LINK | |
| 10. | 8T-6871 | [2] | BOLT(5/8-11X2.5-IN) | |
| 11. | 1D-5118 | [2] | NUT-JAM(5/8-11-THD) | |
| 12. | 354-6744 | [4] | TUBE AS | |
| 13. | 8I-0256 | [8] | BUSHING | |
| 14. | 8I-0267 | [4] | CAP | |
| 15. | 4L-6454 | [8] | BOLT(3/8-16X1-IN) | |
| 16. | 8T-4896 | [18] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 17. | 107-6186 | [2] | GAUGE(EXTENDER INDICATOR) | |
| 18. | 9S-2544 | [4] | SCREW-HEX HEAD(8-32X11.13-MM) | |
| 19. | 8I-0272 | [2] | POINTER | |
| 20. | 5P-8167 | [2] | BOLT(3/8-16X0.625-IN) | |
| 21. | 102-2703Y | [2] | ADJUSTER GP-HEIGHT(MANUAL) | |
| 22. | 5S-7383 | [4] | BOLT(3/8-16X1.75-IN) | |
| 23. | 6V-8801 | [4] | NUT(3/8-16-THD) | |
| 24. | 102-2733 | [2] | CLEVIS | |
| 25. | 253-9036 | [2] | NUT-JAM(1-1/4-12-THD) | |
| 26. | 102-2704 | [2] | BOLT-SPECIAL | |
| 27. | 8T-4224 | [2] | WASHER-HARD(8.8X16X2-MM THK) | |
| 28. | 6V-8189 | [2] | NUT(5/16-18-THD) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | E | | ORDER BY THE CENTIMETER |
| | Y | | SEPARATE ILLUSTRATION |
