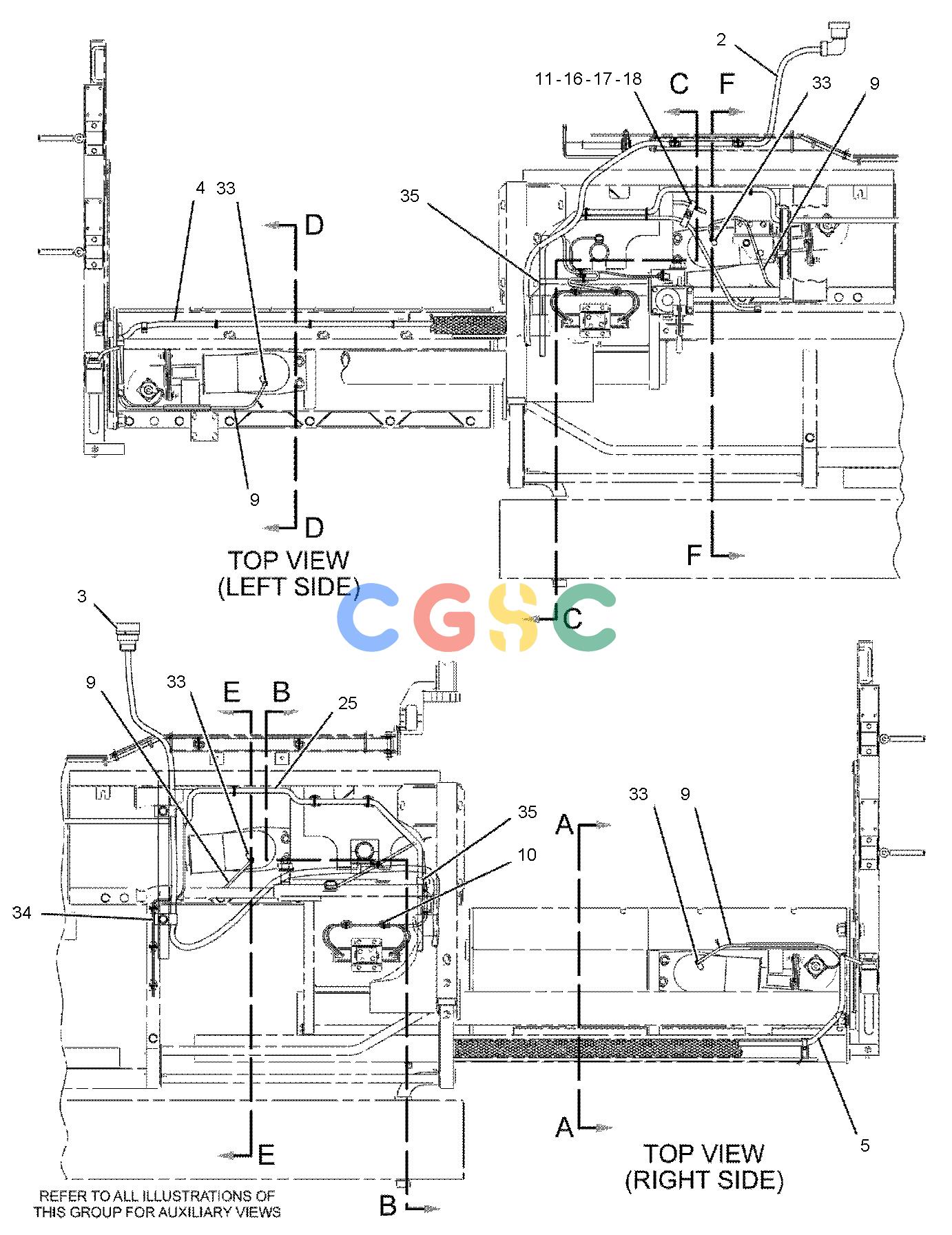

| 1. | 117-6111 | [1] | HARNESS AS-SCREED(MAIN) | |
| | 155-2270 | [11] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (EACH INCLUDE PLUG AS & WEDGE) |
| | 102-8802 | [5] | KIT-RECEPTACLE(2-PIN) | |
| | | | (EACH INCLUDE RECEPTACLE AS & WEDGE) |
| | 3T-0203 | [2] | PLUG AS-CONNECTOR(20-PIN) | |
| | 6R-0146 | [2] | SEAL-TERMINAL | |
| | 7G-8238 | [2] | PLUG AS-CONNECTOR | |
| | 7K-1181 | [4] | STRAP-CABLE | |
| | 8N-1535 | [4] | BELL AS-END | |
| 2. | 109-0328 | [1] | CABLE AS | |
| 3. | 180-3829 | [1] | CABLE AS-CONTROL | |
| 4. | 118-8170 | [1] | HARNESS AS-SCREED(EXTENDER, LH) | |
| | 104-3657 | [1] | CONNECTOR | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| | 6R-0146 | [1] | SEAL-TERMINAL | |
| | 7K-1181 | [1] | STRAP-CABLE | |
| | 8C-3654 | [1] | PLUG-CONNECTOR(6-PIN) | |
| | 8N-1531 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| | 8N-1535 | [1] | BELL AS-END | |
| 5. | 118-8171 | [1] | HARNESS AS-SCREED(EXTENDER, RH) | |
| | 104-3657 | [1] | CONNECTOR | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| | 6R-0146 | [1] | SEAL-TERMINAL | |
| | 7K-1181 | [2] | STRAP-CABLE | |
| | 8C-3654 | [1] | PLUG-CONNECTOR(6-PIN) | |
| | 8N-1531 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| | 8N-1535 | [1] | BELL AS-END | |
| 6. | 144-3499Y | [1] | BOX GP-SCREED CONTROL(LH) | |
| 7. | 111-7545Y | [1] | BOX GP-SCREED CONTROL(RH) | |
| 8. | 116-4490Y | [2] | BOX GP-EXTENSION | |
| 9. | 103-7346 | [4] | WIRE AS | |
| 10. | 3S-2093 | [26] | STRAP-CABLE | |
| 11. | 8M-2773 | [10] | CLIP(LOOP) | |
| 12. | 8J-1256 | [4] | CLIP | |
| 13. | 8C-0370 | [2] | CLAMP AS | |
| 14. | 103-6163 | [1] | BRACKET AS | |
| | 5M-3062 | [1] | BOLT(3/8-16X0.75-IN) | |
| 15. | 103-6164 | [1] | BRACKET AS | |
| 16. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| 17. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 18. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 19. | 4M-5281 | [10] | BOLT(1/4-20X0.75-IN) | |
| 20. | 8T-4205 | [12] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 21. | 7T-0969 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| | 155-2270 | [1] | KIT-CONNECTING PLUG(2-PIN) | |
| | | | (INCLUDES PLUG AS & WEDGE) |
| | 186-3736 | [2] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| | 8C-7581M | [2] | SCREW-MACHINE(M4X0.7X8-MM) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 22. | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| 23. | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 24. | 107-2784 | [4] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| 25. | 7K-1181 | [35] | STRAP-CABLE | |
| 26. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| 27. | 6V-8188 | [4] | NUT(1/2-13-THD) | |
| 28. | 2D-6235 | [8] | LOCKNUT(1/4-20-THD) | |
| 29. | 9S-2544 | [8] | SCREW-HEX HEAD(8-32X11.13-MM) | |
| 30. | 4B-4863 | [8] | WASHER(4.7X11X1.2-MM THK) | |
| 31. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 32. | 5P-4115 | [8] | WASHER-HARD(7.2X19X2-MM THK) | |
| 33. | 141-9273 | [4] | GLOW PLUG(24-VOLT) | |
| 34. | 6D-4636 | [3] | CLIP(LOOP) | |
| 35. | 1S-1015 | [2] | CLIP | |
| 36. | 228-7406 | [1] | FILM-INSTRUCTION(BURNER OPERATION) | |
| 37. | 101-9557 | [2] | CLAMP | |
| 38. | 7X-0265 | [1] | BOLT(1/4-20X2.75-IN) | |
| 39. | 7R-7944 | [1] | PLATE AS | |
| 40. | 7R-7951 | [1] | PLATE | |
| 41. | 7X-0264 | [1] | BOLT(1/4-20X2.5-IN) | |
| 42. | 234-1407 | [2] | GUARD | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
