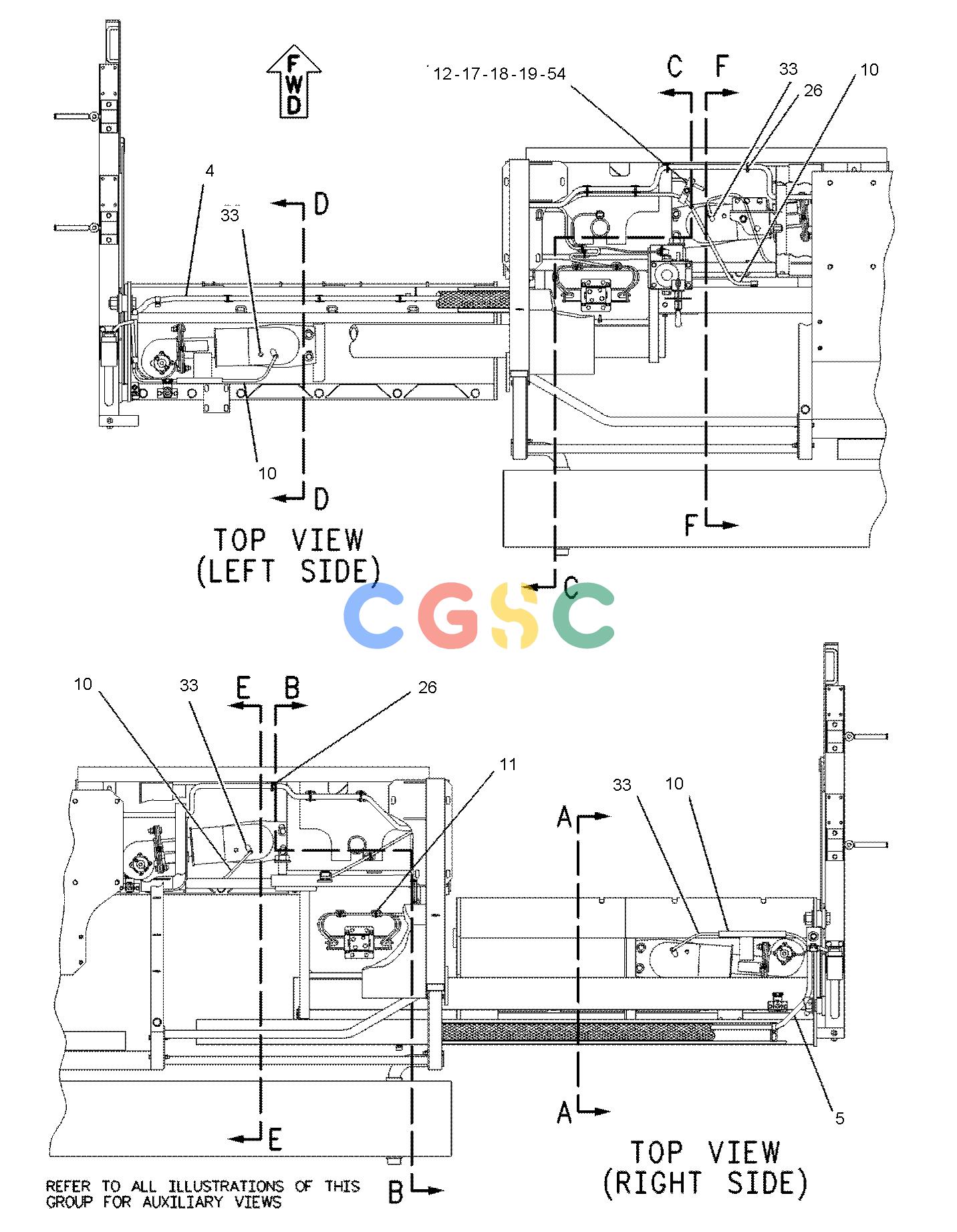

| 1. | 147-2776 | [1] | HARNESS AS-SCREED(MAIN) | |
| | 131-3201 | [2] | BOOT | |
| | 8N-1525 | [1] | PLUG AS-CONNECTOR(20-PIN) | |
| | 8N-1535 | [3] | BELL AS-END | |
| | 8T-8737 | [40] | PLUG-SEAL | |
| | 9X-1813BE | | SLEEVE | |
| | 155-2270 | [17] | KIT-CONNECTING PLUG(2-PIN) | |
| | 102-8802 | [5] | KIT-RECEPTACLE(2-PIN) | |
| | 110-6846 | [1] | PLUG AS-CONNECTOR(40-PIN) | |
| | 3T-0203 | [1] | PLUG AS-CONNECTOR(20-PIN) | |
| | 3T-3412 | [1] | PLUG AS-CONNECTOR(37-PIN) | |
| | 6R-0146 | [2] | SEAL-TERMINAL | |
| | 7G-7919 | [22] | PLUG-SEAL | |
| | 7K-1181 | [4] | STRAP-CABLE | |
| | 8N-1514 | [1] | PLUG AS-CONNECTOR(37-PIN) | |
| | 8N-1521 | [1] | BELL AS-END | |
| 2. | 115-1476 | [1] | HARNESS AS-SCREED(PAVER TO SCREED, POWER) | |
| 3. | 129-2391 | [1] | CABLE AS | |
| 4. | 147-2777 | [1] | HARNESS AS-SCREED(EXTENDER, LH) | |
| 5. | 147-2778 | [1] | HARNESS AS-SCREED(EXTENDER, RH) | |
| 6. | 146-8176Y | [1] | BOX GP-SCREED CONTROL(LH) | |
| 7. | 146-8481Y | [1] | BOX GP-SCREED CONTROL(RH) | |
| 8. | 116-4490Y | [2] | BOX GP-EXTENSION | |
| 9. | 146-8906Y | [1] | CONTROL GP-BURNER | |
| 10. | 103-7346 | [4] | WIRE AS | |
| 11. | 3S-2093 | [26] | STRAP-CABLE | |
| 12. | 8M-2773 | [1] | CLIP(LOOP) | |
| 13. | 8J-1256 | [4] | CLIP | |
| 14. | 8T-4606 | [2] | CLAMP AS | |
| 15. | 103-6163 | [1] | BRACKET AS | |
| | 5M-3062 | [1] | BOLT(3/8-16X0.75-IN) | |
| 16. | 103-6164 | [1] | BRACKET AS | |
| 17. | 4M-6425 | [1] | BOLT(5/16-18X1-IN) | |
| 18. | 8T-4224 | [3] | WASHER-HARD(8.8X16X2-MM THK) | |
| 19. | 6V-8189 | [1] | NUT(5/16-18-THD) | |
| 20. | 4M-5281 | [14] | BOLT(1/4-20X0.75-IN) | |
| 21. | 8T-4205 | [24] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 22. | 7T-0969 | [1] | HORN AS(24-VOLT, LOW TONE) | |
| | 096-6166 | [2] | WASHER-HARD(4.5X9X1-MM THK) | |
| | 8C-7581M | [2] | SCREW-MACHINE(M4X0.7X8-MM) | |
| | 9B-7233 | [2] | LOCKWASHER | |
| 23. | 6V-8801 | [1] | NUT(3/8-16-THD) | |
| 24. | 8T-4896 | [1] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 25. | 107-2784 | [4] | SCREW-FLAT HEAD(1/2-13X1.5-IN) | |
| 26. | 7K-1181 | [39] | STRAP-CABLE | |
| 27. | 8T-8908 | [8] | BOLT(1/4-20X1-IN) | |
| 28. | 2D-6235 | [16] | LOCKNUT(1/4-20-THD) | |
| 29. | 5D-8412 | [12] | SCREW-ROUND HEAD(8-32X0.5-IN) | |
| 30. | 4B-4863 | [8] | WASHER(4.7X11X1.2-MM THK) | |
| 31. | 145-0496 | [2] | FILM-INFORMATION(SERVICE CODES, AUTO BURNER) | |
| 32. | 5P-4115 | [10] | WASHER-HARD(7.2X19X2-MM THK) | |
| 33. | 141-9273 | [4] | GLOW PLUG(24-VOLT) | |
| 34. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 35. | 6V-8188 | [8] | NUT(1/2-13-THD) | |
| 36. | 4B-2043 | [4] | NUT(8-32-THD) | |
| 37. | 143-6447Y | [1] | CONTROL GP-BURNER ELECTRONIC | |
| 38. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 39. | 6I-1418 | [4] | SPACER(8.2X12.7X28.7-MM THK) | |
| 40. | 8T-9367 | [4] | BOLT(1/4-20X2-IN) | |
| 41. | 146-8909 | [4] | SWITCH AS-TEMPERATURE(BURNER) | |
| | | | (EACH INCLUDES) |
| | 102-8802 | [1] | KIT-RECEPTACLE(2-PIN) | |
| | | | (INCLUDES WEDGE & RECEPTACLE AS) |
| | 8T-8729 | [2] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 9X-1813BE | | SLEEVE | |
| 42. | 143-2922 | [4] | NIPPLE-PIPE | |
| 43. | 143-2923 | [4] | PLATE | |
| 44. | 8T-9364 | [8] | BOLT(1/4-20X0.625-IN) | |
| 45. | 1F-6113 | [4] | LOCKNUT(3/4-IN) | |
| 46. | 7E-3066 | [4] | ELBOW-PULLING | |
| 47. | 143-4829 | [4] | CONNECTOR | |
| 48. | 146-5241 | [1] | PLATE-MOUNTING | |
| 49. | 146-5239 | [1] | BRACKET AS-SUPPORT | |
| 50. | 8T-8920 | [2] | BOLT(1/2-13X3.25-IN) | |
| 51. | 5P-2566 | [2] | BOLT(1/2-13X1.5-IN) | |
| 52. | 143-2919Y | [4] | DETECTOR GP-FLAME | |
| 53. | 1H-4393 | [4] | LOCKWASHER | |
| 54. | 6D-4246 | [9] | CLIP(LOOP) | |
| | B | | USE AS REQUIRED |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
