卡特零件查询（AS2301） 229-3118: WIRING GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
569 次

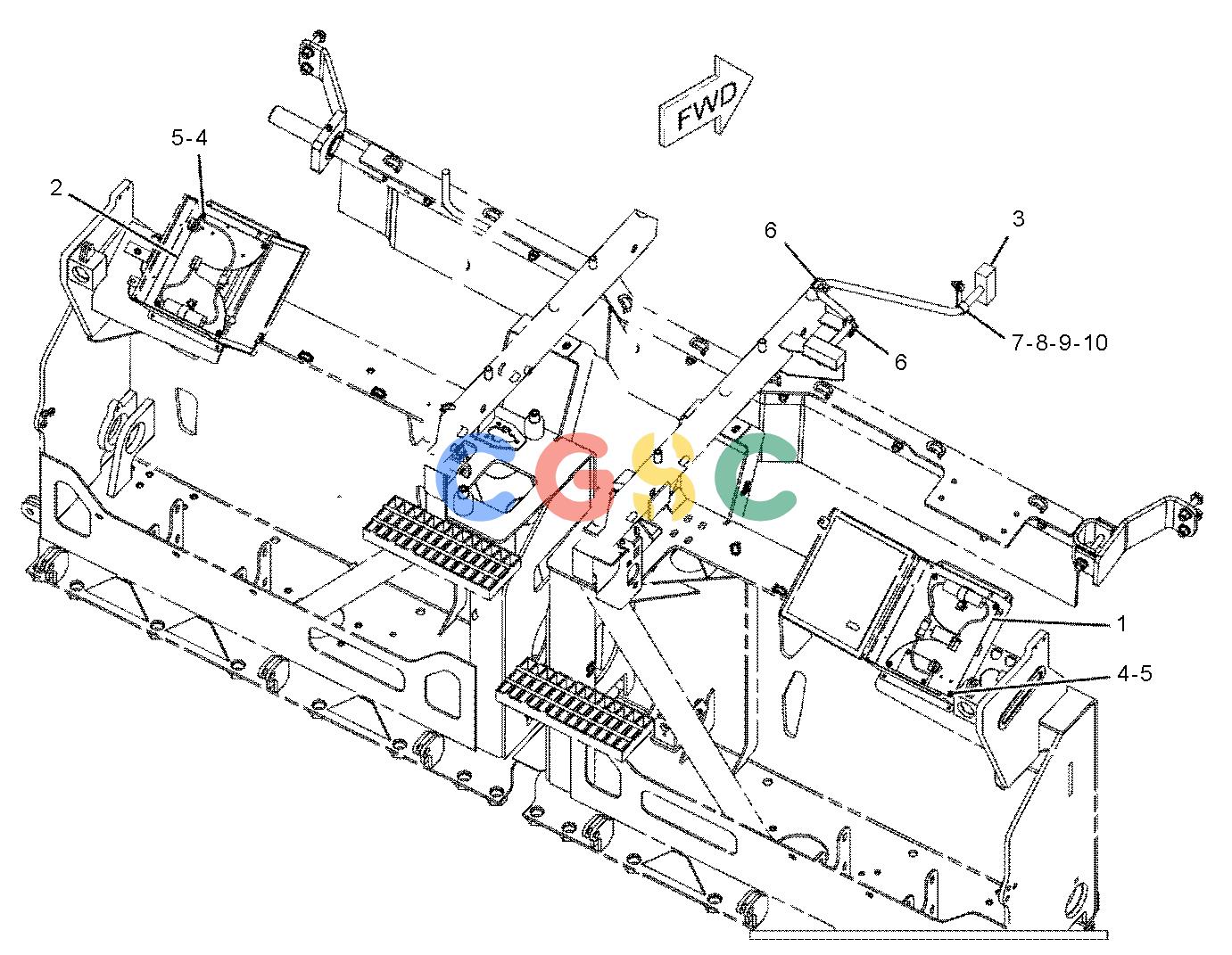

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 196-1298Y | [1] | PANEL GP-ELECTRONIC(RH) | |
| 2. | 196-1299Y | [1] | PANEL GP-ELECTRONIC(LH) | |
| 3. | 243-1845 | [1] | HARNESS AS-SCREED(PAVER TO SCREED) | |
| 4. | 4B-4274 | [8] | WASHER(5.5X13X1.2-MM THK) | |
| 5. | 5P-7162 | [8] | SCREW-MACHINE(10-32X0.5-IN) | |
| 6. | 7K-1181 | [2] | STRAP-CABLE | |
| 7. | 8D-9671 | [1] | CLIP | |
| 8. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 9. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 10. | 8T-7547M | [1] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
