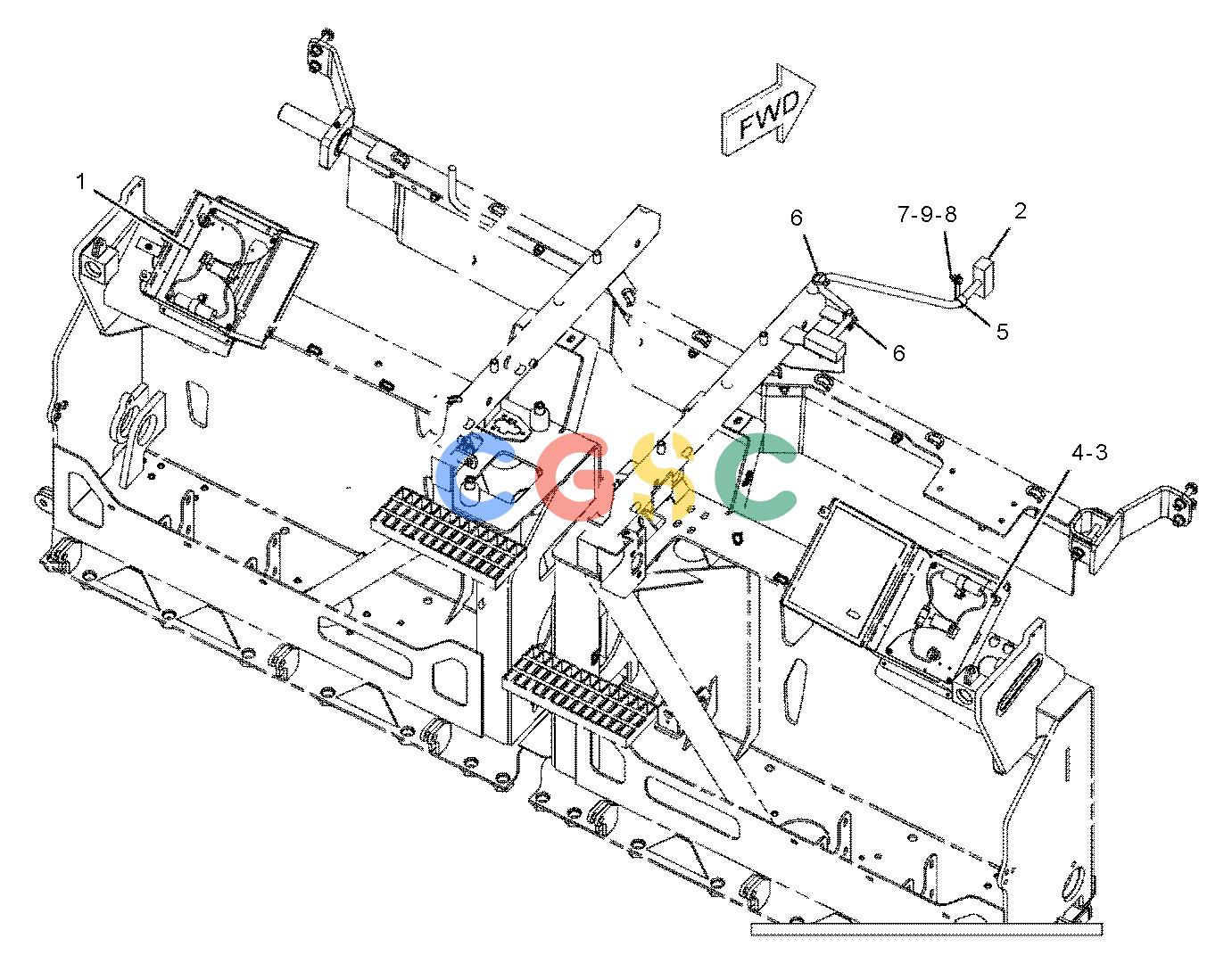

卡特零件查询（AS2301） 229-3119: WIRING GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
188 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 196-1299Y | [2] | PANEL GP-ELECTRONIC(LH) | |
| 2. | 243-1845 | [1] | HARNESS AS-SCREED(PAVER TO SCREED) | |
| | 175-3365 | [2] | PLUG AS-CONNECTOR | |
| | | | (EACH INCLUDES) |
| | 3E-8557M | [1] | BOLT(M5X0.8X39.37-MM) | |
| | 3E-4367 | [1] | RING-RETAINING | |
| | 9X-5615 | [2] | SEAL(INTERFACE, 70-PIN) | |
| | 8T-8737 | [77] | PLUG-SEAL | |
| | 8T-8730 | [63] | SOCKET-CONNECTOR(16-GA TO 18-GA) | |
| 3. | 4B-4274 | [8] | WASHER(5.5X13X1.2-MM THK) | |
| 4. | 5P-7162 | [8] | SCREW-MACHINE(10-32X0.5-IN) | |
| 5. | 8D-9671 | [1] | CLIP | |
| 6. | 7K-1181 | [2] | STRAP-CABLE | |
| 7. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 8. | 5C-7261M | [1] | NUT(M8X1.25-THD) | |
| 9. | 8T-7547M | [1] | BOLT(M8X1.25X30-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
