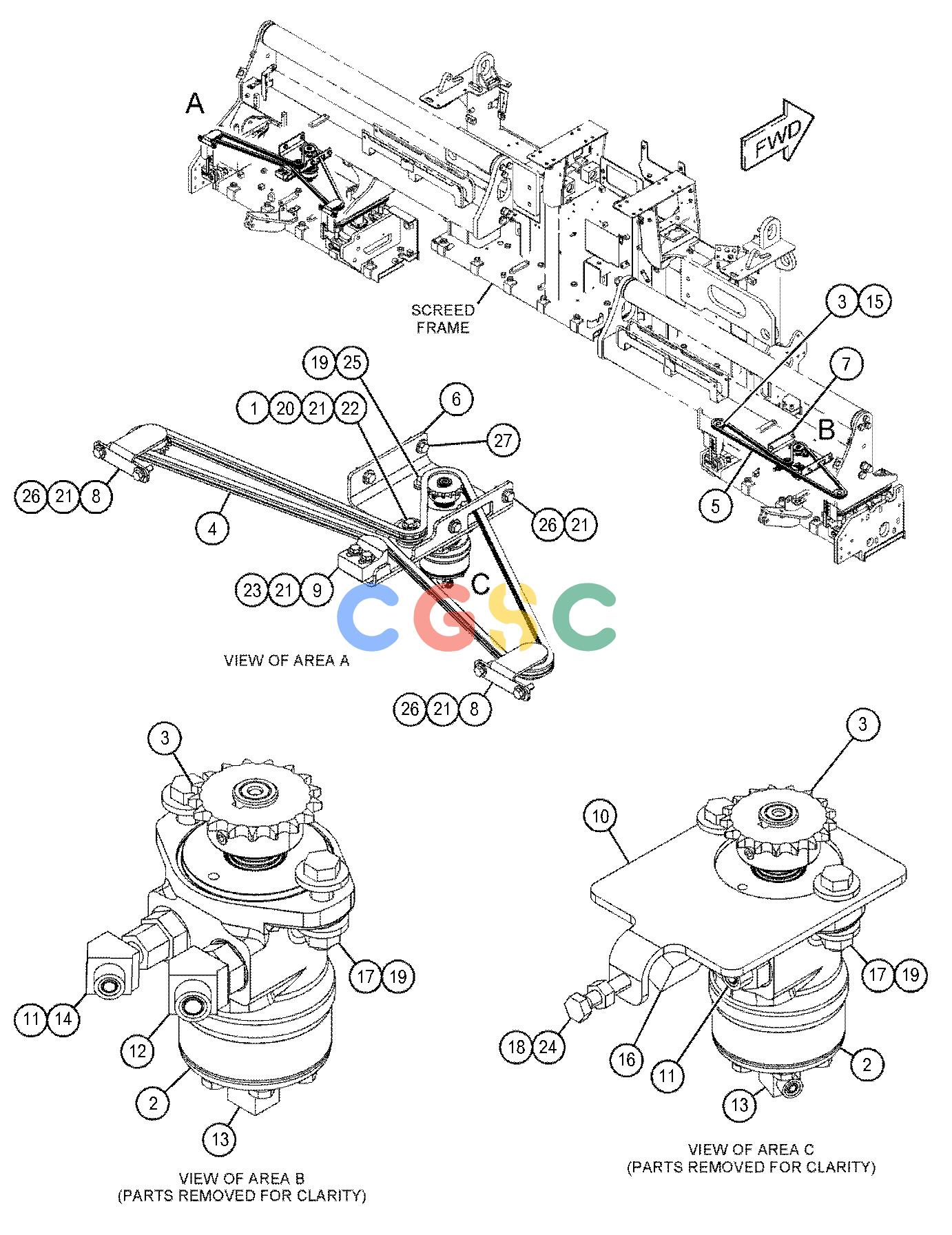

卡特零件查询（SE50） 437-0071: MOTOR & MOUNTING GP
广数供应链运营团队, 18 02月, 2025，浏览：
519 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 119-0750 | [2] | SPROCKET(12-TEETH) | |
| 2. | 415-7619 | [2] | MOTOR GP-GEROTOR | |
| | | | (EACH INCLUDES) |
| | 1B-8714 | [1] | KEY-WOODRUFF | |
| | 454-3916 | [1] | KIT-SEAL | |
| | | | (INCLUDES WASHERS, O-RINGS, LIPTYPE SEAL & DUST SEAL) |
| 3. | 416-7951 | [6] | SPROCKET GP | |
| | | | (EACH INCLUDES) |
| | 5J-3182 | [2] | SETSCREW-HEX SOCKET | |
| 4. | 437-4462 | [1] | CHAIN GP-SCREED(LH) | |
| 5. | 438-1825 | [1] | CHAIN GP-SCREED(RH) | |
| | | | (EACH CHAIN GP INCLUDES) |
| | 102-2687 | [1] | LINK-CONNECTING | |
| | 195-9533 | [1] | LINK-OFFSET | |
| 6. | 438-1843 | [1] | BRACKET AS | |
| 7. | 438-1845 | [1] | BRACKET AS | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 117-8721 | [1] | LUG(M10X1.5-THD) | |
| 8. | 462-9061 | [2] | COVER | |
| 9. | 462-9062 | [2] | BLOCK | |
| 10. | 463-6824 | [2] | PLATE | |
| 11. | 148-8319 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8715 | [1] | CONNECTOR | |
| 12. | 148-8358 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8624 | [1] | ELBOW | |
| 13. | 148-8369 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 14. | 148-8371 | [1] | ELBOW AS | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 8C-8988 | [1] | ELBOW | |
| 15. | 1B-8714 | [4] | KEY-WOODRUFF | |
| 16. | 205-3692 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2134 | [1] | ELBOW | |
| 17. | 329-3356M | [4] | NUT(M12X1.75-THD) | |
| 18. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 19. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 20. | 7X-0582 | [2] | WASHER-HARD(20X44.5X6-MM THK) | |
| 21. | 7X-7729 | [18] | WASHER(11X25X3-MM THK) | |
| 22. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 23. | 8T-4185M | [4] | BOLT(M10X1.5X50-MM) | |
| 24. | 8T-4186M | [2] | BOLT(M10X1.5X40-MM) | |
| 25. | 8T-4194M | [4] | BOLT(M12X1.75X50-MM) | |
| 26. | 8T-4195M | [10] | BOLT(M10X1.5X30-MM) | |
| 27. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| | M | | METRIC PART |
