卡特零件查询（SE50） 437-8057: MOTOR & MTG GP-TAMPER
广数供应链运营团队, 18 02月, 2025，浏览：
759 次

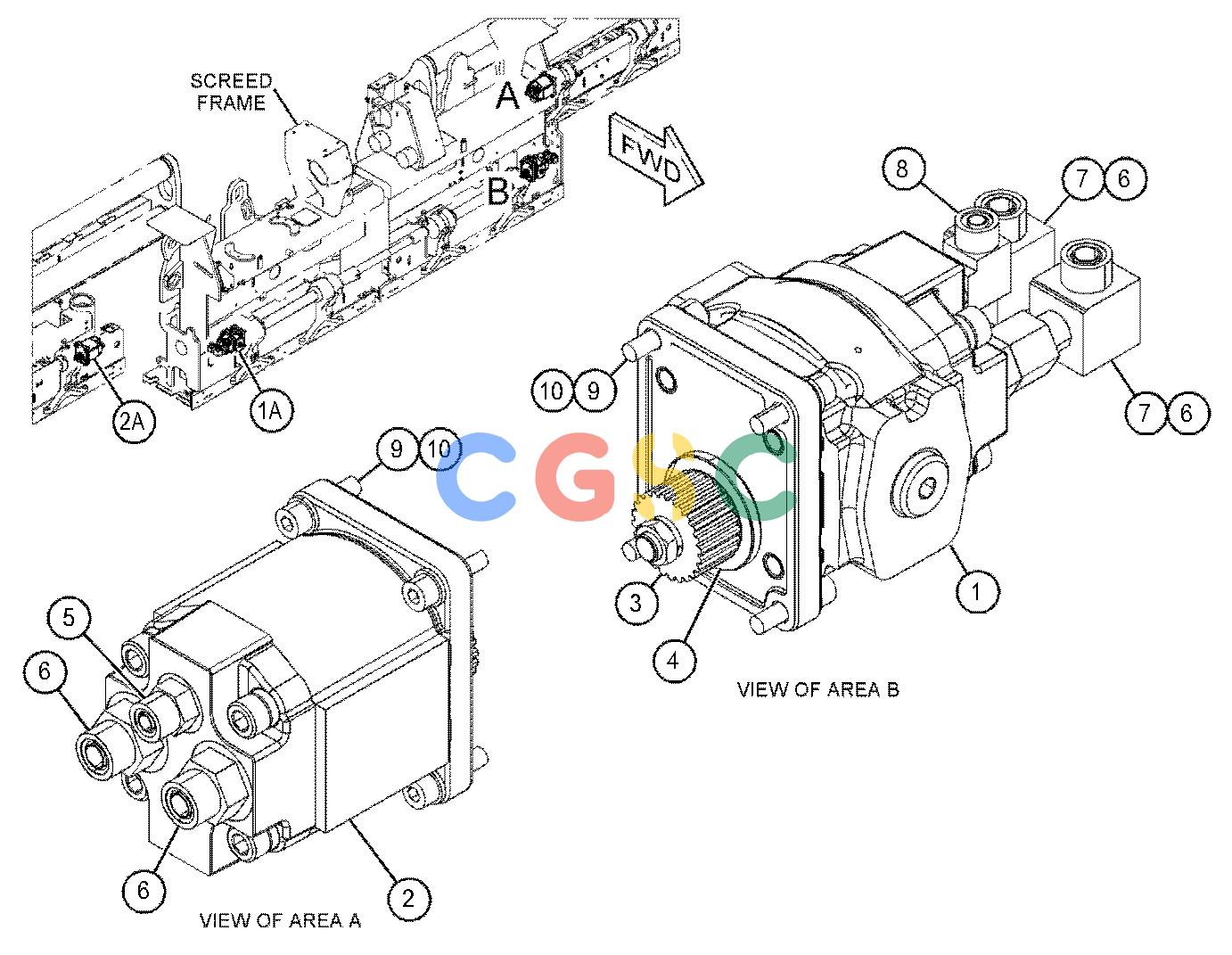

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 399-2389Y | [1] | MOTOR GP-GEAR(MAIN, LH) | |
| 1A. | 399-2389Y | [1] | MOTOR GP-GEAR(MAIN, RH) | |
| 2. | 399-2390Y | [1] | MOTOR GP-GEAR(EXTENDER, LH) | |
| 2A. | 399-2390Y | [1] | MOTOR GP-GEAR(EXTENDER, RH) | |
| 3. | 399-7753 | [4] | COUPLING | |
| 4. | 418-9083 | [4] | RING | |
| 5. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8636 | [1] | CONNECTOR | |
| 6. | 148-8345 | [8] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8638 | [1] | CONNECTOR | |
| 7. | 148-8370 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9851 | [1] | ELBOW | |
| 8. | 148-8378 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 9. | 289-9555M | [16] | BOLT-SOCKET HEAD(M8X1.25X30-MM) | |
| 10. | 8T-4224 | [16] | WASHER-HARD(8.8X16X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
