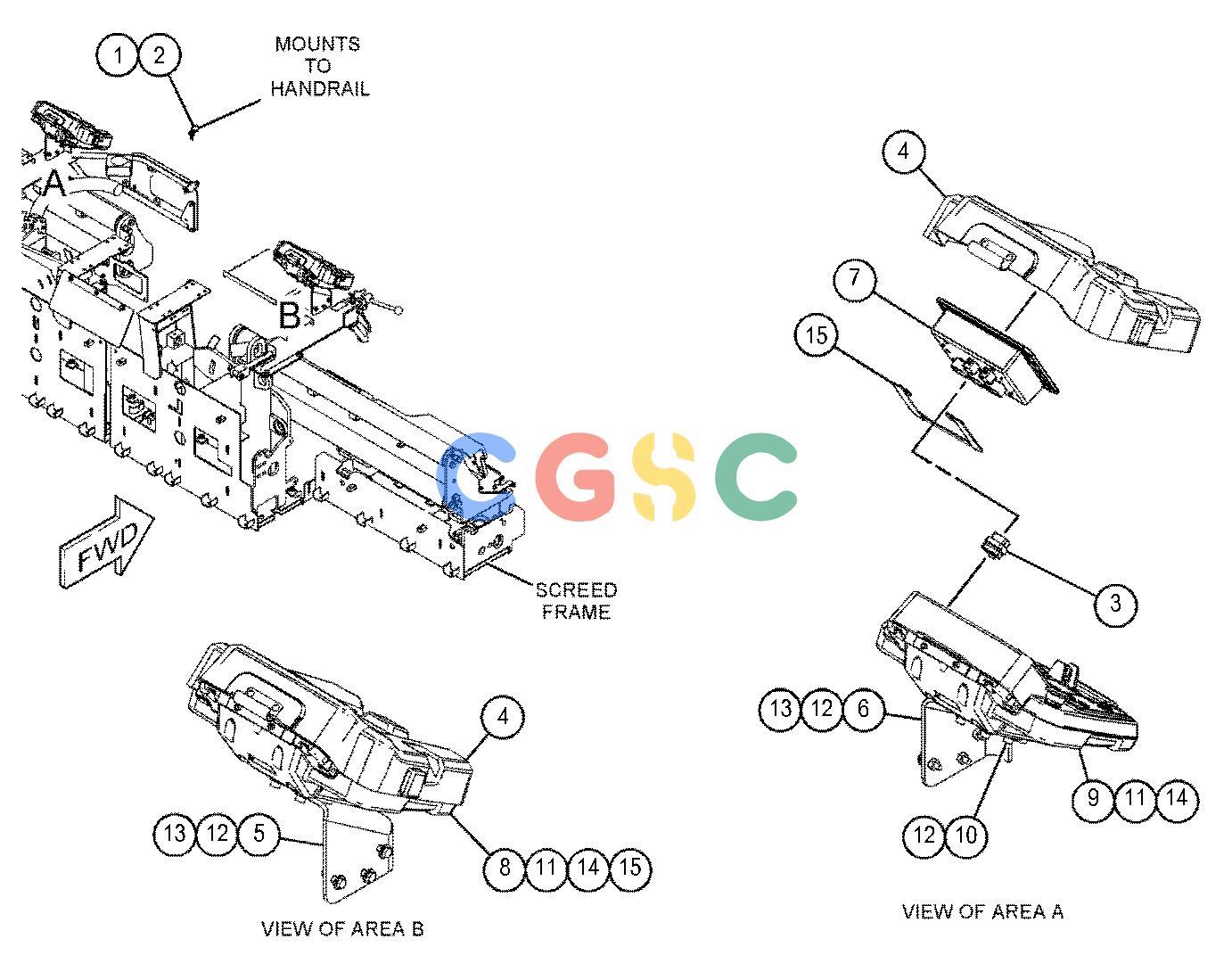

卡特零件查询（SE50） 473-3300: CONTROL & MTG GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
376 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-8500 | [2] | KEY | |
| 2. | 7K-1181 | [1] | STRAP-CABLE | |
| 3. | 351-8647 | [2] | PLUG AS-CONNECTOR(12-PIN) | |
| | | | (EACH INCLUDES) |
| | 8T-8737 | [12] | PLUG-SEAL | |
| | 241-8834 | [1] | PLUG AS-CONNECTOR(12-PIN) | |
| | 455-0709 | [1] | SEAL-CONNECTOR | |
| 4. | 425-5919 | [2] | COVER GP-ACCESS | |
| | | | (EACH INCLUDES) |
| | 6V-1634 | [9] | RIVET-POP | |
| | 226-0294J | [1] | LOCK AS | |
| | 226-0338 | [1] | CAM | |
| | 9X-2038 | [2] | WASHER(7X19X2-MM THK) | |
| 5. | 450-9055 | [1] | BRACKET AS(LH) | |
| 6. | 450-9056 | [1] | BRACKET AS(RH) | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| 7. | 459-2234 | [2] | MONITOR GP-OPERATOR | |
| 8. | 491-0879Y | [1] | CONTROL GP-SCREED(LH) | |
| 9. | 491-0880Y | [1] | CONTROL GP-SCREED(RH) | |
| 10. | 105-3477M | [8] | BOLT-SOCKET HEAD(M10X1.5X45-MM) | |
| 11. | 105-3486M | [8] | BOLT-SOCKET HEAD(M6X1X50-MM) | |
| 12. | 7X-7729 | [14] | WASHER(11X25X3-MM THK) | |
| 13. | 8T-4186M | [6] | BOLT(M10X1.5X40-MM) | |
| 14. | 9X-8256 | [8] | WASHER(6.6X12X2-MM THK) | |
| 15. | 541-6518 | [2] | PLATE | |
| | J | | REQUIRES CORPORATE KEY |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
