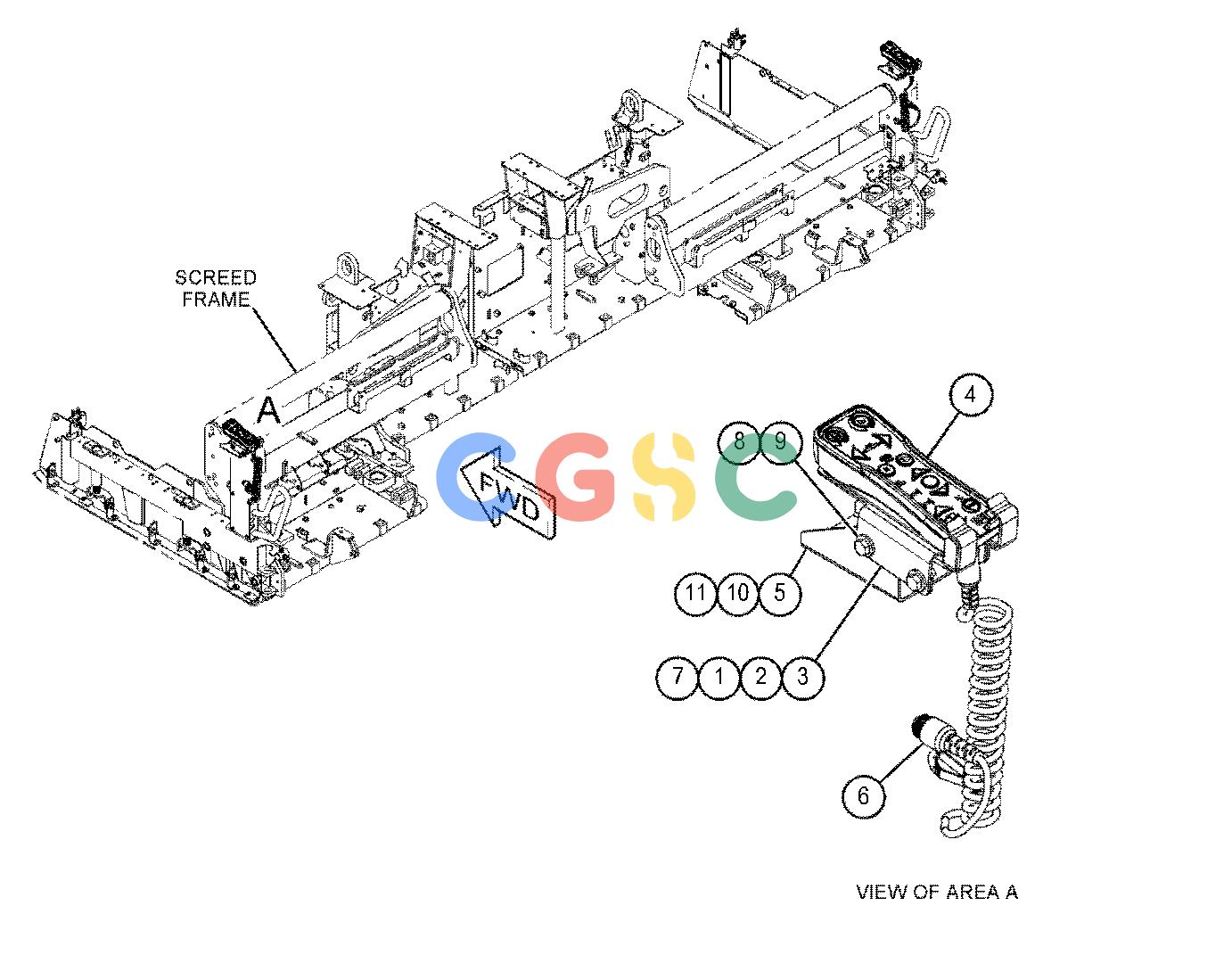

卡特零件查询（SE50） 473-3322: CONTROL & MTG GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
682 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4B-4863 | [4] | WASHER(4.7X11X1.2-MM THK) | |
| 2. | 433-5815 | [2] | CLIP | |
| 3. | 474-7991 | [2] | HOLDER AS | |
| 4. | 547-2369 | [2] | CONTROL GP-SCREED | |
| 5. | 474-7993 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| | 8T-3597M | [2] | NUT-WELD(M12X1.75-THD) | |
| 6. | 551-0884 | [2] | HARNESS AS-WIRING(SCREED) | |
| | | | (EACH INCLUDES) |
| | 237-7508 | [1] | LINK | |
| 7. | 6V-5210M | [4] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 8. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 9. | 8T-4136M | [8] | BOLT(M10X1.5X25-MM) | |
| 10. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 11. | 8T-4956M | [4] | BOLT(M12X1.75X35-MM) | |
| | M | | METRIC PART |
