卡特零件查询（SE50） 480-7055: CONTROL & MTG GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
713 次

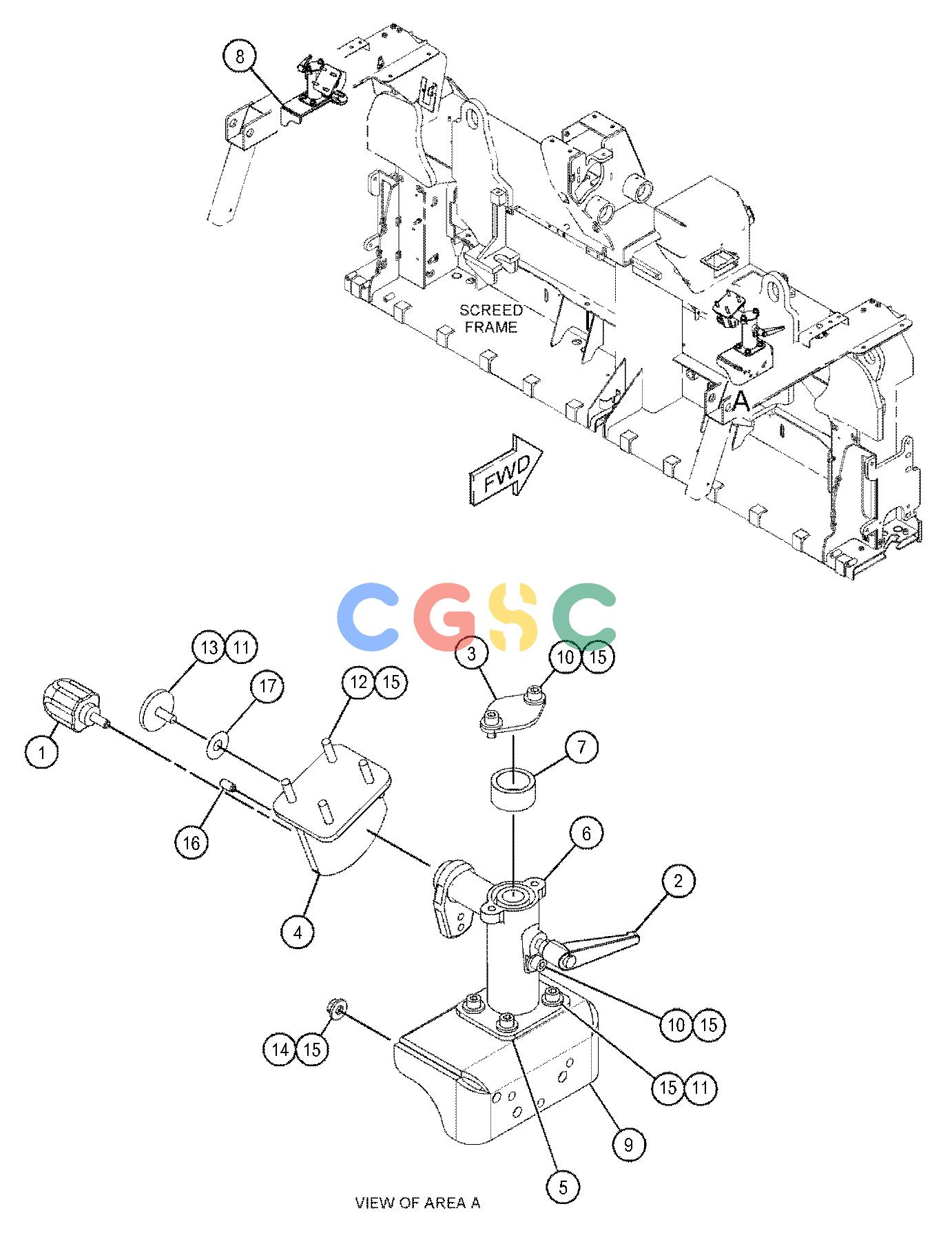

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 211-4942 | [2] | KNOB AS | |
| | | | (EACH INCLUDES) |
| | 8T-0277 | [1] | PIN-SPRING | |
| 2. | 320-2845 | [2] | LEVER | |
| 3. | 393-1230 | [2] | PLATE | |
| 4. | 393-1231 | [2] | TILT AS(CONTROL) | |
| 5. | 395-0582 | [2] | SUPPORT AS | |
| 6. | 398-5181 | [2] | SUPPORT | |
| 7. | 558-9067 | [4] | BEARING-SLEEVE | |
| 8. | 480-7051 | [1] | BRACKET AS(LH) | |
| 9. | 480-7052 | [1] | BRACKET AS(RH) | |
| | | | (EACH BRACKET AS INCLUDES) |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 10. | 101-7401M | [6] | BOLT-SOCKET HEAD(M10X1.5X20-MM) | |
| 11. | 101-7404M | [10] | BOLT-SOCKET HEAD(M10X1.5X30-MM) | |
| 12. | 105-3477M | [8] | BOLT-SOCKET HEAD(M10X1.5X45-MM) | |
| 13. | 115-6433 | [2] | WASHER(11X50X6-MM THK) | |
| 14. | 2Y-5829M | [6] | NUT(M10X1.5-THD) | |
| 15. | 7X-7729 | [28] | WASHER(11X25X3-MM THK) | |
| 16. | 8T-5089 | [4] | PIN-SPRING | |
| 17. | 388-6987B | [2] | SHIM(0.4-MM THK) | |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
