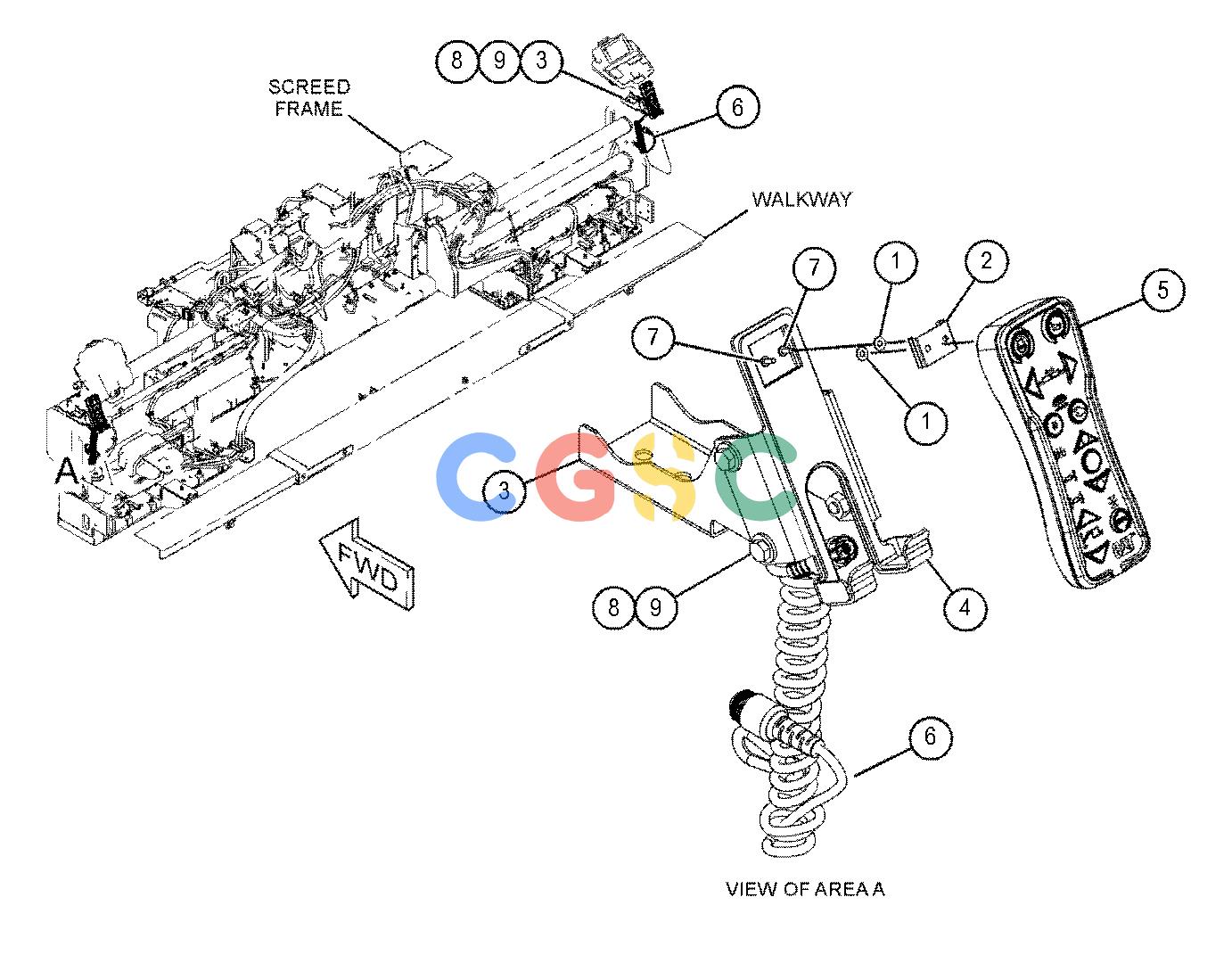

卡特零件查询（SE50） 473-3330: CONTROL & MTG GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
567 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4B-4863 | [4] | WASHER(4.7X11X1.2-MM THK) | |
| 2. | 433-5815 | [2] | CLIP | |
| 3. | 474-7988 | [2] | BRACKET AS | |
| | | | (EACH INCLUDES) |
| | 8T-3490M | [4] | NUT-WELD(M10X1.5-THD) | |
| 4. | 474-7991 | [2] | HOLDER AS | |
| 5. | 547-2369 | [2] | CONTROL GP-SCREED | |
| 6. | 551-0884 | [2] | HARNESS AS-WIRING(SCREED) | |
| | | | (EACH INCLUDES) |
| | 237-7508 | [1] | LINK | |
| 7. | 6V-5210M | [4] | SCREW-MACHINE(M4X0.7X10-MM) | |
| 8. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 9. | 8T-4137M | [8] | BOLT(M10X1.5X20-MM) | |
| | M | | METRIC PART |
