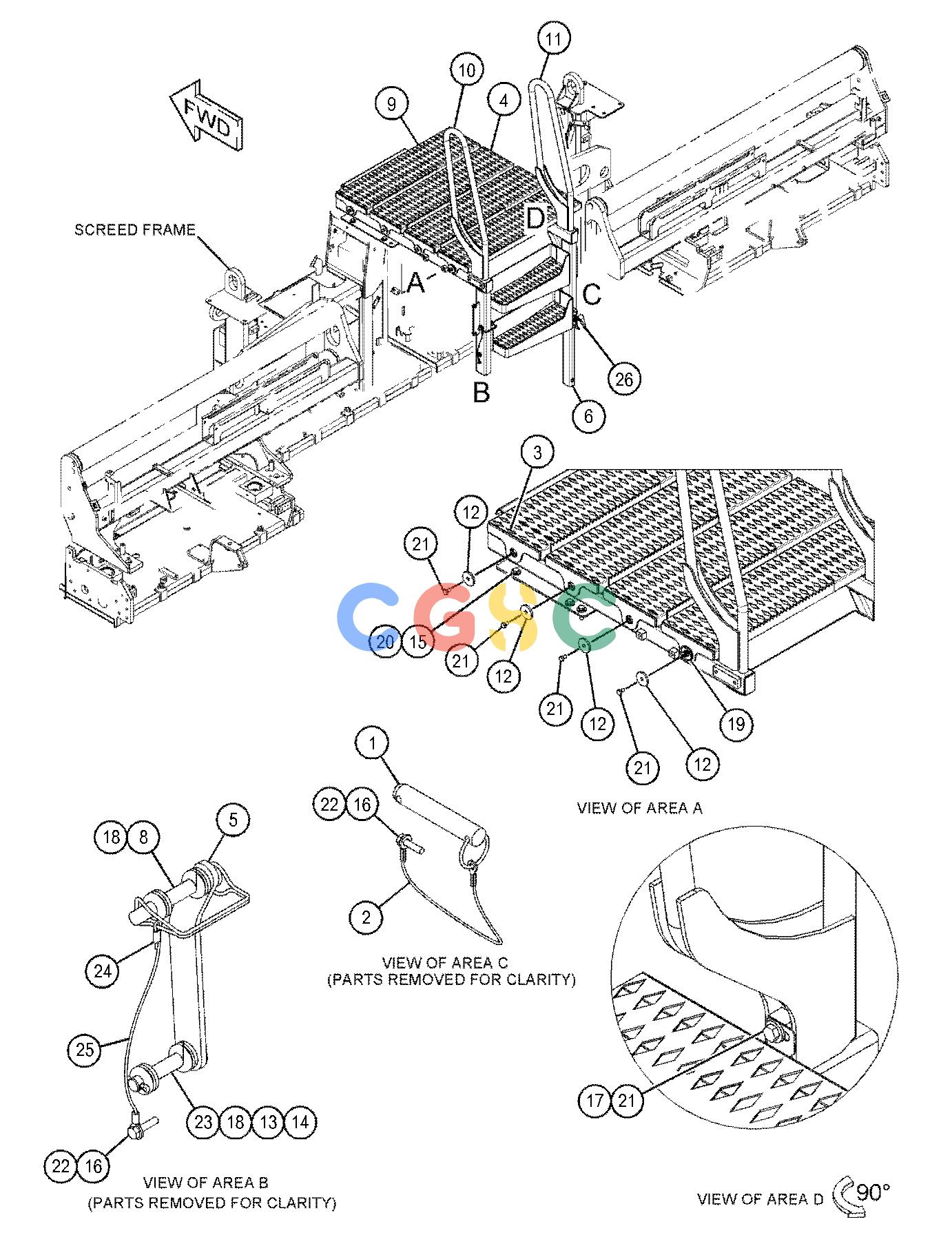

卡特零件查询（SE50） 437-0049: PLATFORM GP-OPERATOR
广数供应链运营团队, 18 02月, 2025，浏览：
925 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 054-8974 | [1] | PIN | |
| 2. | 252-5218 | [1] | LANYARD(371-MM) | |
| 3. | 439-2753 | [8] | STRIP | |
| 4. | 441-6195 | [3] | WALKWAY AS | |
| 5. | 441-6206 | [1] | LINK | |
| 6. | 478-1900 | [1] | TUBE | |
| 8. | 450-5809 | [1] | PIN | |
| 9. | 450-9070 | [1] | WALKWAY AS | |
| | 8T-3490M | [3] | NUT-WELD(M10X1.5-THD) | |
| | 441-6195 | [1] | WALKWAY AS | |
| 10. | 487-8297 | [1] | SUPPORT AS(LH) | |
| | 5G-6973M | [1] | LUG(M10X1.5-THD) | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [1] | LINK | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 8Y-3465M | [5] | BOSS(M10X1.5X12-MM) | |
| | 090-8247M | [2] | BLOCK(M10X1.5-MM) | |
| | 132-6964 | [1] | PLATE | |
| | 169-2554 | [1] | PLATE | |
| 11. | 487-8298 | [1] | SUPPORT AS(RH) | |
| | 5G-6973M | [1] | LUG(M10X1.5-THD) | |
| | 6V-9632M | [1] | NUT-WELD(M6X1-THD) | |
| | 7T-1099 | [2] | LINK | |
| | 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | |
| | 090-8247M | [3] | BLOCK(M10X1.5-MM) | |
| | 091-1736 | [1] | BLOCK | |
| | 132-6964 | [1] | PLATE | |
| | 169-2554 | [1] | PLATE | |
| 12. | 115-6433 | [4] | WASHER(11X50X6-MM THK) | |
| 13. | 132-0338 | [1] | WASHER-PLASTIC(13X31.7X0.8-MM THK) | |
| 14. | 3B-4615 | [1] | PIN-COTTER | |
| 15. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 16. | 6V-7357M | [2] | BOLT(M6X1X25-MM) | |
| 17. | 7X-7729 | [1] | WASHER(11X25X3-MM THK) | |
| 18. | 8K-1433 | [4] | GROMMET | |
| 19. | 8M-2784 | [4] | GROMMET | |
| 20. | 8T-4139M | [8] | BOLT(M12X1.75X30-MM) | |
| 21. | 8T-4191M | [5] | BOLT(M10X1.5X16-MM) | |
| 22. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 23. | 6S-9277 | [1] | PIN | |
| 24. | 5P-7958 | [1] | SLEEVE-CABLE SPLICE | |
| 25. | 5P-7957 | [1] | LANYARD | |
| 26. | 320-2845 | [1] | LEVER | |
| | M | | METRIC PART |
