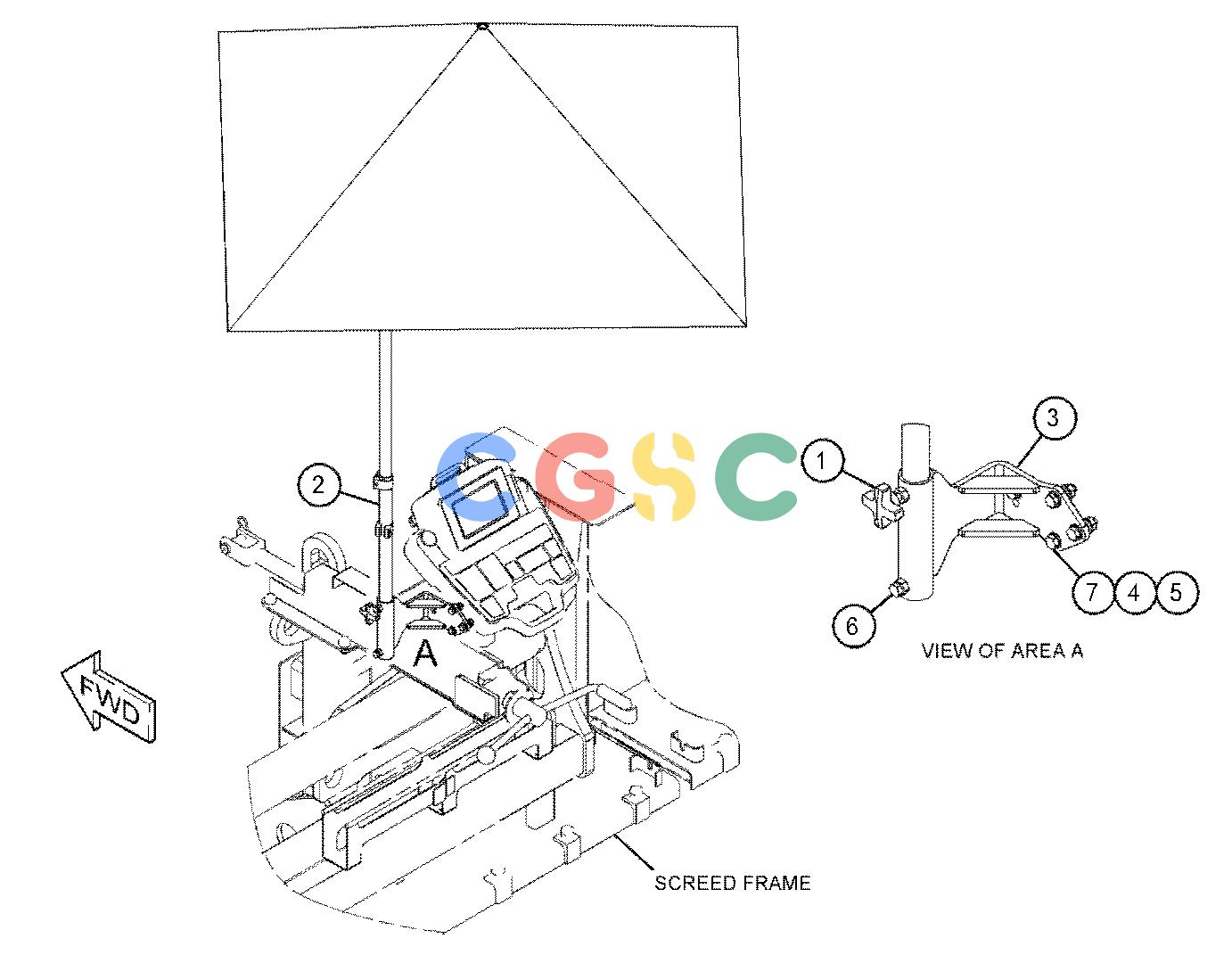

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7X-7943 | [1] | KNOB-CLAMP | |
| 2. | 187-6649 | [1] | UMBRELLA GP | |
| 3. | 467-4276 | [1] | PLATE AS | |
| 8T-3490M | [2] | NUT-WELD(M10X1.5-THD) | ||
| 4. | 344-5675M | [4] | NUT(M10X1.5-THD) | |
| 5. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 6. | 8T-4185M | [1] | BOLT(M10X1.5X50-MM) | |
| 7. | 8T-4196M | [4] | BOLT(M10X1.5X35-MM) | |
| M | METRIC PART | |||
