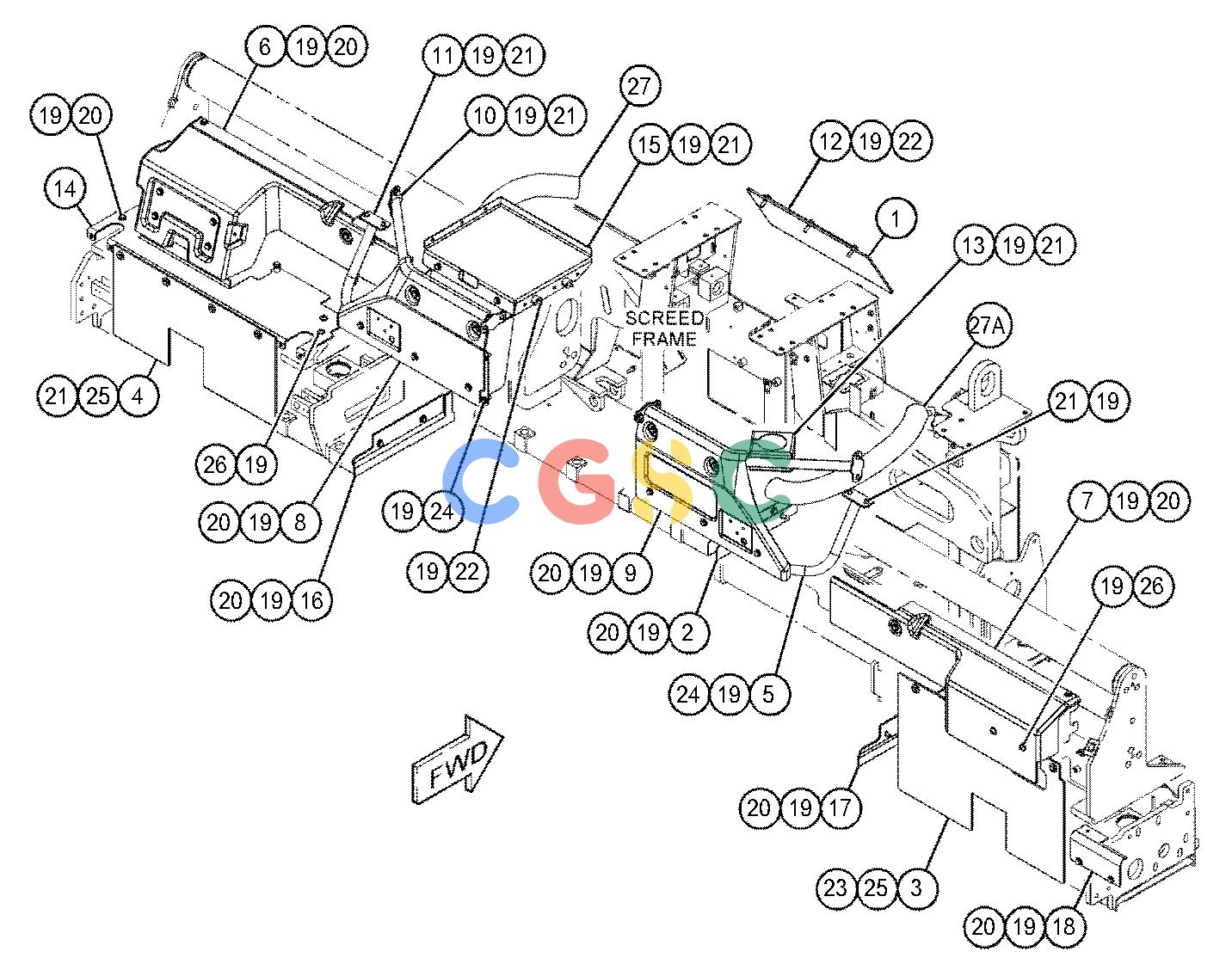

卡特零件查询（SE50） 437-0061: COVER GP-SCREED
广数供应链运营团队, 18 02月, 2025，浏览：
281 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 399-1702 | [1] | COVER-RUBBER | |
| 2. | 417-0618 | [2] | PLATE | |
| 3. | 439-4436 | [1] | COVER-RUBBER | |
| 4. | 439-4437 | [1] | COVER-RUBBER | |
| 5. | 439-4440 | [1] | TUBE AS | |
| 6. | 441-6215 | [1] | COVER(LH) | |
| 7. | 441-6216 | [1] | COVER(RH) | |
| 8. | 441-6217 | [1] | COVER(REAR, LH) | |
| 9. | 441-6218 | [1] | COVER(REAR, RH) | |
| 10. | 441-6222 | [1] | TUBE AS | |
| 11. | 441-6225 | [1] | TUBE AS | |
| 12. | 441-6244 | [1] | PLATE | |
| 13. | 450-9053 | [1] | TUBE AS | |
| 14. | 462-9059 | [1] | COVER AS | |
| | 8T-3490M | [8] | NUT-WELD(M10X1.5-THD) | |
| | 9R-2821M | [1] | BOSS(M10X1.5X15-MM) | |
| 15. | 463-3985 | [1] | PLATE AS | |
| | 1W-8793 | [2] | SPACER(13.8X30X20-MM THK) | |
| 16. | 463-3989 | [1] | COVER(EXTENDER, LH) | |
| 17. | 463-3990 | [1] | COVER(EXTENDER, RH) | |
| 18. | 466-1553 | [2] | COVER | |
| 19. | 7X-7729 | [60] | WASHER(11X25X3-MM THK) | |
| 20. | 8T-4136M | [33] | BOLT(M10X1.5X25-MM) | |
| 21. | 8T-4137M | [18] | BOLT(M10X1.5X20-MM) | |
| 22. | 8T-4186M | [5] | BOLT(M10X1.5X40-MM) | |
| 23. | 8T-4191M | [4] | BOLT(M10X1.5X16-MM) | |
| 24. | 8T-4195M | [4] | BOLT(M10X1.5X30-MM) | |
| 25. | 8T-4222 | [8] | WASHER-PLATED(11X32X2.5-MM THK) | |
| 26. | 9X-2040M | [4] | SCREW-TRUSS HEAD(M10X1.5X25-MM) | |
| 27. | 451-5814E | | GUARD(65-CM) | |
| 27A. | 451-5814E | | GUARD(80-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
