卡特零件查询（SE50） 437-9828: ARM GP-DROP
广数供应链运营团队, 18 02月, 2025，浏览：
1013 次

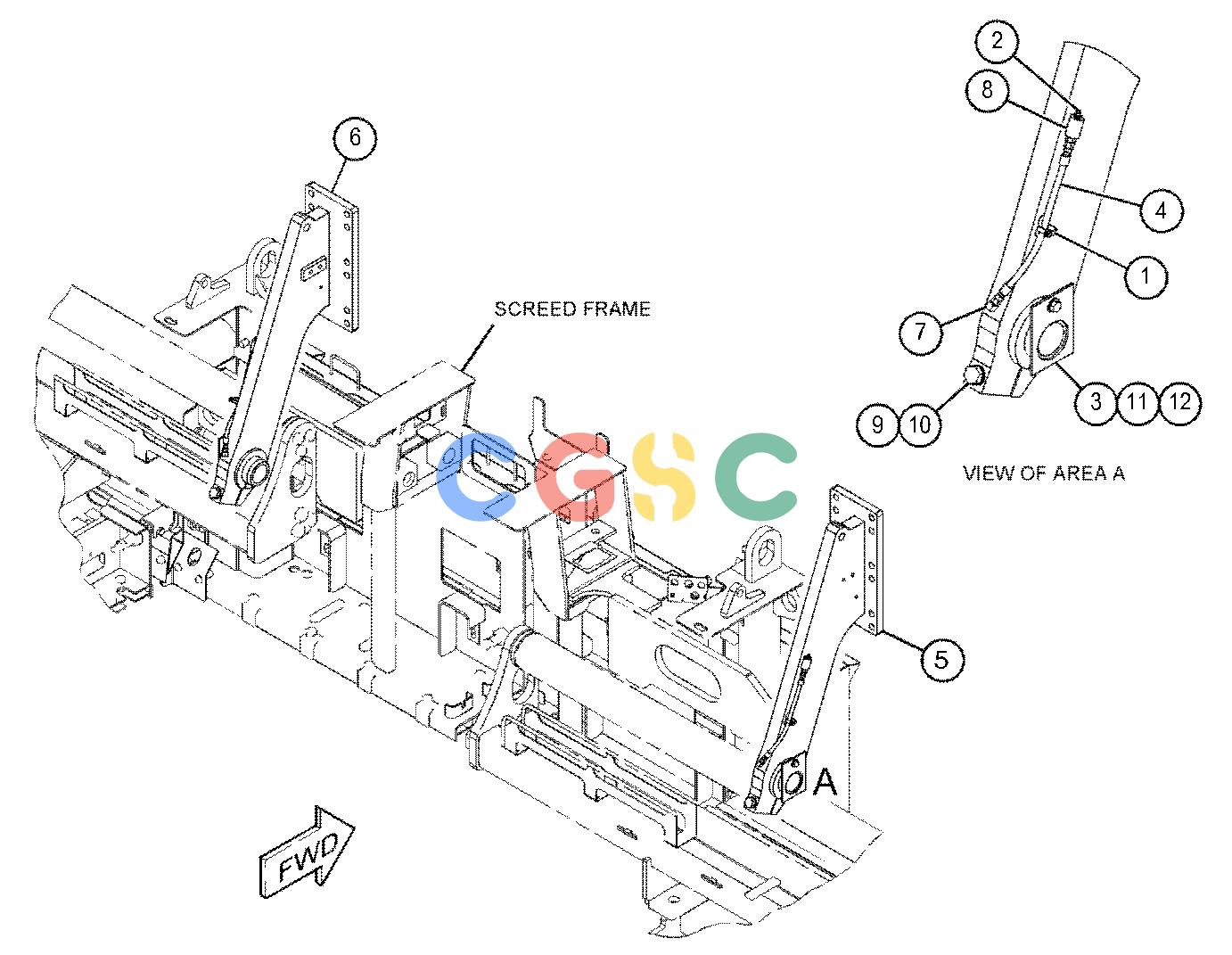

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181 | [2] | STRAP-CABLE | |
| 2. | 098-2599 | [2] | FITTING-GREASE | |
| 3. | 112-5399 | [2] | PIN AS-PIVOT | |
| 4. | 425-2209I | [2] | HOSE AS | |
| 5. | 490-0187 | [1] | ARM AS(RH) | |
| 6. | 490-0209 | [1] | ARM AS(LH) | |
| | | | (EACH ARM AS INCLUDES) |
| | 4D-0659 | [1] | BOSS | |
| | 7T-1099 | [1] | LINK | |
| 7. | 2D-1683 | [2] | FITTING(1/8-27 PTF) | |
| 8. | 4M-5317 | [2] | BUSHING-REDUCER | |
| 9. | 7X-2532M | [2] | BOLT(M20X2.5X130-MM) | |
| 10. | 8T-4123 | [2] | WASHER(22X35X3.5-MM THK) | |
| 11. | 8T-4192M | [2] | BOLT(M12X1.75X25-MM) | |
| 12. | 8T-4223 | [2] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
