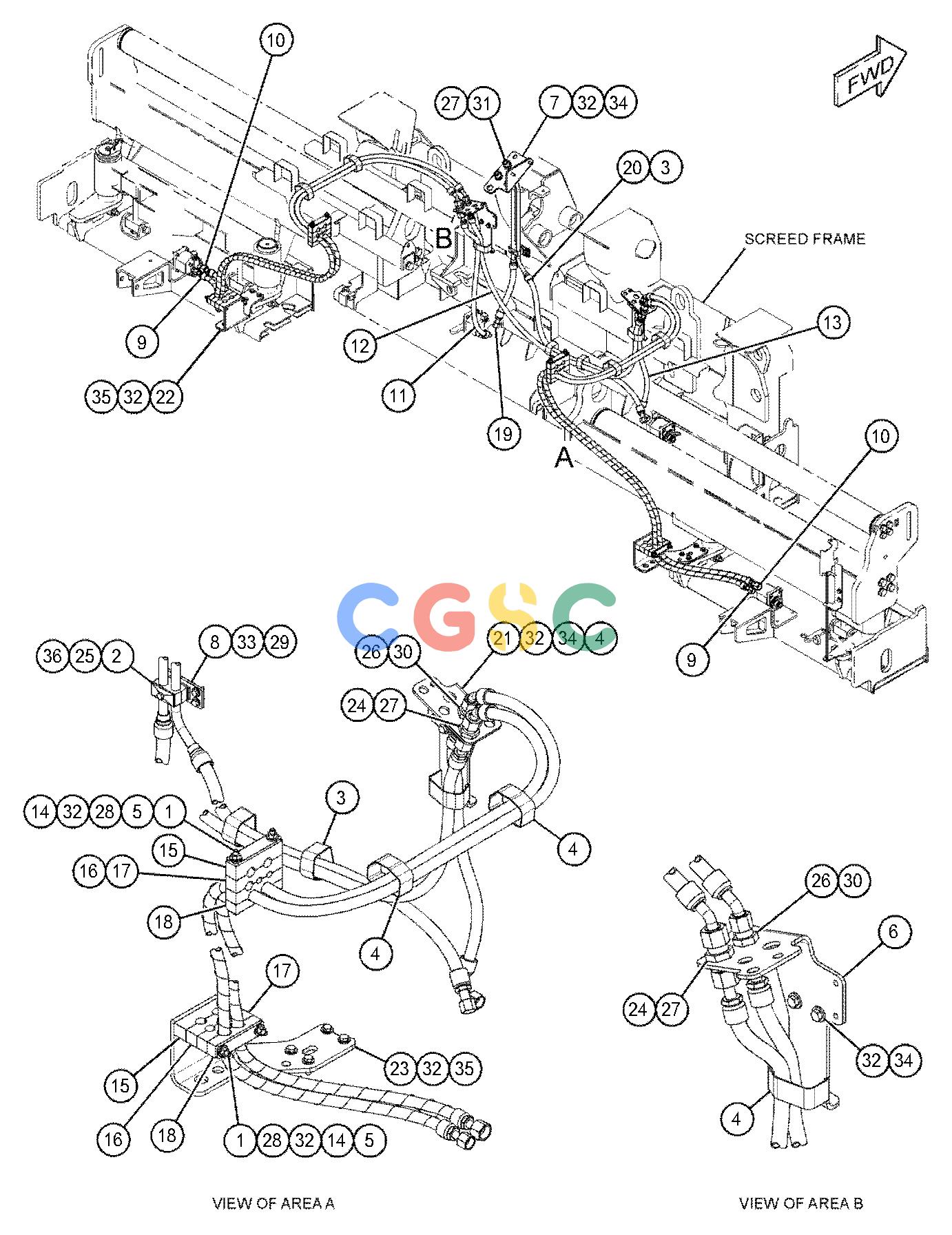

卡特零件查询（SE50） 390-4833: LINES GP-VIBRATORY
广数供应链运营团队, 18 02月, 2025，浏览：
413 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5G-7335 | [8] | ROD | |
| 2. | 102-8705 | [1] | PLATE(TOP) | |
| 3. | 364-4568 | [2] | STRAP | |
| 4. | 364-4569 | [6] | STRAP | |
| 5. | 398-6837 | [4] | PLATE | |
| 6. | 415-1791 | [1] | PLATE | |
| 7. | 416-2272 | [1] | PLATE | |
| 8. | 416-2273 | [1] | PLATE AS | |
| | 102-8706 | [1] | PLATE AS | |
| 9. | 416-4813I | [2] | HOSE AS | |
| 10. | 416-4814I | [2] | HOSE AS | |
| 11. | 416-4815I | [1] | HOSE AS | |
| 12. | 416-4816I | [1] | HOSE AS | |
| 13. | 416-4817I | [1] | HOSE AS | |
| 14. | 416-4825 | [8] | SPACER(11.2X16X109-MM THK) | |
| 15. | 416-4826 | [4] | BLOCK | |
| 16. | 416-4829 | [4] | BLOCK | |
| 17. | 416-4830 | [4] | BLOCK | |
| 18. | 416-4831 | [4] | BLOCK | |
| 19. | 416-4836 | [1] | HOSE & TUBE AS | |
| 20. | 416-4837 | [1] | HOSE & TUBE AS | |
| 21. | 425-1209 | [1] | PLATE | |
| 22. | 450-6575 | [1] | PLATE | |
| 23. | 450-6576 | [1] | PLATE | |
| 24. | 148-8455 | [2] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8997 | [1] | UNION | |
| | 6V-9746 | [2] | SEAL-O-RING | |
| 25. | 4V-0611 | [2] | CLAMP | |
| 26. | 169-7409 | [2] | UNION AS | |
| | | | (EACH INCLUDES) |
| | 6V-8996 | [1] | UNION | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 27. | 2P-1293 | [4] | LOCKNUT(1-3/16-12-THD) | |
| 28. | 344-5675M | [16] | NUT(M10X1.5-THD) | |
| 29. | 5P-4116 | [2] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 30. | 6V-9170 | [2] | NUT-BULKHEAD(1-14-THD) | |
| 31. | 6V-9746 | [2] | SEAL-O-RING | |
| 32. | 7X-7729 | [22] | WASHER(11X25X3-MM THK) | |
| 33. | 8T-4908M | [2] | BOLT(M8X1.25X25-MM) | |
| 34. | 8T-4195M | [6] | BOLT(M10X1.5X30-MM) | |
| 35. | 8T-4196M | [8] | BOLT(M10X1.5X35-MM) | |
| 36. | 8T-6912M | [1] | BOLT(M8X1.25X50-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
