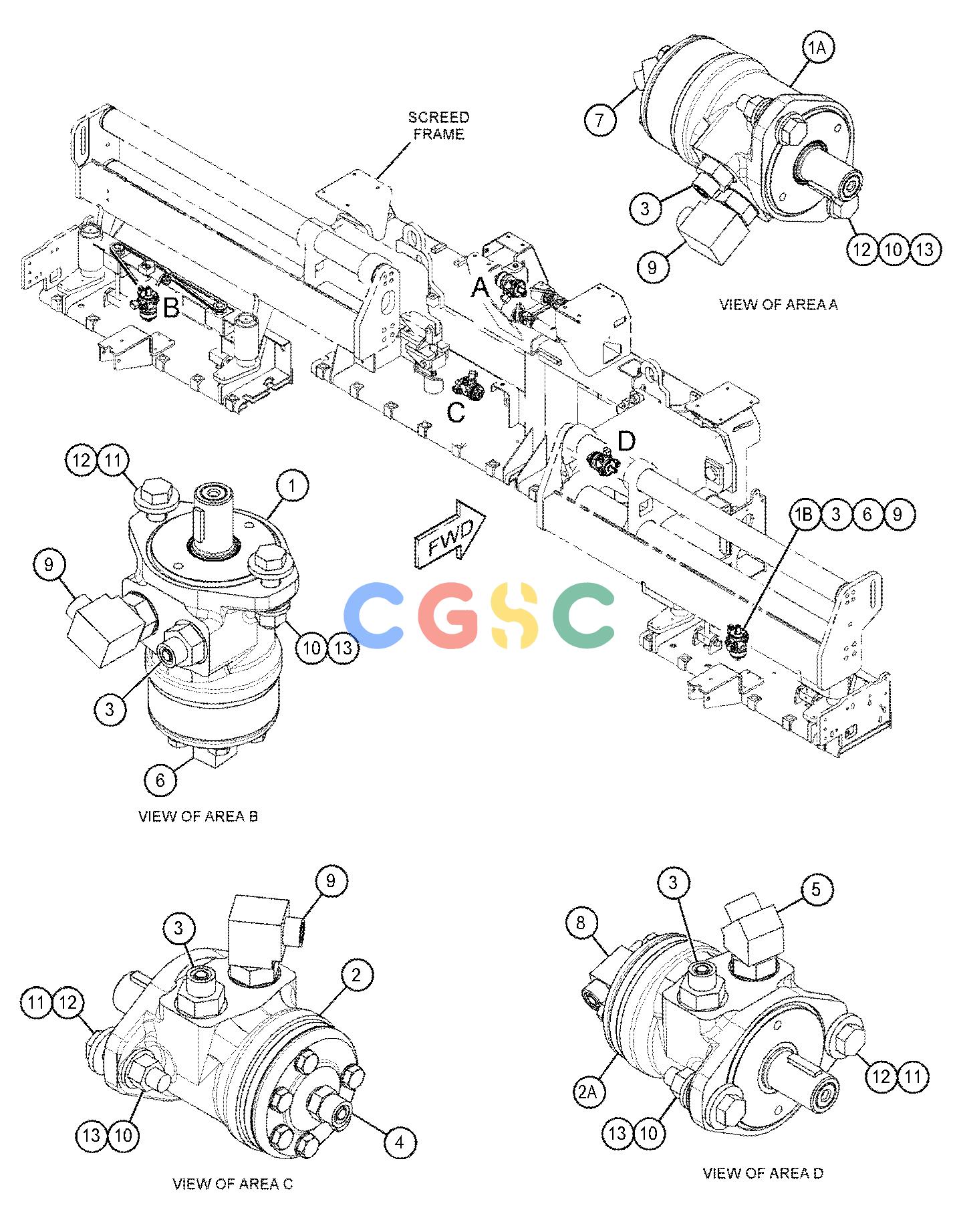

卡特零件查询（SE50） 399-0743: MOTOR & MOUNTING GP
广数供应链运营团队, 18 02月, 2025，浏览：
286 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 415-7619J | [1] | MOTOR GP-GEROTOR(EXTENDER, LH) | |
| 1A. | 415-7619J | [1] | MOTOR GP-GEROTOR(CROWN CONTROL) | |
| 1B. | 415-7619J | [1] | MOTOR GP-GEROTOR(EXTENDER, RH) | |
| 2. | 415-7620H | [1] | MOTOR GP-GEROTOR(MAIN, LH) | |
| 2A. | 415-7620H | [1] | MOTOR GP-GEROTOR(MAIN, RH) | |
| | | | (EACH MOTOR GP INCLUDES) |
| | 1B-8714 | [1] | KEY-WOODRUFF | |
| 3. | 148-8319 | [5] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8715 | [1] | CONNECTOR | |
| 4. | 148-8326 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9872 | [1] | CONNECTOR | |
| 5. | 148-8358 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8624 | [1] | ELBOW | |
| 6. | 148-8369 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 7. | 148-8385 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9000 | [1] | ELBOW | |
| 8. | 156-4281 | [1] | TEE AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [2] | SEAL-O-RING | |
| | 7X-0838 | [1] | TEE-O-RING | |
| 9. | 205-3692 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 9X-2134 | [1] | ELBOW | |
| 10. | 329-3356M | [10] | NUT(M12X1.75-THD) | |
| 11. | 5P-1076 | [8] | WASHER-HARD(13.5X30X4-MM THK) | |
| 12. | 8T-4194M | [10] | BOLT(M12X1.75X50-MM) | |
| 13. | 8T-4223 | [12] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 454-3916HJ | [1] | KIT-SEAL | |
| | | | (INCLUDES WASHERS, LIP TYPE SEAL, O-RING SEALS & DUST SEAL) |
| | H | | KIT MARKED H SERVICES PART(S) MARKED H |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
