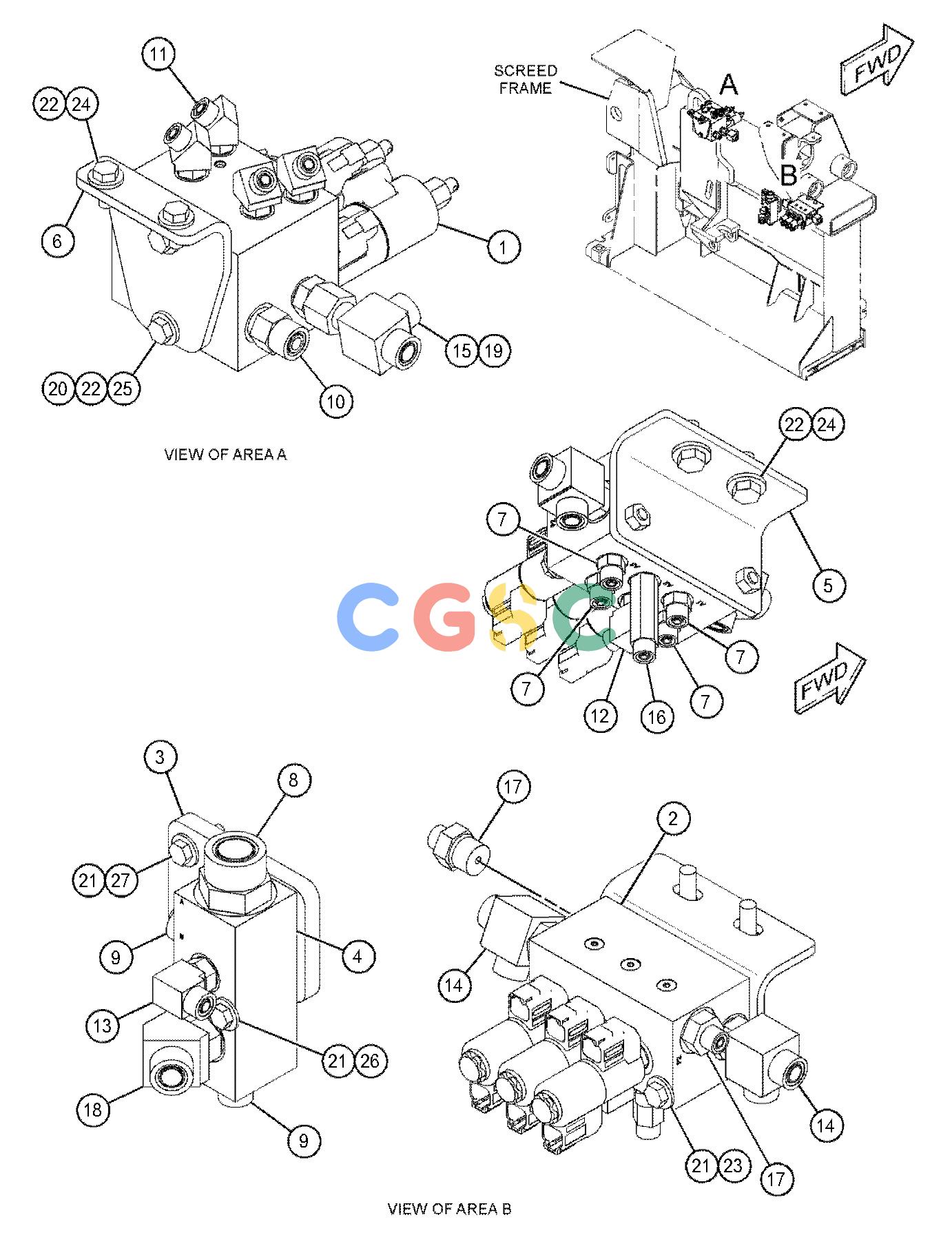

卡特零件查询（SE50） 390-4765: VALVE & MOUNTING GP
广数供应链运营团队, 18 02月, 2025，浏览：
989 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 415-2541Y | [1] | VALVE GP-SOLENOID(EXTENDER WIDTH, RH, LH) | |
| 2. | 415-2813 | [1] | VALVE GP-SOLENOID(SLOPE) | |
| | 449-2540 | [6] | COIL(24-VOLT) | |
| | 454-7924J | [3] | VALVE GP-SOLENOID(SCREED HOIST RAISE, LOWER) | |
| 3. | 416-2276 | [1] | PLATE | |
| 4. | 416-4838 | [1] | MANIFOLD | |
| 5. | 417-0621 | [1] | PLATE AS | |
| | 8T-3612M | [2] | NUT-WELD(M8X1.25-THD) | |
| 6. | 417-0622 | [1] | PLATE | |
| 7. | 148-8316 | [4] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 8. | 148-8335 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 9. | 148-8340 | [2] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-8639 | [1] | CONNECTOR | |
| 10. | 148-8342 | [1] | CONNECTOR AS | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8632 | [1] | CONNECTOR | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 11. | 148-8353 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 12. | 148-8369 | [1] | ELBOW AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8628 | [1] | ELBOW | |
| 13. | 148-8378 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8724 | [1] | ELBOW | |
| 14. | 148-8428 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [2] | SEAL-O-RING | |
| | 6V-8782 | [1] | TEE | |
| 15. | 148-8446 | [1] | TEE AS-SWIVEL | |
| | 6V-9838 | [1] | TEE-SWIVEL | |
| | 7J-9108 | [2] | SEAL-O-RING | |
| 16. | 150-4042 | [1] | CONNECTOR AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-9010 | [1] | CONNECTOR-PORT | |
| 17. | 154-5232 | [2] | ADAPTER AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 112-9783 | [1] | ADAPTER | |
| 18. | 155-3504 | [1] | ELBOW AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 6V-9003 | [1] | ELBOW | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| 19. | 161-8560 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 8C-6758 | [1] | CONNECTOR | |
| 20. | 344-5675M | [2] | NUT(M10X1.5-THD) | |
| 21. | 5P-4116 | [6] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 22. | 7X-7729 | [8] | WASHER(11X25X3-MM THK) | |
| 23. | 8T-3647M | [2] | BOLT(M8X1.25X80-MM) | |
| 24. | 8T-4136M | [4] | BOLT(M10X1.5X25-MM) | |
| 25. | 8T-5436M | [2] | BOLT(M10X1.5X130-MM) | |
| 26. | 8T-6870M | [2] | BOLT(M8X1.25X70-MM) | |
| 27. | 8T-7547M | [2] | BOLT(M8X1.25X30-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 446-1412J | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEALS & BACK UP RINGS) |
| | 446-5507J | [1] | KIT-NUT | |
| | | | (INCLUDES NUT COIL & O-RING SEALS) |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
