卡特零件查询（434F2） 440-3603: LINES GP-LOAD CONTROL VALVE

广数供应链运营团队, 18 02月, 2025，浏览： 252 次

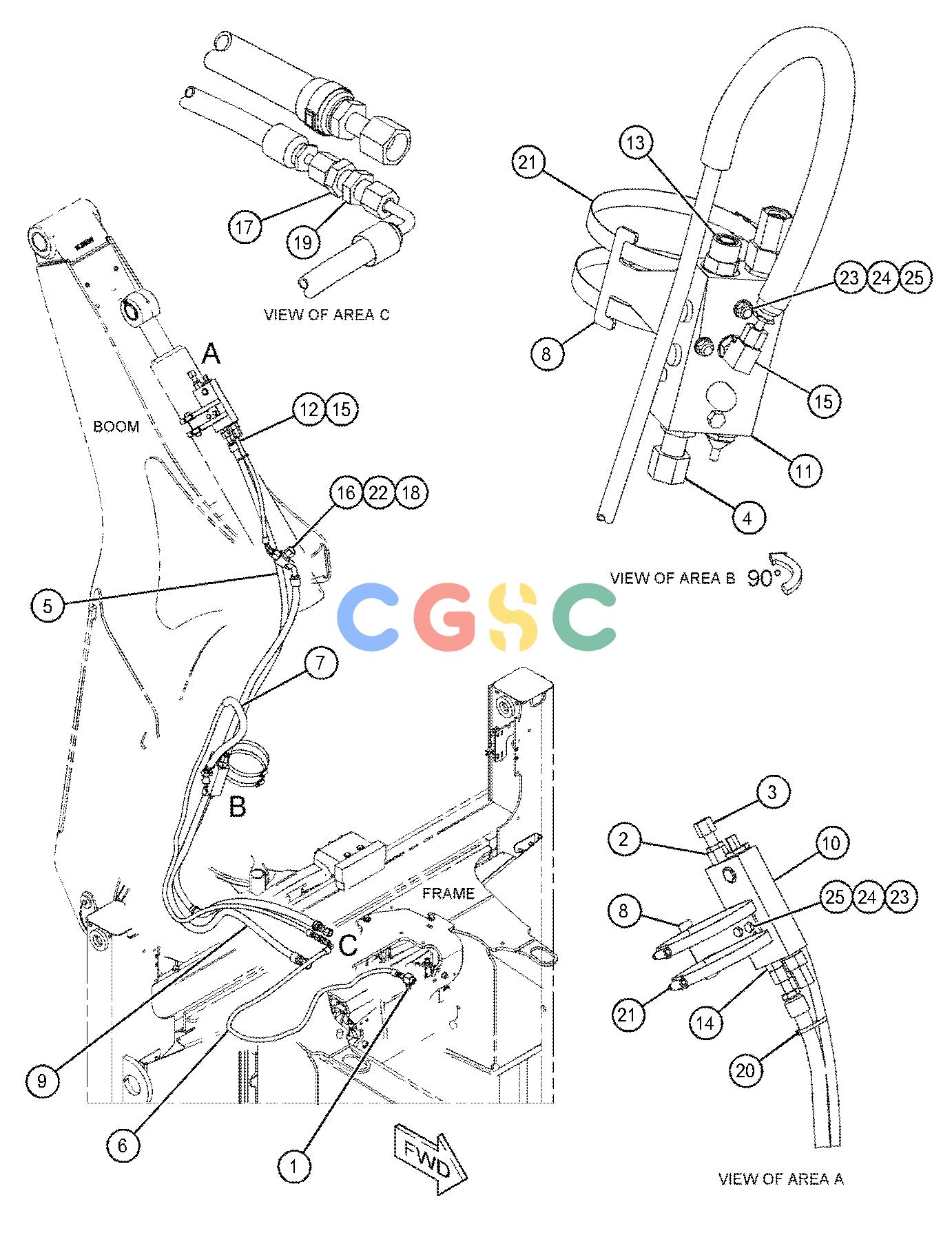

Pos.	Part No	Qty	Parts name
1.	148-8423	[1]	TEE AS
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	8T-3311	[1]	TEE
2.	161-9916	[1]	ADAPTER AS
	2M-9780	[1]	SEAL-O-RING
	6V-7420	[1]	ADAPTER
3.	250-1440	[1]	ADAPTER AS
	3K-0360	[1]	SEAL-O-RING
	7X-3164	[1]	ADAPTER-SWIVEL
4.	302-1413	[1]	ADAPTER AS
	2M-9780	[1]	SEAL-O-RING
	7X-3165	[1]	ADAPTER
5.	329-4508I	[1]	HOSE AS
6.	330-6126I	[1]	HOSE AS
7.	339-2886I	[1]	HOSE AS
8.	339-4287	[2]	BRACKET
9.	343-4301I	[1]	HOSE AS
10.	421-5432	[1]	VALVE GP-LOAD CONTROL(STICK)
11.	421-5433	[1]	VALVE GP-LOAD CONTROL(BOOM)
12.	439-9924I	[1]	HOSE AS
13.	148-8315	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8642	[1]	CONNECTOR
	7J-9108	[1]	SEAL-O-RING
14.	148-8345	[1]	CONNECTOR AS
	2M-9780	[1]	SEAL-O-RING
	6V-8398	[1]	SEAL-O-RING
	6V-8638	[1]	CONNECTOR
15.	148-8368	[2]	ELBOW AS
			(EACH INCLUDES)
	3J-1907	[1]	SEAL-O-RING
	4J-5477	[1]	SEAL-O-RING
	6V-8627	[1]	ELBOW
16.	150-4031	[1]	TEE AS
	6V-9845	[1]	TEE-SWIVEL
	7J-9108	[2]	SEAL-O-RING
17.	150-4052	[1]	UNION AS
	4J-5477	[2]	SEAL-O-RING
	6V-8993	[1]	UNION
18.	215-3191	[1]	REDUCER AS
	4J-5477	[1]	SEAL-O-RING
	6V-8937	[1]	REDUCER
19.	2P-1279	[1]	LOCKNUT(9/16-18-THD)
20.	3S-2093	[1]	STRAP-CABLE
21.	5P-0599	[4]	CLAMP-BAND
22.	9X-6581	[1]	NUT-O-RING SEAL(1-14-THD)
23.	6V-9189M	[4]	LOCKNUT(M8X1.25-THD)
24.	8T-4224	[4]	WASHER-HARD(8.8X16X2-MM THK)
25.	8T-7329M	[4]	BOLT(M8X1.25X55-MM)
	I		REFER TO HYDRAULIC INFORMATION SYSTEM
	M		METRIC PART
