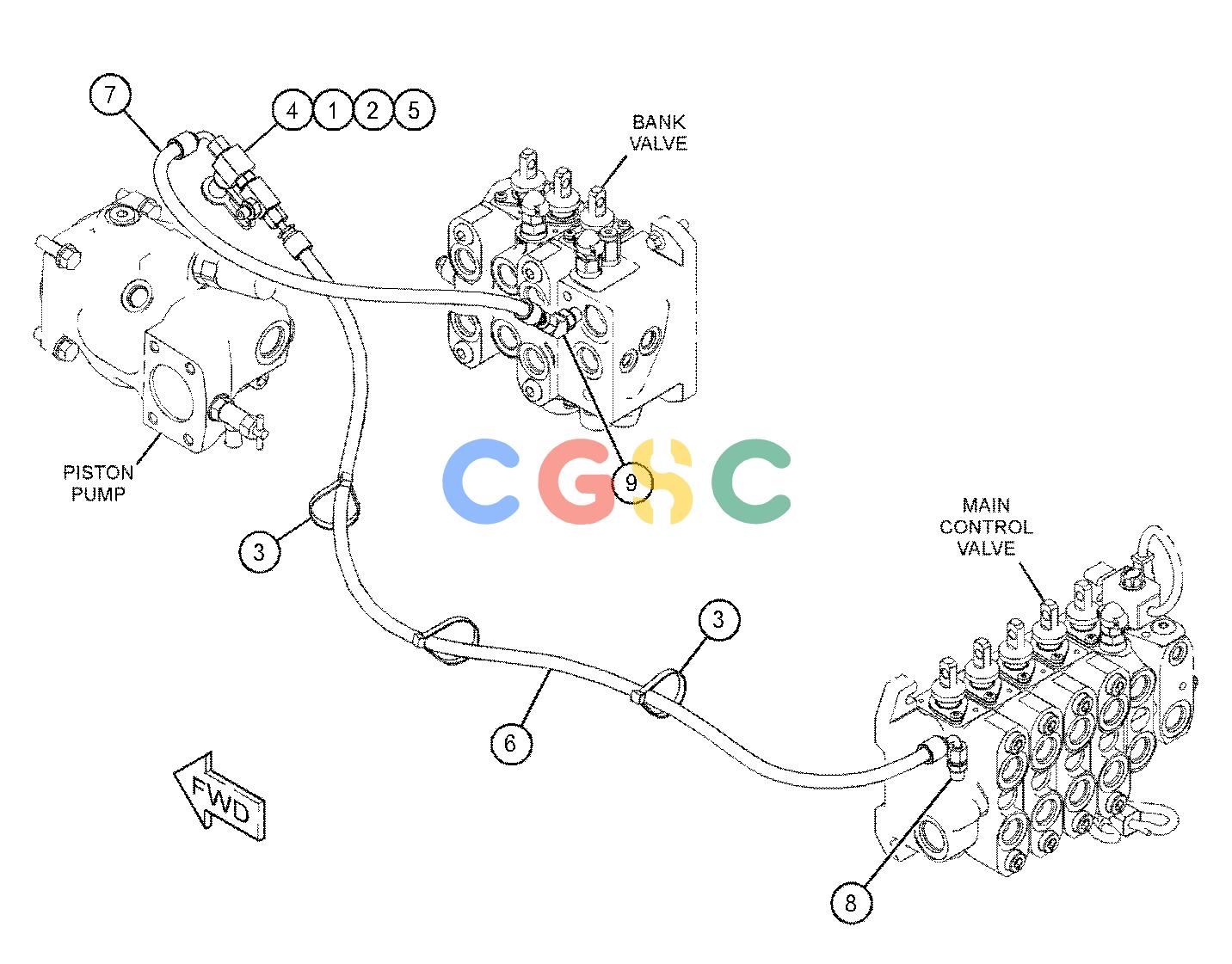

卡特零件查询（434F2） 391-9950: LINES GP-PILOT
广数供应链运营团队, 18 02月, 2025，浏览：
689 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| 3. | 7K-1181 | [3] | STRAP-CABLE | |
| 4. | 229-5336 | [1] | TEE AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 081-5648 | [1] | TEE(MALE) | |
| 5. | 351-0290 | [1] | ADAPTER AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 308-9568 | [1] | ADAPTER-TEE | |
| 6. | 392-2435I | [1] | HOSE AS | |
| 7. | 396-6935I | [1] | HOSE AS | |
| 8. | 148-8325 | [1] | CONNECTOR AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8641 | [1] | CONNECTOR | |
| 9. | 150-3033 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
