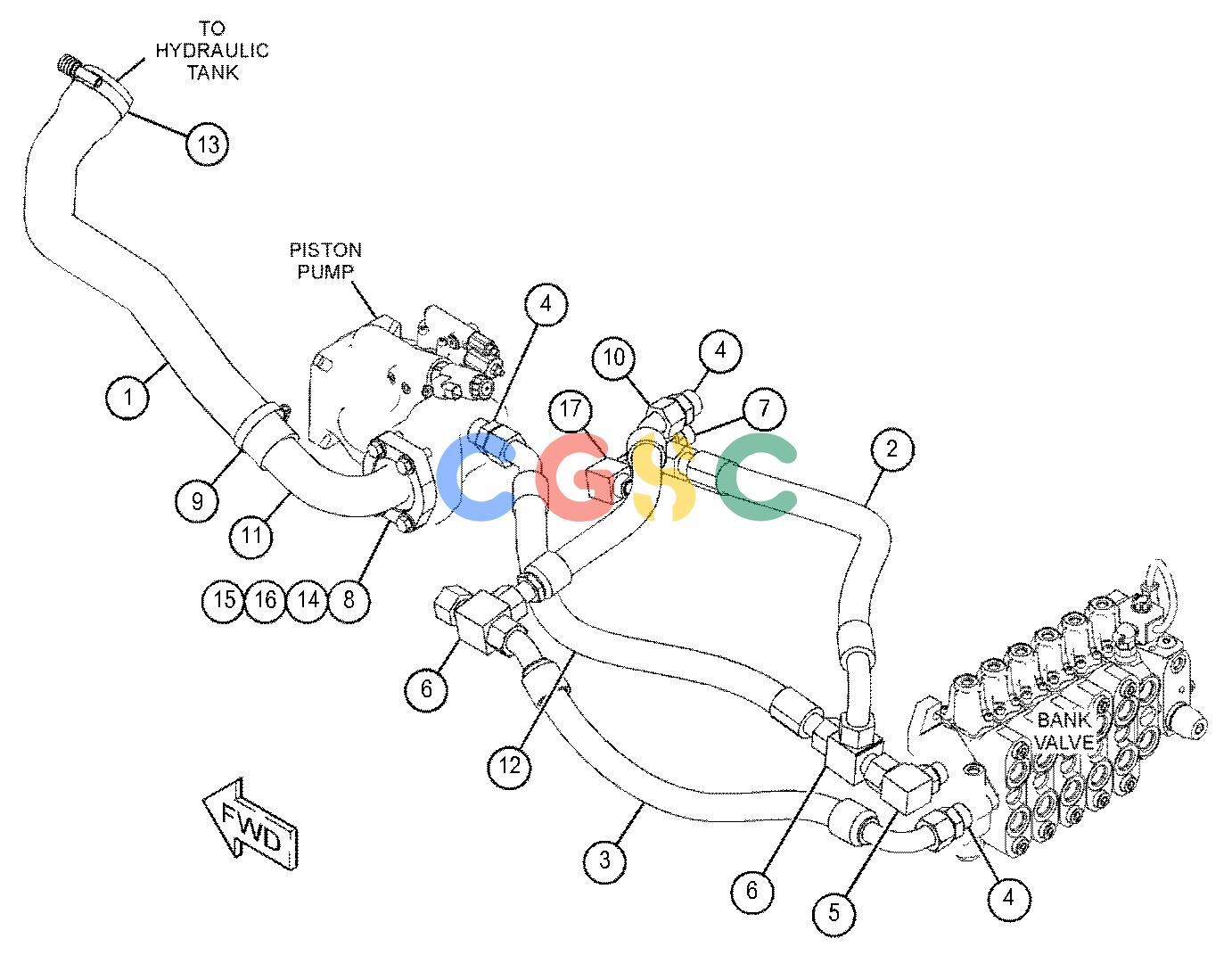

卡特零件查询（434F2） 394-7784: LINES GP-PUMP
广数供应链运营团队, 18 02月, 2025，浏览：
721 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 394-8747 | [1] | HOSE | |
| 2. | 396-2726I | [1] | HOSE AS | |
| 3. | 396-2727I | [1] | HOSE AS | |
| 4. | 148-8335 | [3] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-8635 | [1] | CONNECTOR | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 5. | 148-8362 | [1] | ELBOW AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 8T-6684 | [1] | ELBOW | |
| 6. | 148-8429 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 5K-9090 | [2] | SEAL-O-RING | |
| | 6V-9840 | [1] | TEE-SWIVEL | |
| 7. | 164-5641 | [1] | TEE AS | |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 128-7625 | [1] | TEE | |
| 8. | 1P-4584 | [2] | FLANGE-HALF | |
| 9. | 335-9214 | [1] | CLAMP-BAND | |
| 10. | 363-2679I | [1] | HOSE AS | |
| 11. | 370-3970 | [1] | TUBE AS | |
| 12. | 396-2725I | [1] | HOSE AS | |
| 13. | 144-0367 | [1] | CLAMP-HOSE | |
| 14. | 6J-2680 | [1] | SEAL-O-RING | |
| 15. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 16. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 17. | 148-8392 | [1] | ELBOW AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 6V-9853 | [1] | ELBOW | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
