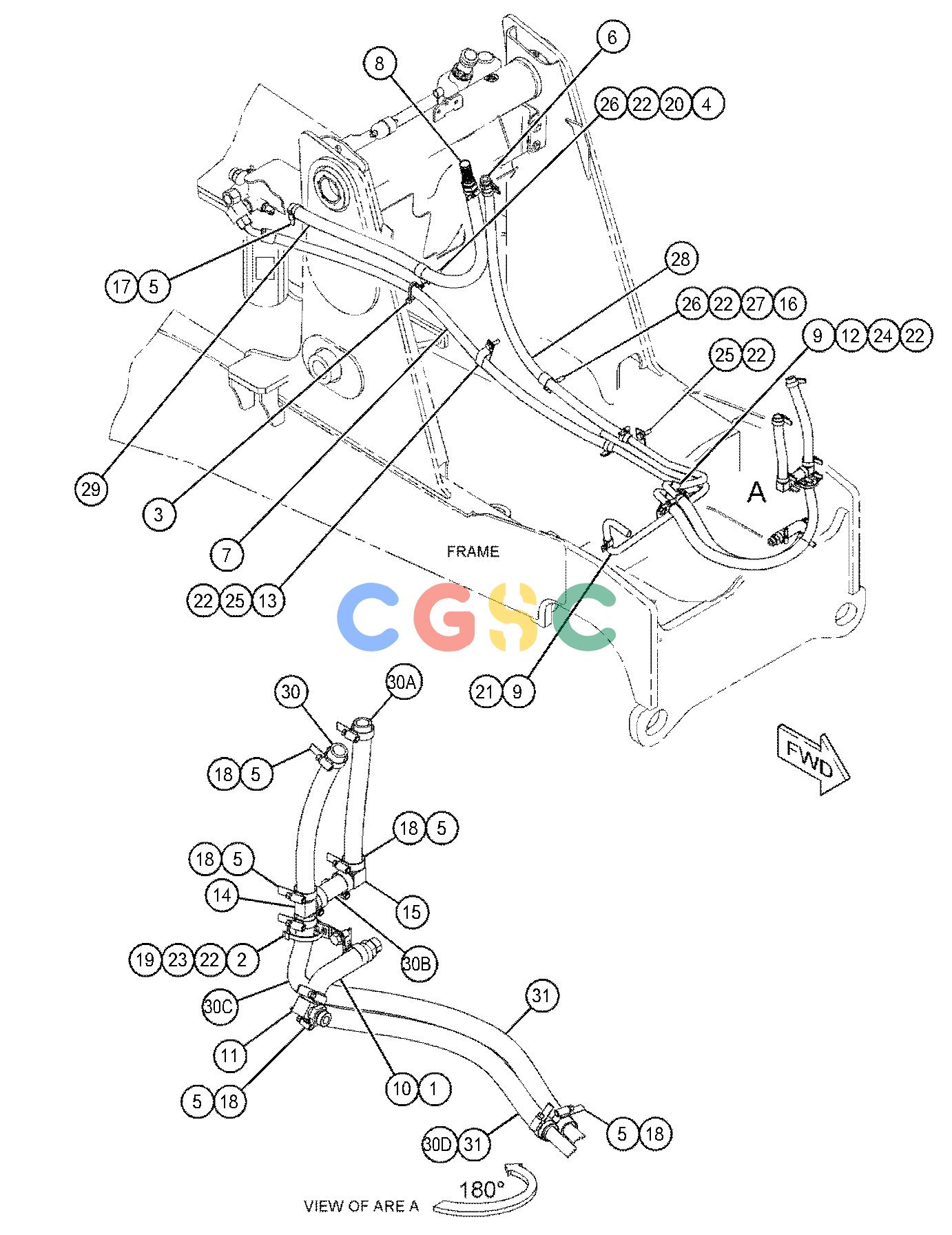

卡特零件查询（434F2） 447-1205: LINES GP-RETURN
广数供应链运营团队, 18 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9U-6992 | [1] | CONNECTOR AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 195-7930 | [1] | CONNECTOR | |
| 2. | 7K-1181 | [1] | STRAP-CABLE | |
| 3. | 205-9920 | [1] | STRAP-CABLE | |
| 4. | 233-6592 | [1] | SPACER(13X20X24-MM THK) | |
| 5. | 323-3308 | [17] | CAP | |
| 6. | 357-4621 | [1] | CONNECTOR AS | |
| | 033-6783 | [1] | FITTING | |
| | 238-5082 | [1] | SEAL-O-RING | |
| 7. | 371-1670I | [1] | HOSE AS | |
| 8. | 380-5076 | [1] | DIFFUSER AS(2-GA TO 10-GA, 3/8-IN SCREW) | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| 9. | 399-8196 | [1] | TUBE AS | |
| 10. | 447-1818 | [1] | HOSE | |
| 11. | 447-2566 | [1] | ADAPTER AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 451-0433 | [1] | ADAPTER | |
| 12. | 091-9035 | [1] | SPACER(11X25X20-MM THK) | |
| 13. | 130-9984 | [1] | CLIP(LOOP) | |
| 14. | 208-5455 | [1] | TEE | |
| 15. | 287-7306 | [1] | ELBOW | |
| 16. | 2B-0941 | [1] | SPACER(10.5X19X19-MM THK) | |
| 17. | 2S-3440 | [2] | CLAMP-HOSE | |
| 18. | 3E-7445 | [15] | CLAMP-HOSE | |
| 19. | 4P-7581 | [1] | CLIP(LADDER) | |
| 20. | 5P-7854 | [1] | CLIP(LOOP) | |
| 21. | 6D-4246 | [1] | CLIP(LOOP) | |
| 22. | 8T-4121 | [7] | WASHER-HARD(11X21X2.5-MM THK) | |
| 23. | 8T-4137M | [1] | BOLT(M10X1.5X20-MM) | |
| 24. | 8T-4182M | [1] | BOLT(M10X1.5X45-MM) | |
| 25. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 26. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| 27. | 8T-7529 | [1] | CLIP | |
| 28. | 423-1985G | | HOSE(38.6-IN) | |
| 29. | 423-1986G | | HOSE(43-IN) | |
| 30. | 262-8088E | | HOSE(29-CM) | |
| 30A. | 262-8088E | | HOSE(25-CM) | |
| 30B. | 262-8088E | | HOSE(8-CM) | |
| 30C. | 262-8088E | | HOSE(78-CM) | |
| 30D. | 262-8088E | | HOSE(56-CM) | |
| 31. | 160-2244G | | SLEEVE-ABRASION(22-IN EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
