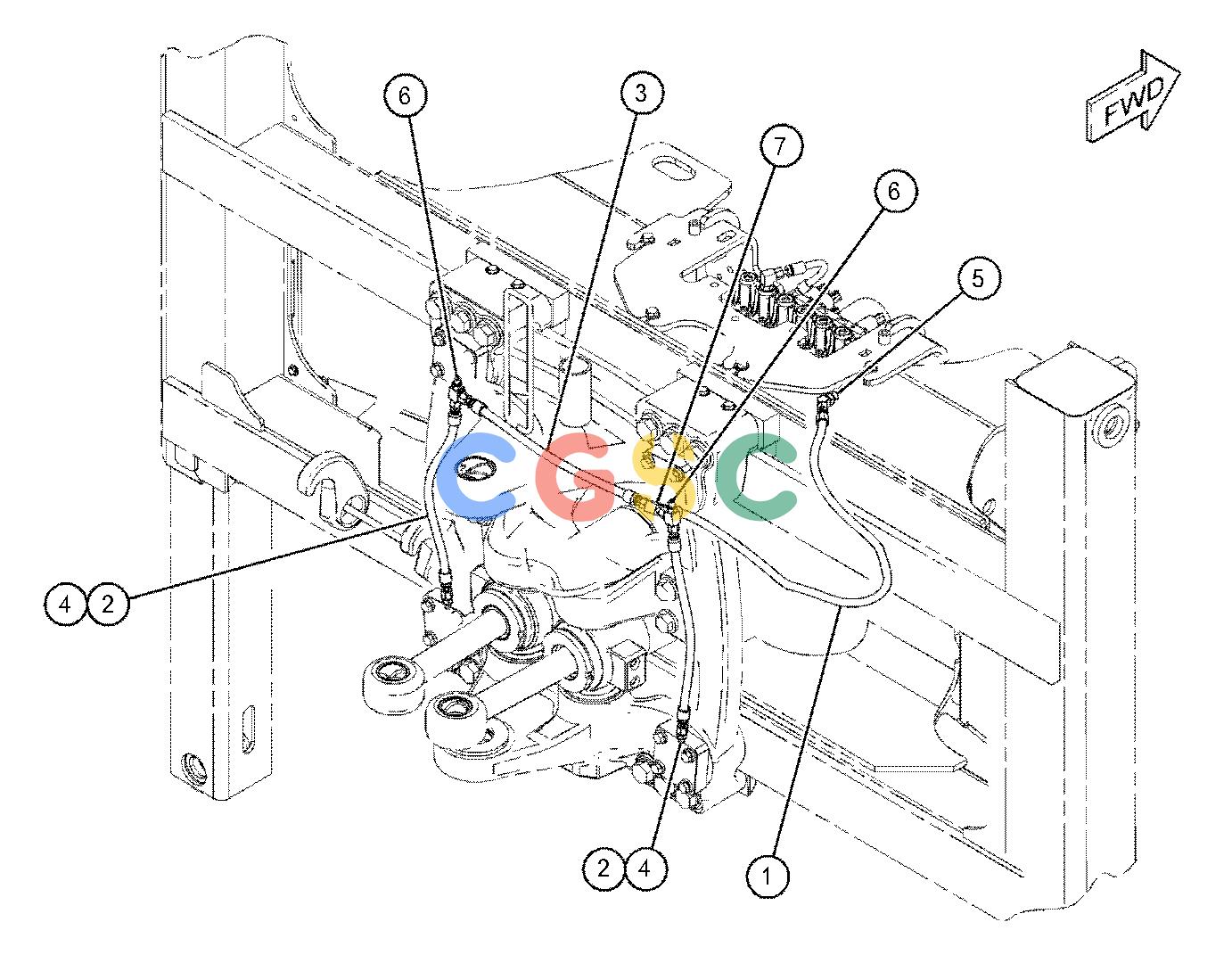

卡特零件查询（434F2） 397-1536: LINES GP-SIDESHIFT
广数供应链运营团队, 18 02月, 2025，浏览：
379 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 324-7815I | [1] | HOSE AS | |
| 2. | 324-7816I | [2] | HOSE AS | |
| 3. | 324-7817I | [1] | HOSE AS | |
| 4. | 148-8316 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 6V-8647 | [1] | CONNECTOR | |
| 5. | 150-3033 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8T-0164 | [1] | ELBOW | |
| 6. | 150-4029 | [2] | TEE AS | |
| | | | (EACH INCLUDES) |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-8780 | [1] | TEE | |
| 7. | 150-5968 | [1] | TEE AS | |
| | 4J-5477 | [2] | SEAL-O-RING | |
| | 6V-9835 | [1] | TEE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
