卡特零件查询（434F2） 387-6450: KIT-RIDE CONTROL
广数供应链运营团队, 18 02月, 2025，浏览：
946 次

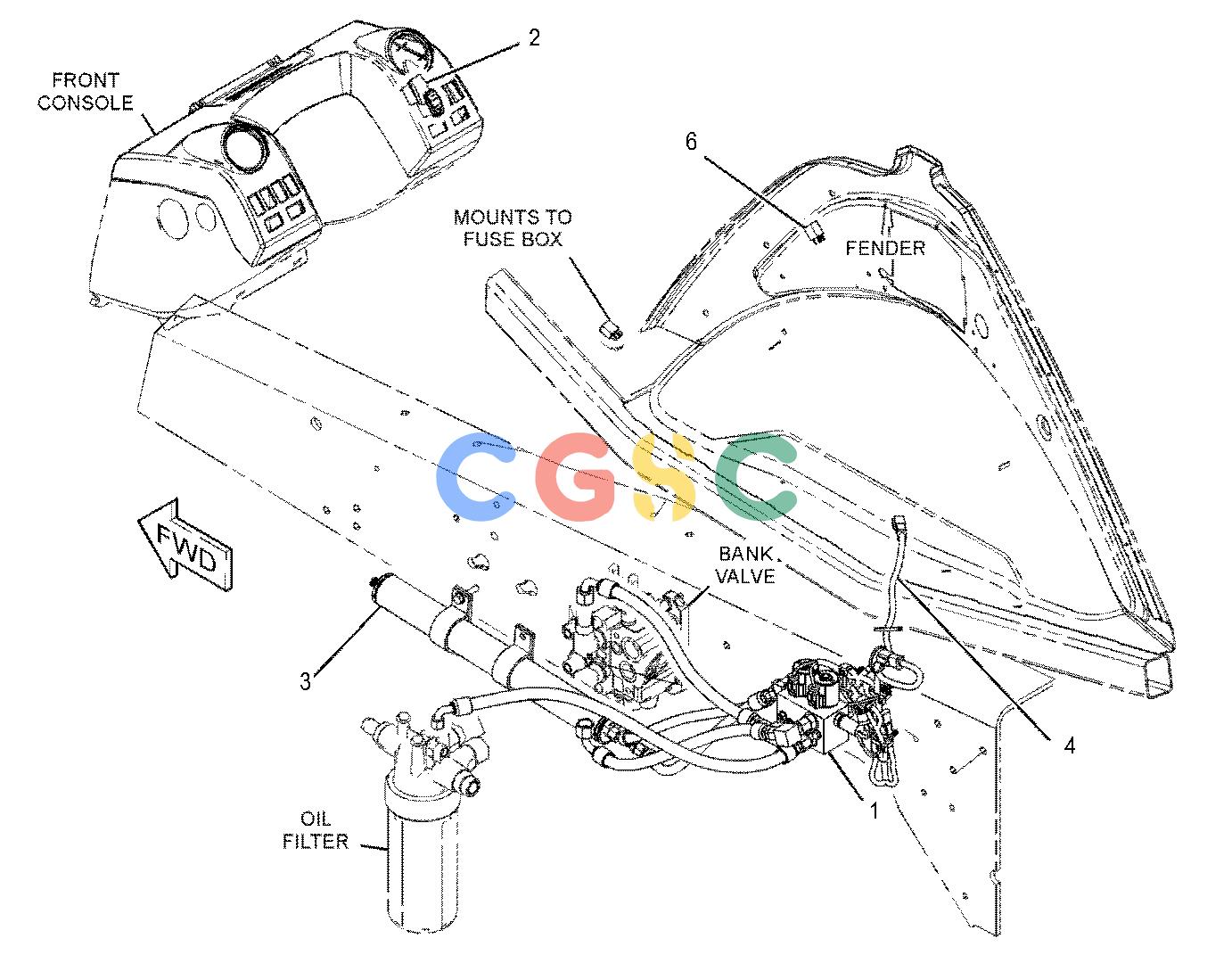

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 337-9793Y | [1] | LINES GP-RIDE CONTROL | |
| 2. | 214-4719B | [1] | SWITCH AS-ROCKER(RIDE CONTROL) | |
| 3. | 345-3674Y | [1] | ACCUMULATOR GP-RIDE CONTROL(UNCHARGED) | |
| 4. | 387-6697BY | [1] | WIRING GP-RIDE CONTROL(RELAY) | |
| 5. | 279-5016 | [1] | FILM-WARNING(HIGH PRESS CYLINDER, READ OMM) | |
| 6. | 146-9439 | [1] | RELAY AS(12-VOLT)(RIDE CONTROL) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | B | | USE AS REQUIRED |
| | Y | | SEPARATE ILLUSTRATION |
