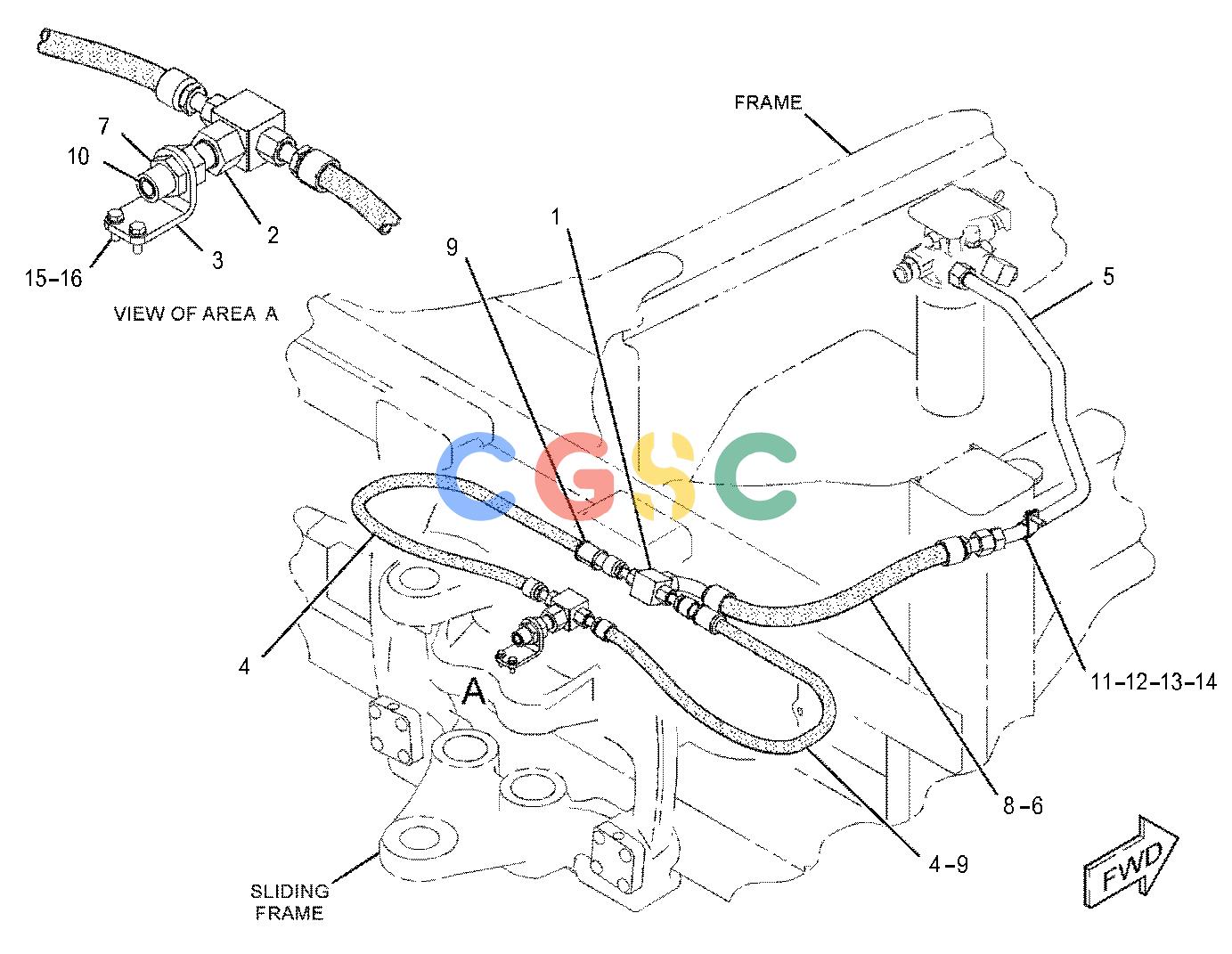

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 268-1548 | [2] | CONNECTOR AS | |
| (EACH INCLUDES) | ||||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 7J-9108 | [1] | SEAL-O-RING | ||
| 268-1547 | [1] | CONNECTOR | ||
| 2. | 324-7602I | [1] | HOSE AS | |
| 3. | 324-7603I | [1] | HOSE AS | |
| 4. | 148-8364 | [1] | ELBOW AS | |
| 3K-0360 | [1] | SEAL-O-RING | ||
| 6V-8398 | [1] | SEAL-O-RING | ||
| 6V-8625 | [1] | ELBOW | ||
| 5. | 6V-9170 | [2] | NUT-BULKHEAD(1-14-THD) | |
| I | REFER TO HYDRAULIC INFORMATION SYSTEM | |||
