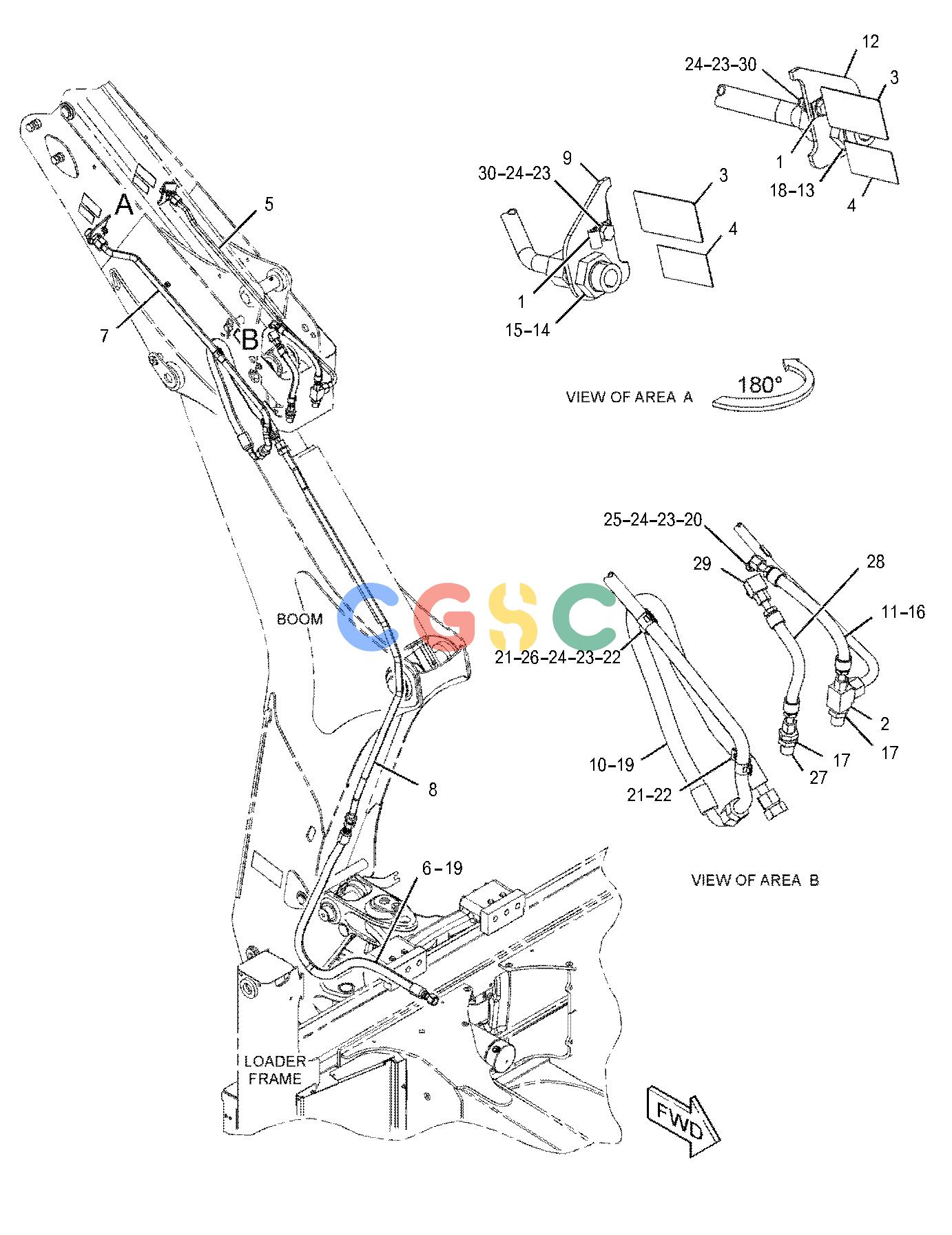

卡特零件查询（434F2） 365-3335: LINES GP-AUXILIARY HYDRAULIC
广数供应链运营团队, 18 02月, 2025，浏览：
873 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 5P-9085 | [2] | CLIP(LOOP) | |
| 2. | 241-6226 | [1] | TEE AS | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7J-9108 | [1] | SEAL-O-RING | |
| | 241-6225 | [1] | TEE | |
| 3. | 241-8450 | [2] | FILM-WARNING(HYD PRESS, READ OMM, INTL) | |
| 4. | 281-4726 | [2] | FILM-INSTRUCTION(OIL FLOW DIRECTION) | |
| 5. | 321-6387 | [1] | TUBE AS | |
| 6. | 324-7599I | [1] | HOSE AS | |
| 7. | 324-7611I | [1] | HOSE AS | |
| 8. | 327-8298 | [1] | TUBE AS | |
| 9. | 329-0143 | [1] | TUBE AS | |
| 10. | 331-3779 | [1] | PLATE | |
| 11. | 331-6299I | [1] | HOSE AS | |
| 12. | 332-1829 | [1] | PLATE | |
| 13. | 150-3052 | [1] | CONNECTOR AS | |
| | 5K-9090 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 107-6709 | [1] | CONNECTOR | |
| 14. | 150-3053 | [1] | CONNECTOR AS | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| | 7M-8485 | [1] | SEAL-O-RING | |
| | 108-3872 | [1] | CONNECTOR | |
| 15. | 2P-1293 | [1] | LOCKNUT(1-3/16-12-THD) | |
| 16. | 6V-8398 | [1] | SEAL-O-RING | |
| 17. | 6V-9170 | [1] | NUT-BULKHEAD(1-14-THD) | |
| 18. | 6V-9172 | [1] | NUT(1-7/16-12-THD) | |
| 19. | 6V-9746 | [3] | SEAL-O-RING | |
| 20. | 6V-9830 | [1] | CAP(ORFS) | |
| 21. | 8K-1117 | [1] | CLAMP | |
| 22. | 8T-1889 | [2] | CLIP(SLOT) | |
| 23. | 8T-1890 | [2] | CLIP(TAB) | |
| 24. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 25. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 26. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 27. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 28. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
